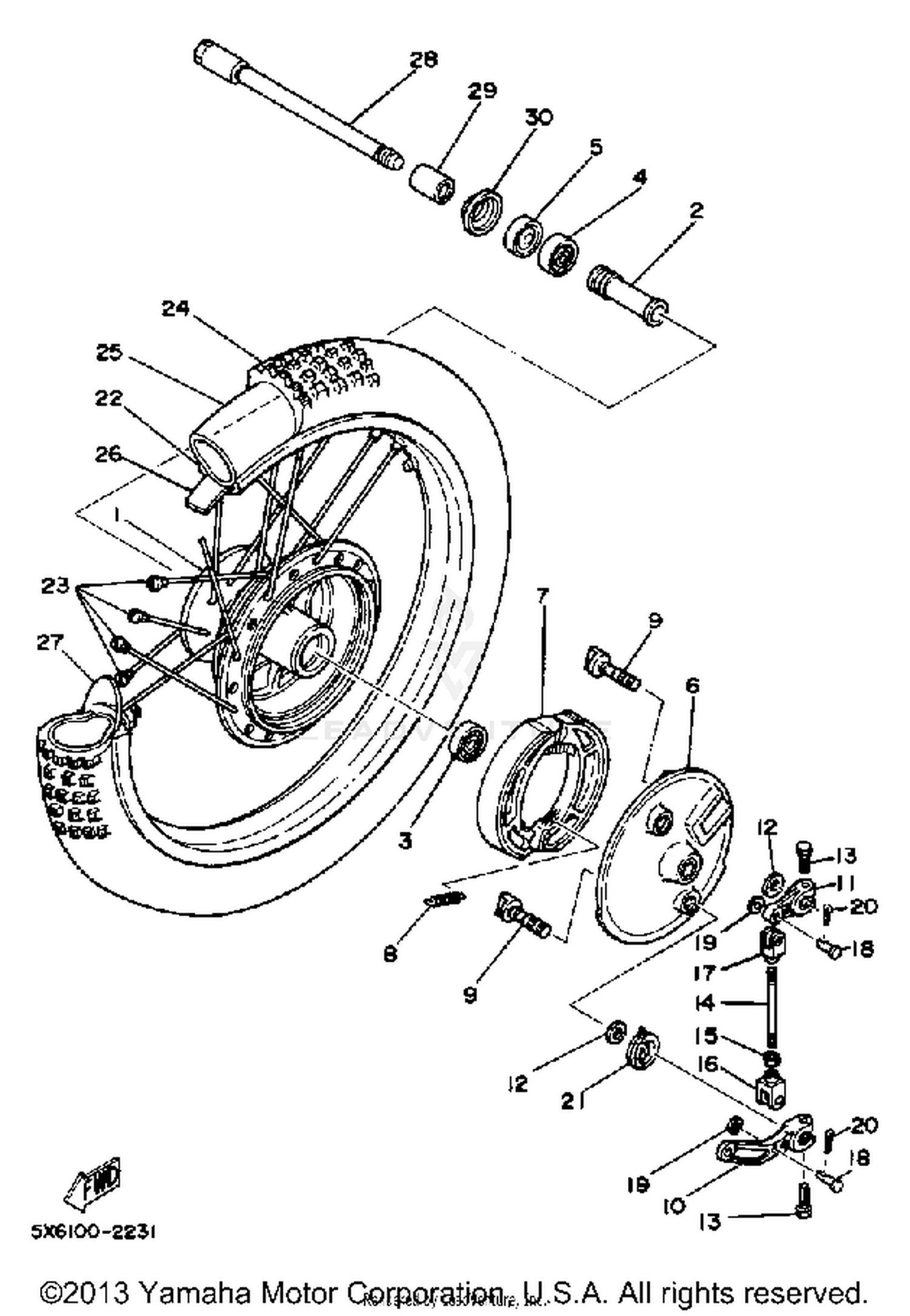

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
23X-25111-00-98
|
$187.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-15227-00
Superseded by 90560-15116-00
|
$13.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-20203-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL (SD 20-35-5)
93102-20281-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BRAKE SHOE
5X6-25121-00-98
|
$120.99 | ||
|
Unavailable |
|||
|
#7
BRAKE SHOE KIT
3R5-25130-00-00
Superseded by 4V4-W253A-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-16036-00
Superseded by 90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAMSHAFT
23X-25151-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#10
LEVER, CAMSHAFT
5X6-25155-00-00
Superseded by 99999-02061-00
|
$30.99 | ||
|
Unavailable |
|||
|
#11
LEVER, CAMSHAFT 2
5X6-25156-00-00
Superseded by 99999-02067-00
|
$13.99 | ||
|
Unavailable |
|||
|
#12
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#13
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, CONNECTING
3R5-25161-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
NUT
95301-06700-00
Superseded by 95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
END, ROD 1
3R5-25163-00-00
Superseded by 152-25163-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#17
END, ROD 2
3R5-25164-00-00
Superseded by 152-25164-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#18
PIN, CLEVIS
90240-06006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
92903-06200-00
Superseded by 92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN. COTTER
91401-20015-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TORSION
90508-20425-00
|
$3.10 | ||
|
Unavailable |
|||
|
#22
RIM 1.60-21
94416-21357-00
|
$241.99 | ||
|
Unavailable |
|||
|
#23
SPOKE SET, FRONT
23X-25104-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#24
100/90-21 M23 (TT)
94110-213A0-00
Superseded by 94110-210F9-00
|
$96.99 | ||
|
Unavailable |
|||
|
#25
TUBE (MCS 2.75/3.00-21 TR6)
94227-21123-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND,RIM (1.60-21)
94330-21084-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER, BEAD
4V5-25194-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#28
AXLE, WHEEL
3R4-25181-01-00
|
$61.99 | ||
|
Unavailable |
|||
|
#29
COLLAR
90387-15535-00
Superseded by 90387-152J3-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, HUB DUST
322-25118-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
