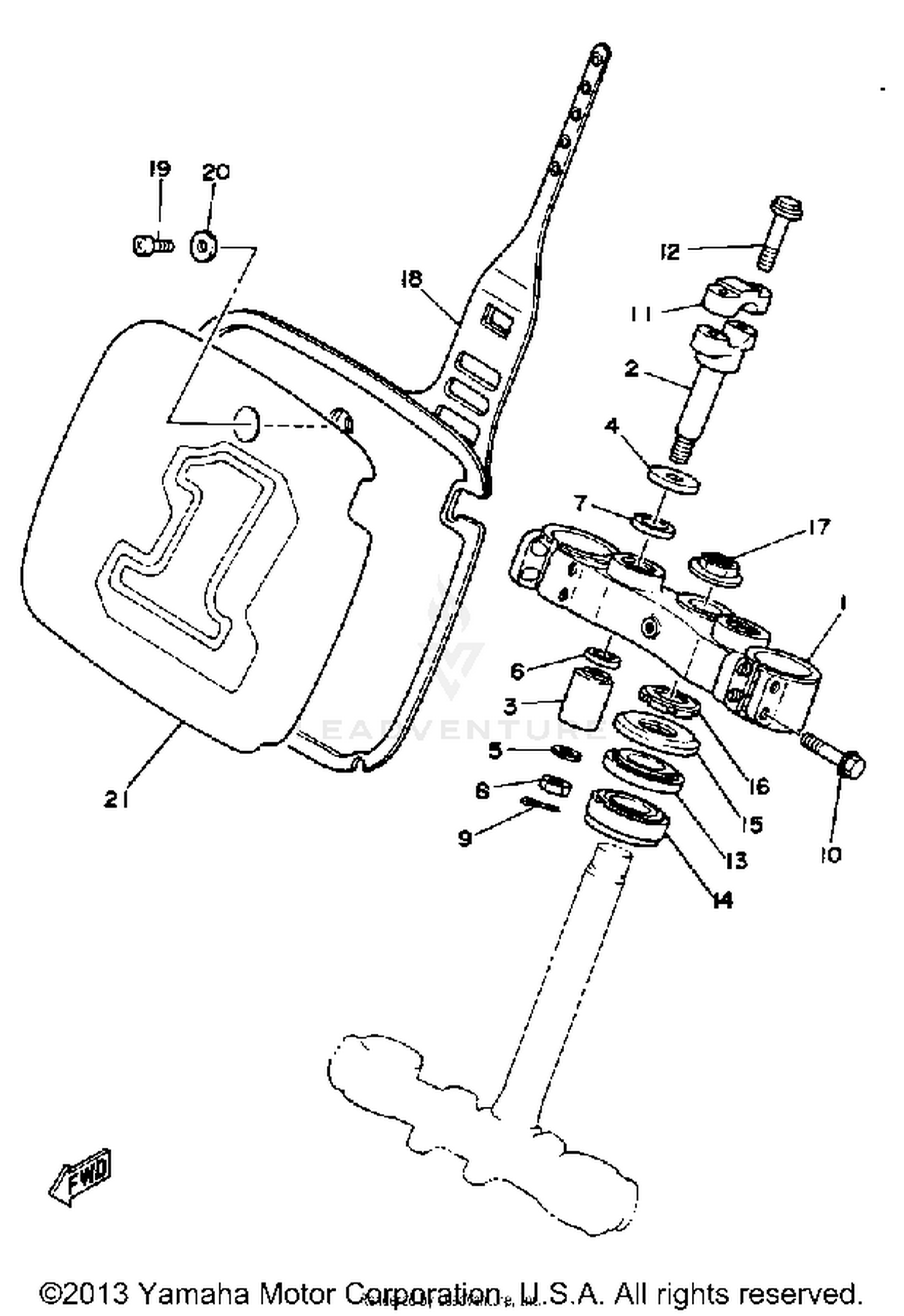

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CROWN, HANDLE
23X-23435-00-98
Superseded by 23X-W2341-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#2
HOLDER,HANDLE LWR
1E6-23442-00-00
Superseded by 4AA-23442-01-98
|
$21.26 | ||
|
Unavailable |
|||
|
#3
BUSH 1
307-22123-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-123E8-00
|
$2.80 | ||
|
Unavailable |
|||
|
#5
WASHER, PLATE
90201-104A6-00
Superseded by 90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-121E8-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90202-14077-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91401-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95821-08040-00
Superseded by 95814-08040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, HANDLE UPR (1E6-23441-0
1E6-23441-10-98
Superseded by 1E6-23441-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95821-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93332-00023-00
Superseded by 93332-00001-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93332-00008-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, BALL RACE 2
1W1-23416-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90179-22330-00
|
$12.49 | ||
|
Unavailable |
|||
|
#18
PLATE, NUMBER
5X6-23485-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
92503-06015-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
EMBLEM
5X6-23395-00-00
|
$16.52 | ||
|
Unavailable |
|||
