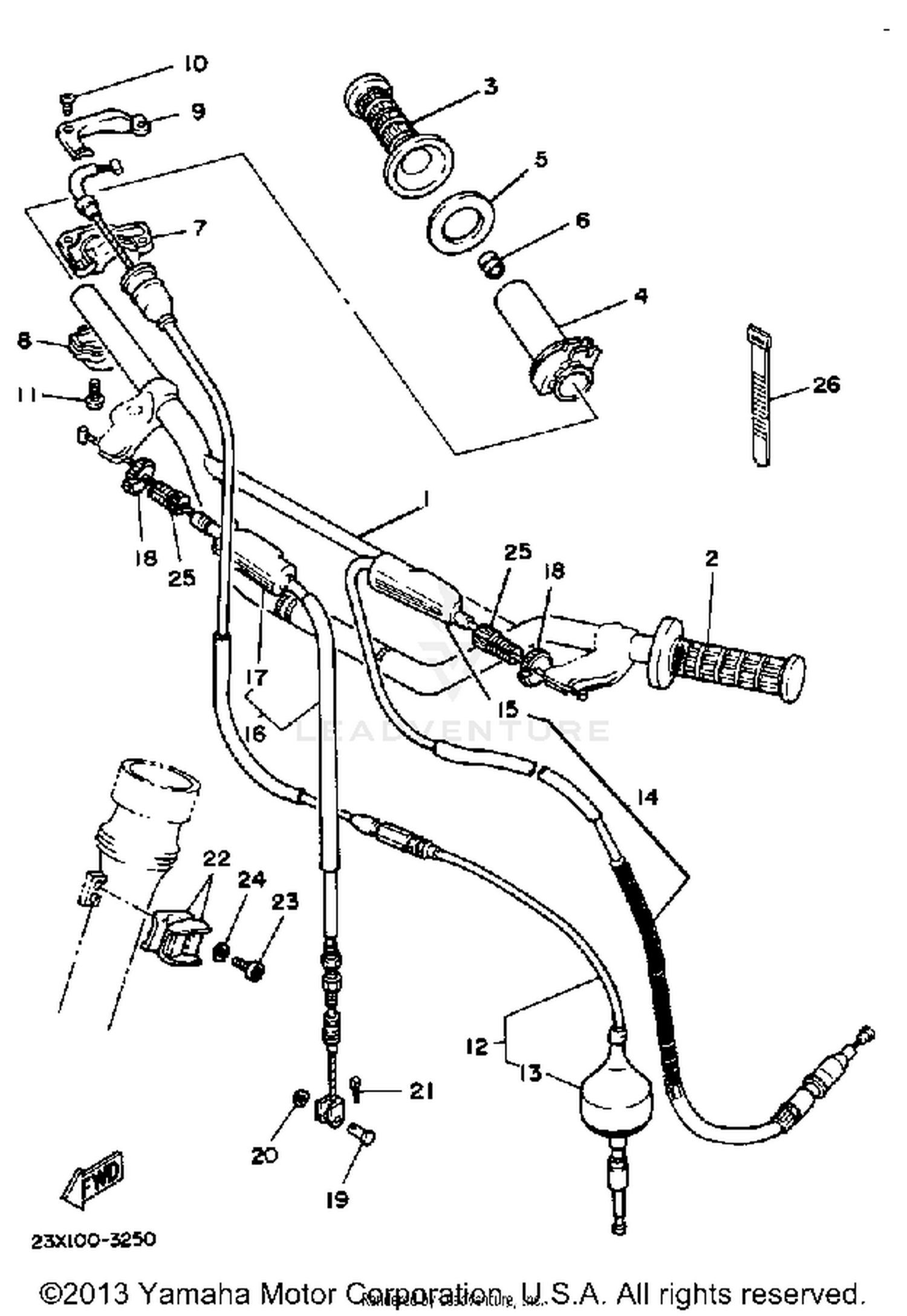

Handlebar Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
23X-26111-00-00
Superseded by 1LN-26111-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#2
GRIP (LEFT)
4V4-26241-00-00
Superseded by 1LX-26241-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP (RIGHT)
4V4-26242-00-00
Superseded by 1LX-26242-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, THROTTLE GUIDE
23X-26243-00-00
Superseded by 23X-26243-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, LEAF
1W1-26249-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
PLUG
688-82535-00-00
Superseded by 90338-12192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, GRIP UPPER
23X-26281-00-00
Superseded by 23X-26281-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, GRIP UNDER
431-26282-01-98
Superseded by 431-26282-03-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, WIRE
5X2-2628H-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, FLAT HEAD
98606-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98506-05016-00
Superseded by 98507-05016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE, THROTTLE 1
23X-26311-00-00
Superseded by 23X-26311-01-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RUBBER
510-26329-00-00
Superseded by 510-26329-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
CABLE, CLUTCH
23X-26335-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#15
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, BRAKE
5X6-26341-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#18
NUT
90179-08401-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
91701-06018-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92903-06200-00
Superseded by 92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN. COTTER
91401-20015-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90465-14192-00
Superseded by 90465-16258-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91311-06016-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90123-08090-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND, SWITCH CORD
437-83936-10-00
Superseded by 437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
