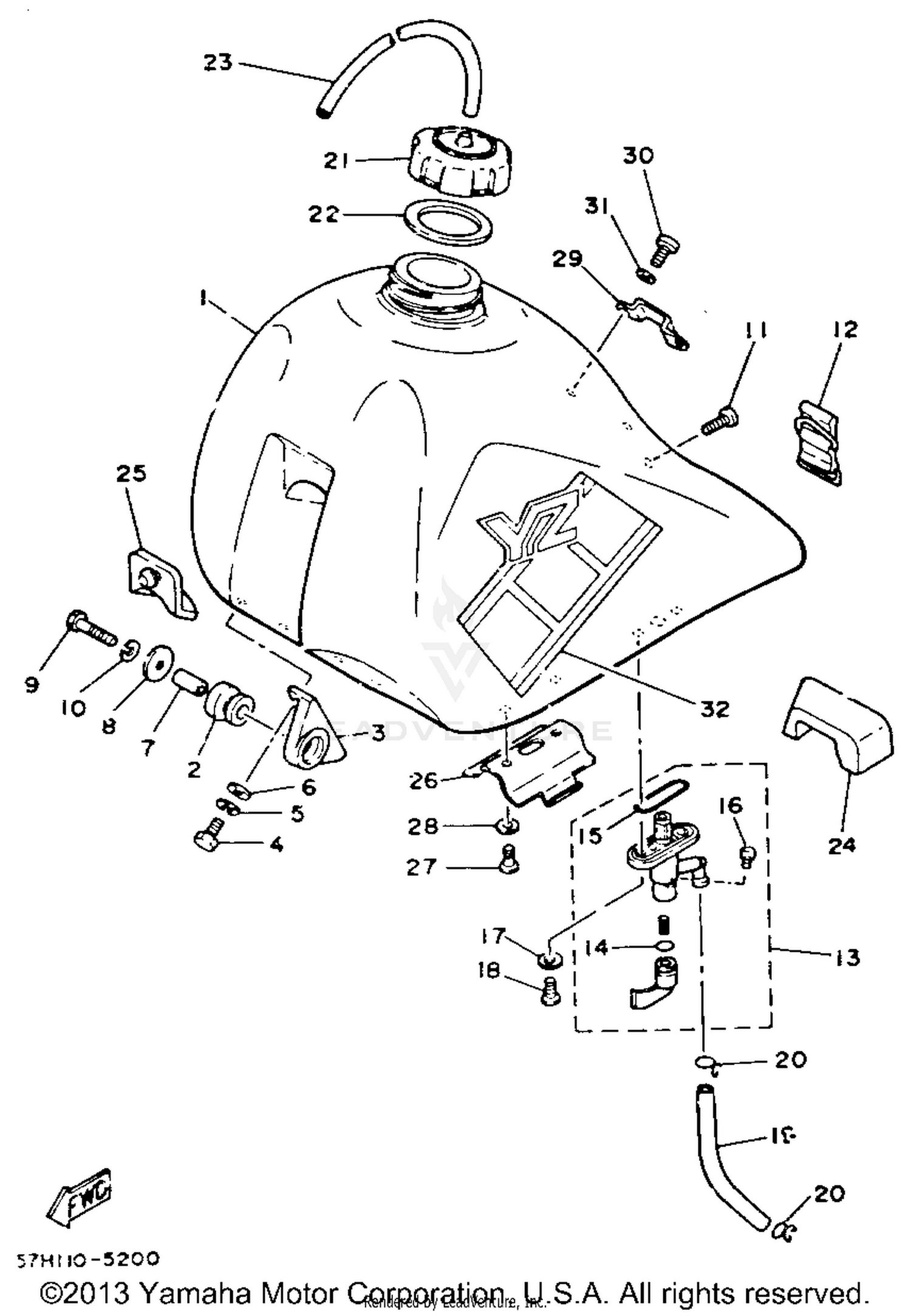

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
40T-24110-10-00
|
$230.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-18354-00
Superseded by 90480-18549-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, DAMPER
24X-24144-00-00
Superseded by 5XE-24144-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-061A5-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06387-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06697-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#11
SCREW
98903-06018-00
Superseded by 90149-06306-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, TANK FITTING 1
59V-24173-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUEL COCK ASSEMBLY 1
2K5-24500-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
214-24512-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
1A0-24512-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, LEVER FITTING
619-24535-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90202-05187-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE (L)
90445-11356-00
Superseded by 90445-112E1-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BODY, CAP
5X7-24611-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, CAP
5X7-24612-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE 5
90445-09252-00
Superseded by 5RB-24315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, LOCATING 1
39X-24181-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#25
DAMPER, LOCATING 4
23X-24184-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#26
STAY, CHAMBER
5X6-2415F-01-00
Superseded by 4AA-2415F-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-061A5-00
|
$6.99 | ||
|
Unavailable |
|||
|
#29
BRACKET, SEAT
40T-2412F-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-061A5-00
|
$6.99 | ||
|
Unavailable |
|||
|
#32
GRAPHIC SET
57H-24250-11-00
|
$45.99 | ||
|
Unavailable |
|||
