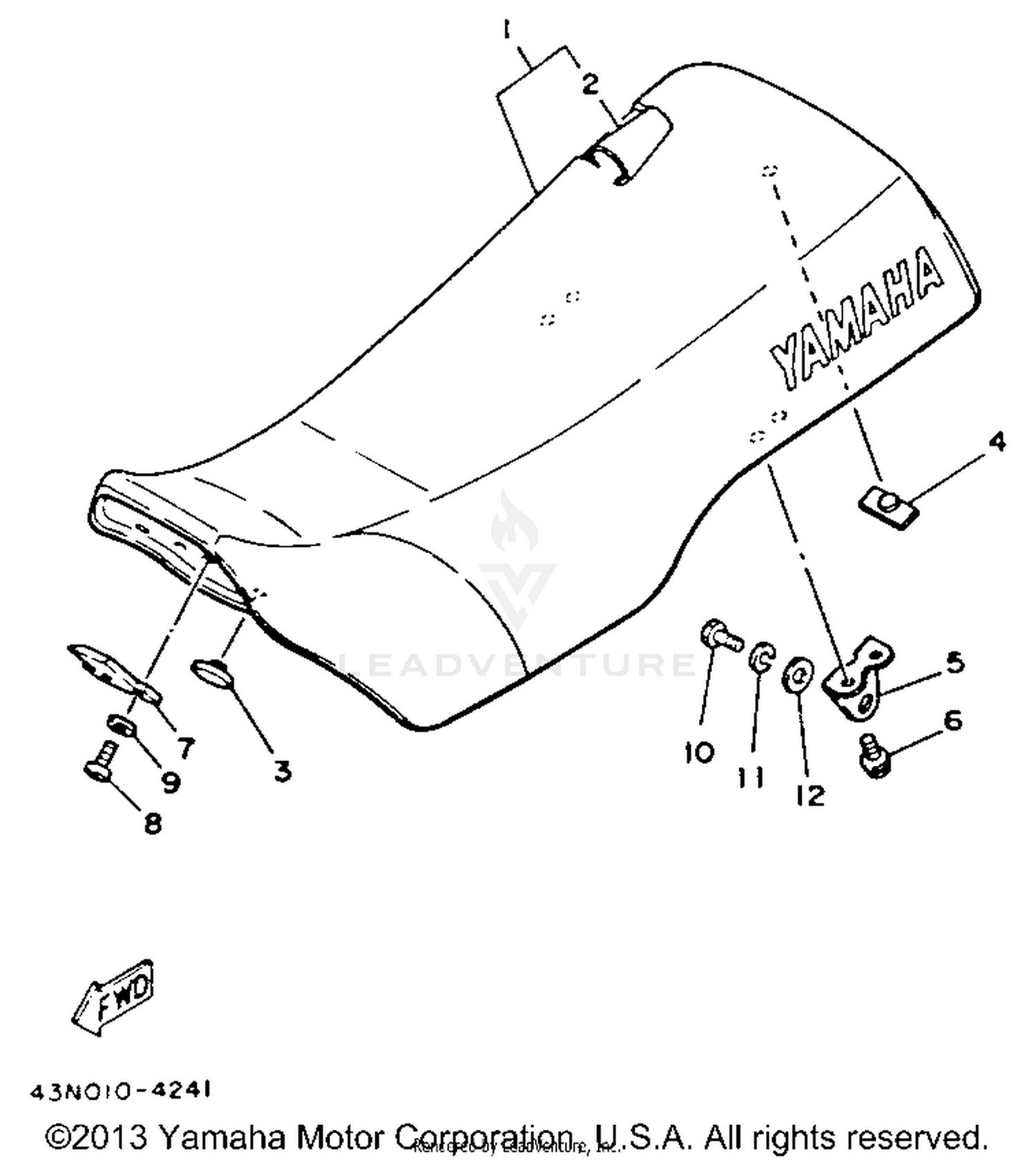

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEMI-DBL-SEAT ASSEMBLY
39X-W2473-20-00
|
$186.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
23X-24731-20-00
|
$96.99 | ||
|
Unavailable |
|||
|
#3
PAD, SEAT
22W-24741-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, SEAT
509-24724-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT
39W-24738-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT
5X6-24748-10-00
|
$9.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-061A5-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
