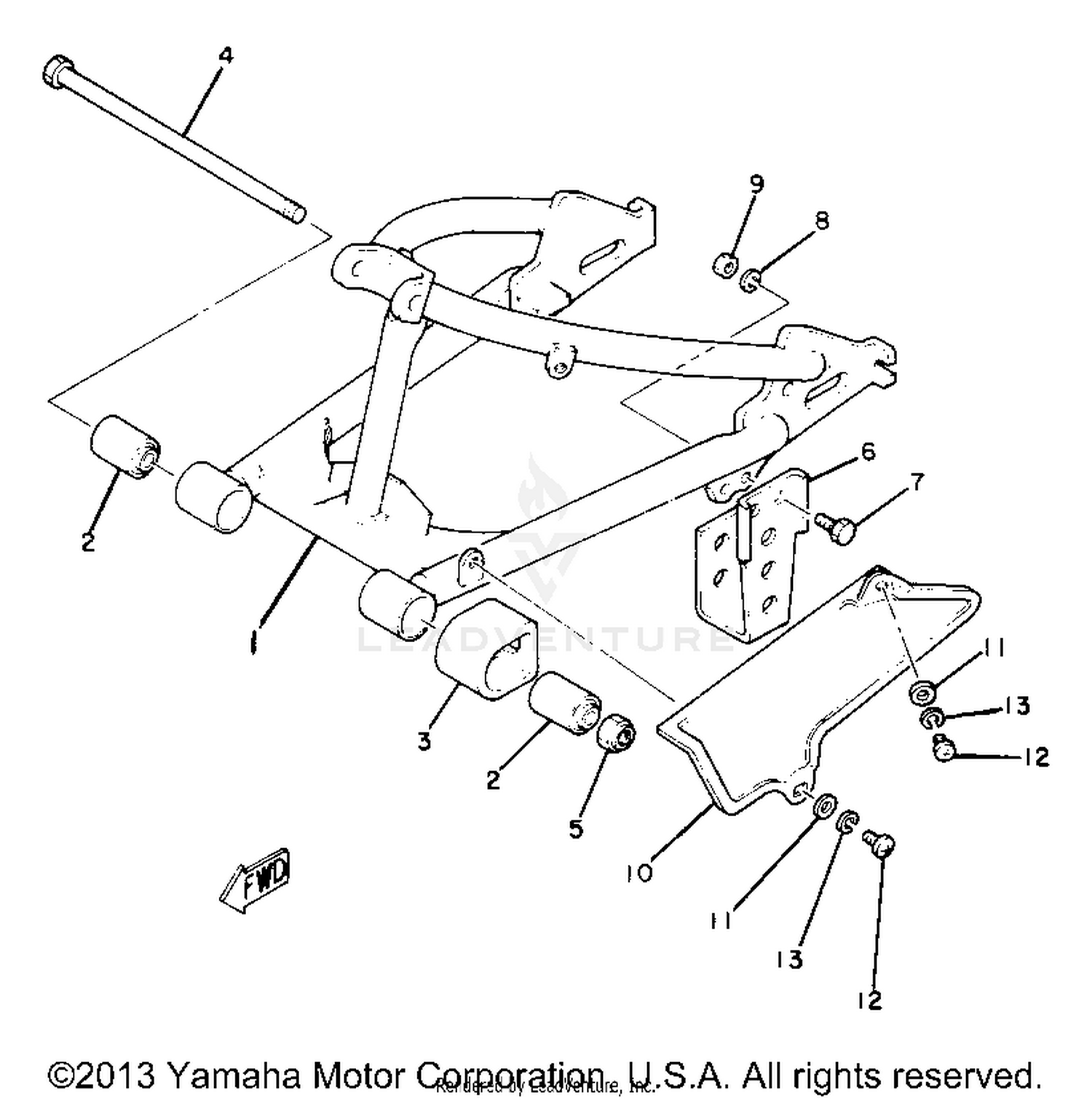

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
3R0-22110-00-33
|
$118.99 | ||
|
Unavailable |
|||
|
#2
BUSH 1
102-22123-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, GUARD
3R0-22151-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, PIVOT
288-22141-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
90185-10037-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUARD, CHAIN
492-22153-00-33
|
$19.99 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, CHAIN
3R0-22311-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-05029-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
