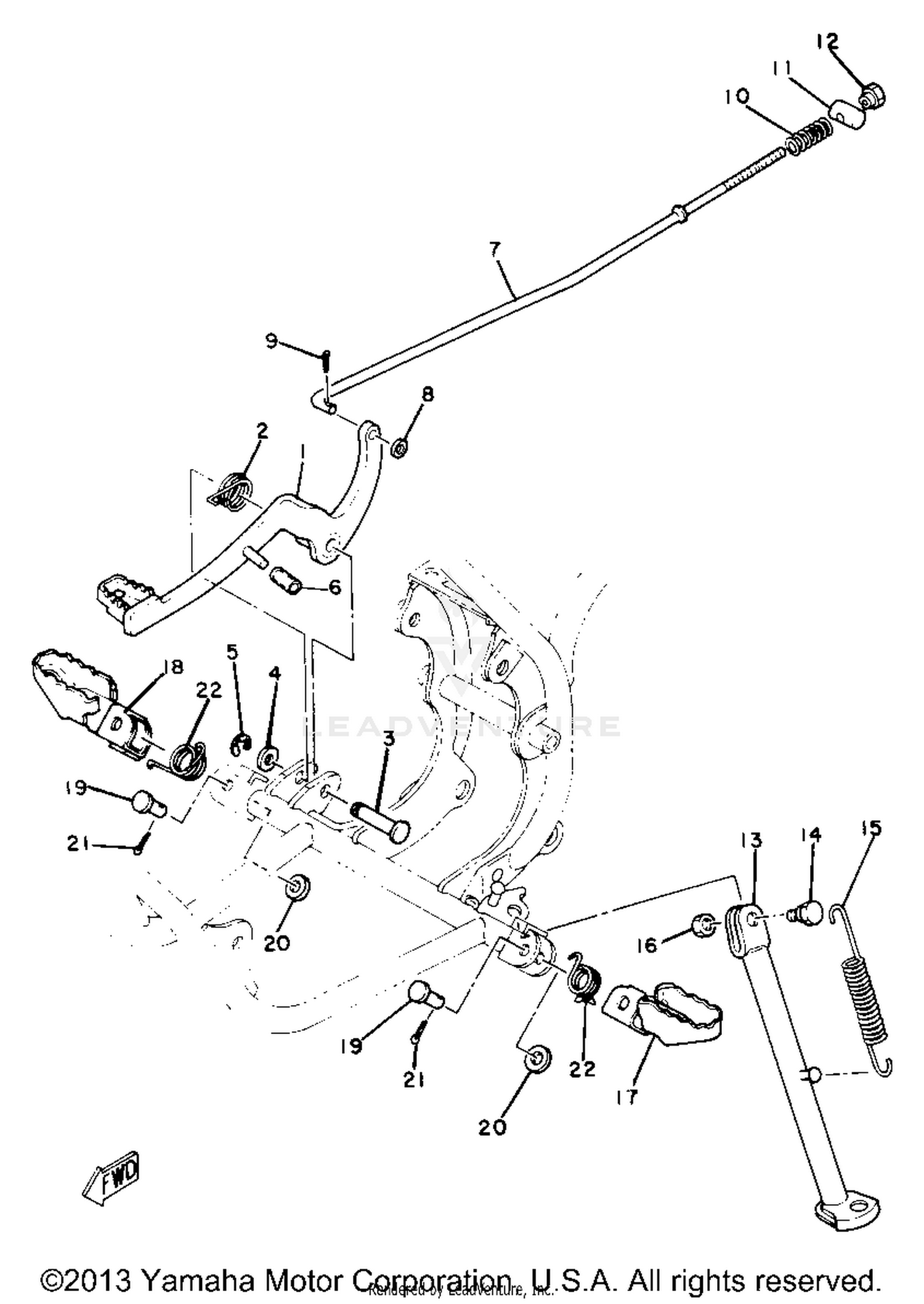

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
3R0-27211-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TORSION
90508-29406-00
|
$4.35 | ||
|
Unavailable |
|||
|
#3
PIN, SPEC''L SHAPE
90249-10138-00
|
$3.59 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
92990-10600-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99001-08600-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE
90445-07358-00
|
$0.21 | ||
|
Unavailable |
|||
|
#7
ROD, BRAKE
3R0-27231-00-00
|
$7.94 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
90501-10245-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
90249-12008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90179-06411-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAND, SIDE
462-27311-02-00
|
$33.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90109-08063-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TENSION
90506-26270-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOOTREST 1
2J5-27411-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#18
FOOTREST 2
2J5-27421-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#19
PIN
91701-08038-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
