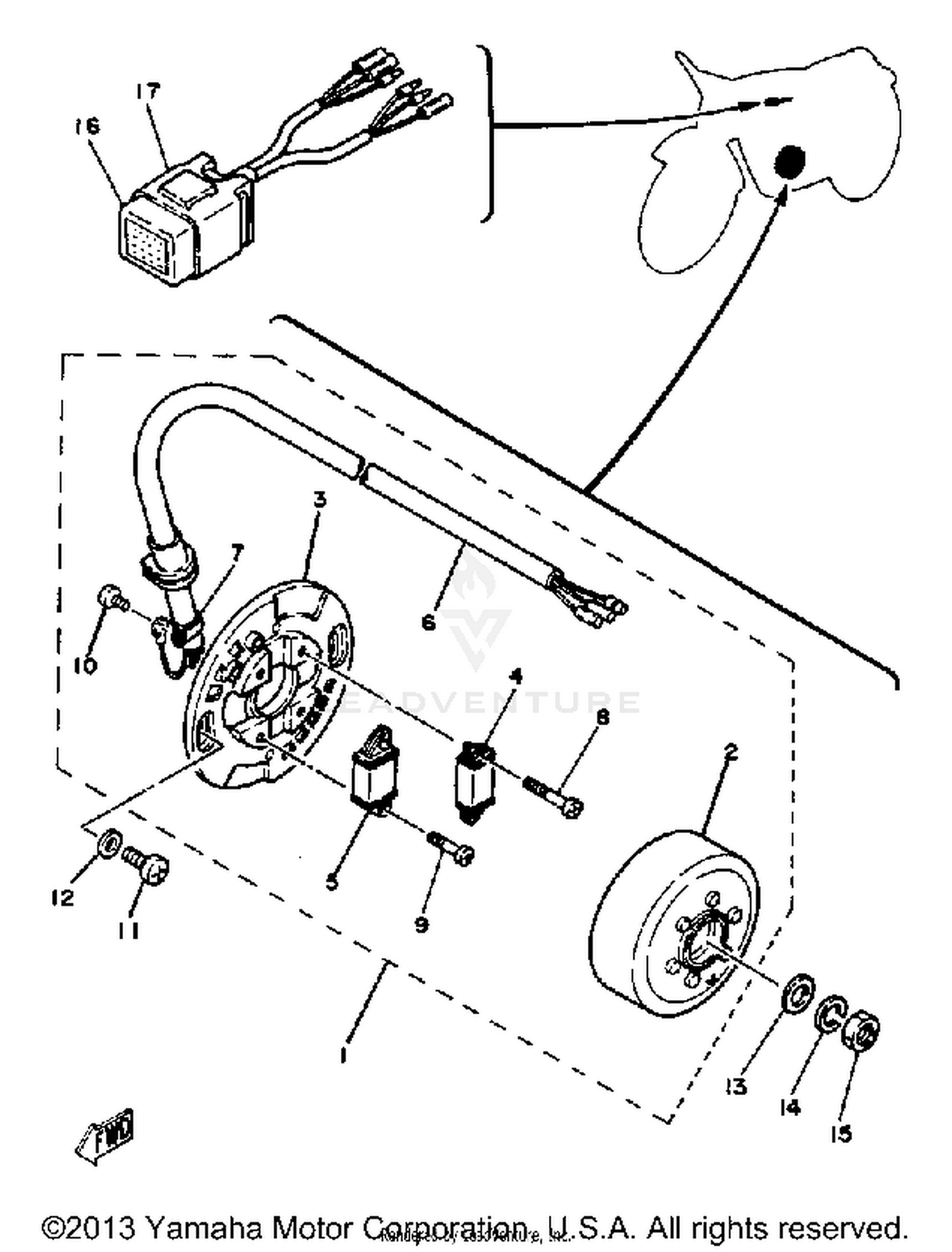

C - D - I - Magneto - Yz60j - K Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
5X1-85500-20-00
|
$376.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
4V0-85550-20-00
|
$117.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
4V0-85509-20-00
|
$63.70 | ||
|
Unavailable |
|||
|
#4
COIL SOURCE 2
4V0-85512-20-00
|
$71.32 | ||
|
Unavailable |
|||
|
#5
COIL, PULSER
4V0-85580-20-00
|
$122.99 | ||
|
Unavailable |
|||
|
#6
LEAD WIRE ASSEMBLY
5X1-85515-20-00
|
$38.99 | ||
|
Unavailable |
|||
|
#7
CLAMP
104-81328-20-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98511-04025-00
Superseded by 98517-04025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95311-10600-00
Superseded by 95314-10600-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
CDI UNIT ASSEMBLY
5X1-85540-20-00
|
$147.99 | ||
|
Unavailable |
|||
|
#17
BAND
2A7-85546-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
