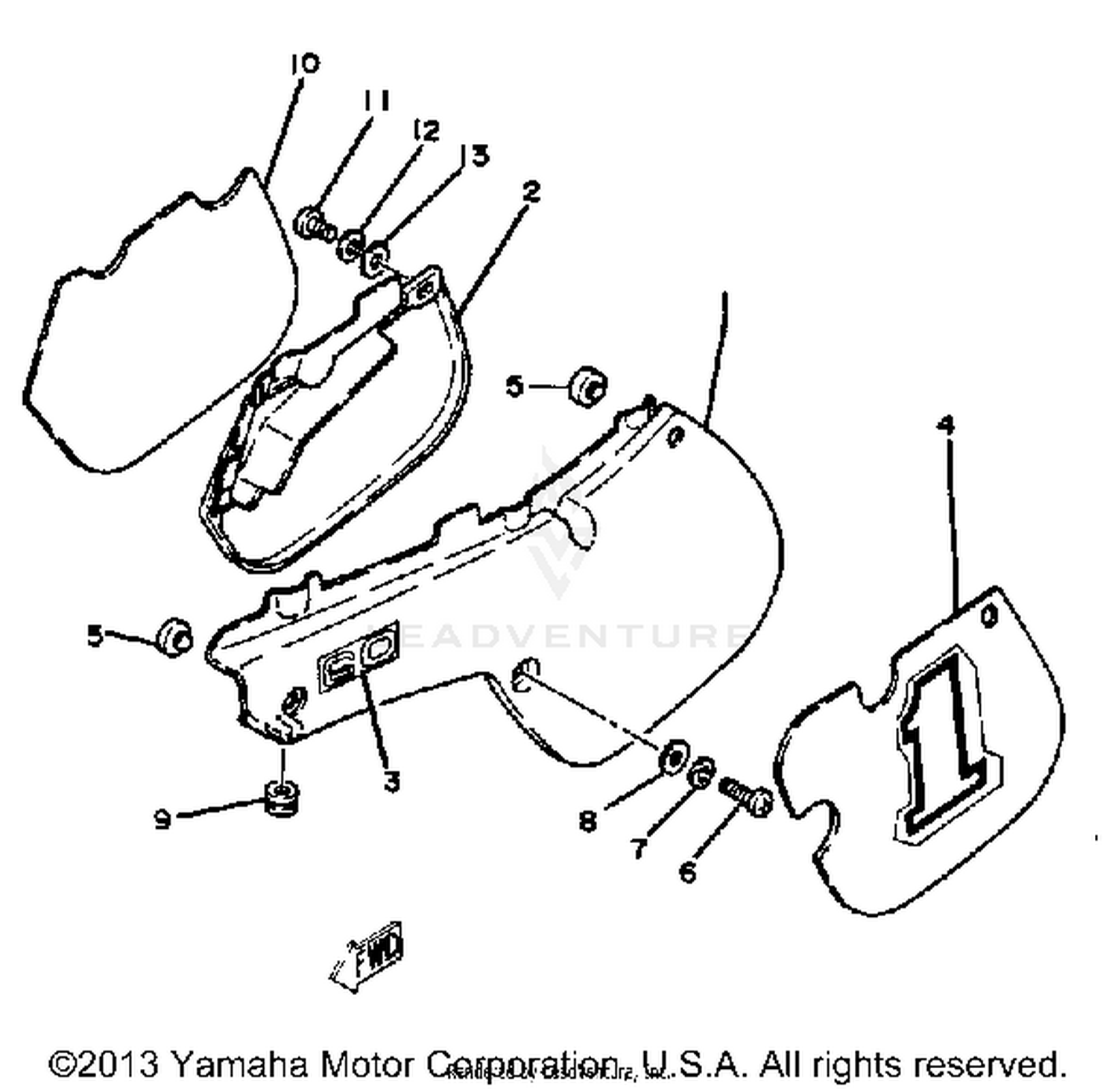

Side Cover - Yz60j - K Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
5X1-21711-00-00
|
$85.99 | ||
|
Unavailable |
|||
|
#2
COVER, SIDE 2
5X1-21721-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
4V0-21781-00-00
Superseded by 5X1-21781-00-00
|
$2.80 | ||
|
Unavailable |
|||
|
#4
EMBLEM 3
5X1-21783-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
EMBLEM 4
5X1-21784-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Unavailable |
|||
