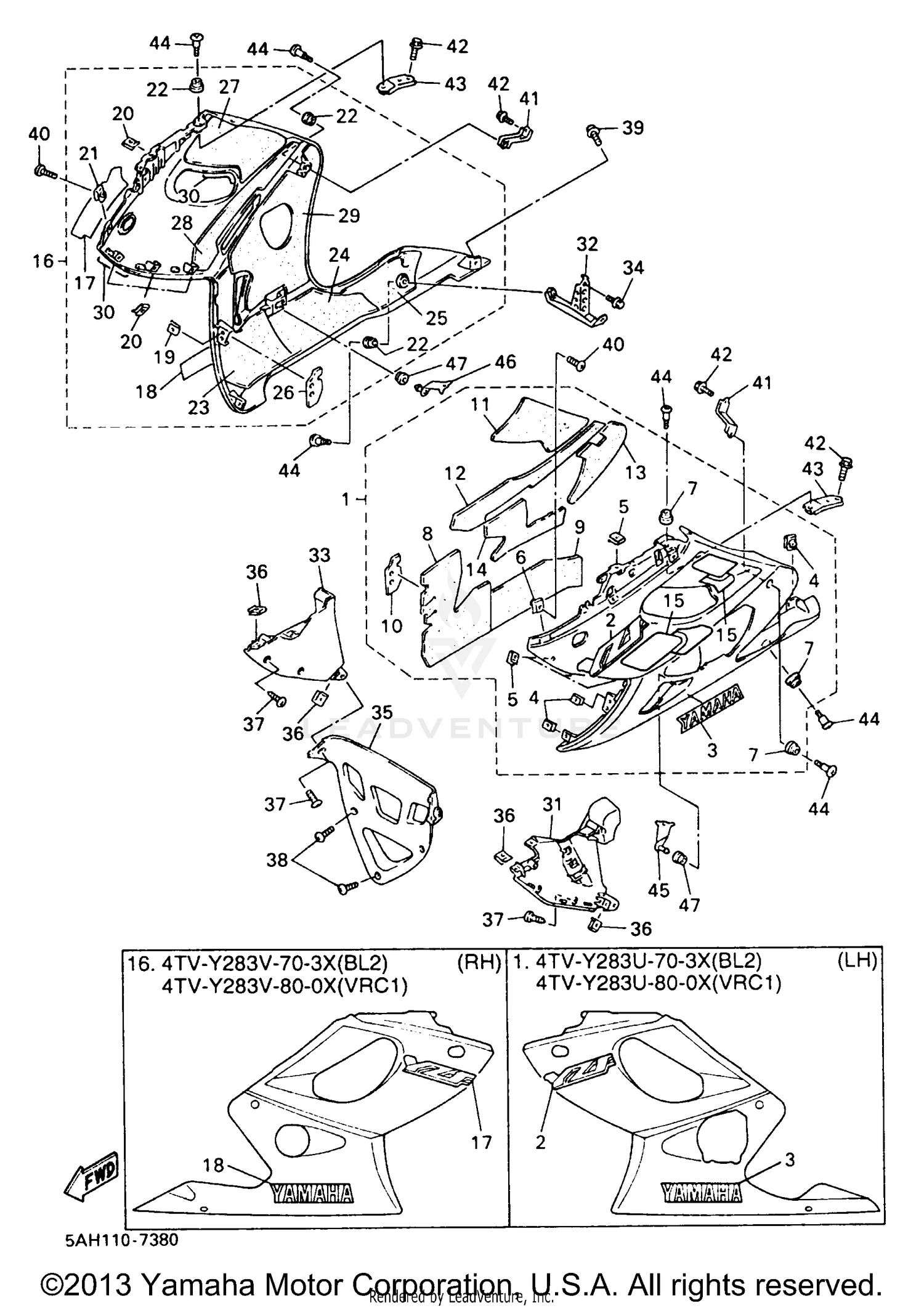

Cowling 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL ASSY 1
4TV-Y283U-60-P3
Superseded by 4TV-W283U-60-P3
|
$780.99 | ||
|
Unavailable |
|||
|
#
PANEL ASSEMBLY 1
4TV-Y283U-70-3X
|
$489.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PANEL ASSY 1
4TV-Y283U-80-0X
Superseded by 4TV-W283U-80-0X
|
$800.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC 1
4WF-28391-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC 1
4WF-28391-30-00
|
$32.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC 1
4WF-28391-40-00
|
$40.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM, YAMAHA
99231-00280-00
Superseded by 99241-00280-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
99234-00280-00
Superseded by 99244-00280-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SPRING
90183-05074-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SPRING
90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05073-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT 3
4TV-2848L-03-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT 5
4TV-2848N-02-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT 7
4TV-2848R-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER 2
4TV-28227-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
4TV-2834F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER 5
4TV-2837J-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER 6
4TV-2837K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GRAPHIC SET, LOWER COVER 1
5AH-28301-00-00
|
$322.99 | ||
|
Unavailable |
|||
|
#16
PANEL ASSEMBLY 2
4TV-Y283V-80-0X
Superseded by 4TV-W283V-80-0X
|
$738.99 | ||
|
Unavailable |
|||
|
#
PANEL 2
4TV-Y283V-70-3X
Superseded by 4TV-W283V-70-3X
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PANEL 2
4TV-Y283V-60-P3
Superseded by 4TV-W283V-60-P3
|
$783.99 | ||
|
Unavailable |
|||
|
#17
GRAPHIC 2
4WF-28392-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC 2
4WF-28392-30-00
|
$37.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC 2
4WF-28392-40-00
|
$36.99 | ||
|
Unavailable |
|||
|
#18
EMBLEM, YAMAHA
99231-00280-00
Superseded by 99241-00280-00
|
$13.99 | ||
|
Unavailable |
|||
|
#
EMBLEM, YAMAHA
99234-00280-00
Superseded by 99244-00280-00
|
$23.99 | ||
|
Unavailable |
|||
|
#19
NUT, SPRING
90183-05074-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
NUT, SPRING
90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
NUT, SPRING
90183-05073-00
|
$11.49 | ||
|
Unavailable |
|||
|
#22
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
SEAT 2
4TV-2848K-03-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAT 4
4TV-2848M-02-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAT
4TV-2848H-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAT 6
4TV-2848P-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER 1
4TV-28217-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER 1
4TV-2834E-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER
4TV-28371-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GRAPHIC SET, LOWER COVER 2
5AH-28303-00-00
|
$287.99 | ||
|
Unavailable |
|||
|
#31
BODY, FRONT LOWER 1
4TV-2835J-00-P3
|
$162.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT LOWER 1
4TV-2835J-00-P0
|
$157.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT LOWER
4TV-2835J-00-4B
Superseded by 4TV-2835J-00-P8
|
$157.99 | ||
|
Unavailable |
|||
|
#32
STAY, SUPPORT 1
4JH-2831T-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BODY, FRONT UNDER 2
4TV-2835K-00-P3
|
$159.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT LOWER
4TV-2835K-00-4B
Superseded by 4TV-2835K-00-P8
|
$159.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT LOWER 2
4TV-2835K-00-P0
|
$159.99 | ||
|
Unavailable |
|||
|
#34
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, LOWER
4TV-28385-00-4B
|
$265.99 | ||
|
Unavailable |
|||
|
#
COVER, LOWER
4TV-28385-00-P0
|
$293.99 | ||
|
Unavailable |
|||
|
#
COVER, LOWER
4TV-28385-00-P3
|
$227.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SPRING
90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#37
SCREW, TAPPING
97704-50016-00
Superseded by 97780-50016-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, BINDING
90154-05059-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, WITH WASHER
90159-05065-00
Superseded by 90159-05073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, BINDING
90154-05059-00
|
$8.49 | ||
|
Unavailable |
|||
|
#41
STAY, SIDE 1
4JH-2832U-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Unavailable |
|||
|
#43
BRACKET 5
4TV-2836H-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, ROUND HEAD
90150-06036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET 3
4JH-2836F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BRACKET 4
4JH-2836G-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
GROMMET
90480-01531-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
