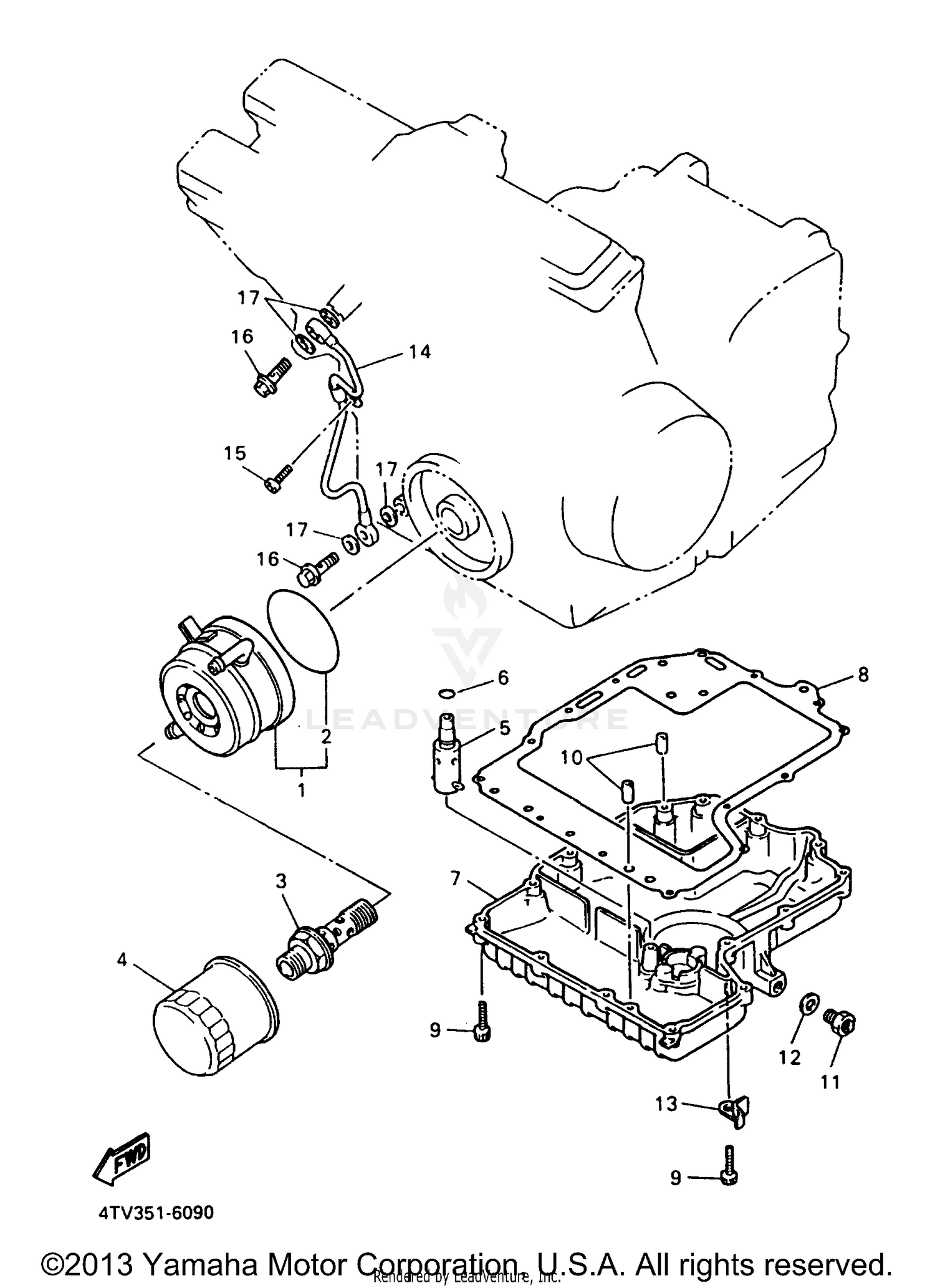

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL COOLER ASSEMBLY
4TV-13470-00-00
|
$341.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
4JH-13473-00-00
Superseded by 5JW-13473-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, UNION
90401-20165-00
|
$14.10 | ||
|
Unavailable |
|||
|
#4
ELEMENT ASSY, OIL CL
3FV-13440-00-00
Superseded by 3FV-13440-30-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RELIEF VALVE ASSY
4G0-13490-01-00
Superseded by 11H-13490-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, STRAINER
4JH-13417-00-00
Superseded by 4YR-13417-00-00
|
$203.99 | ||
|
Unavailable |
|||
|
#8
GASKET, STRAINER COVER
4TV-13414-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-10306-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, DELIVERY 1
3HE-13161-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91317-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, UNION
90401-10106-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
90430-10188-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
