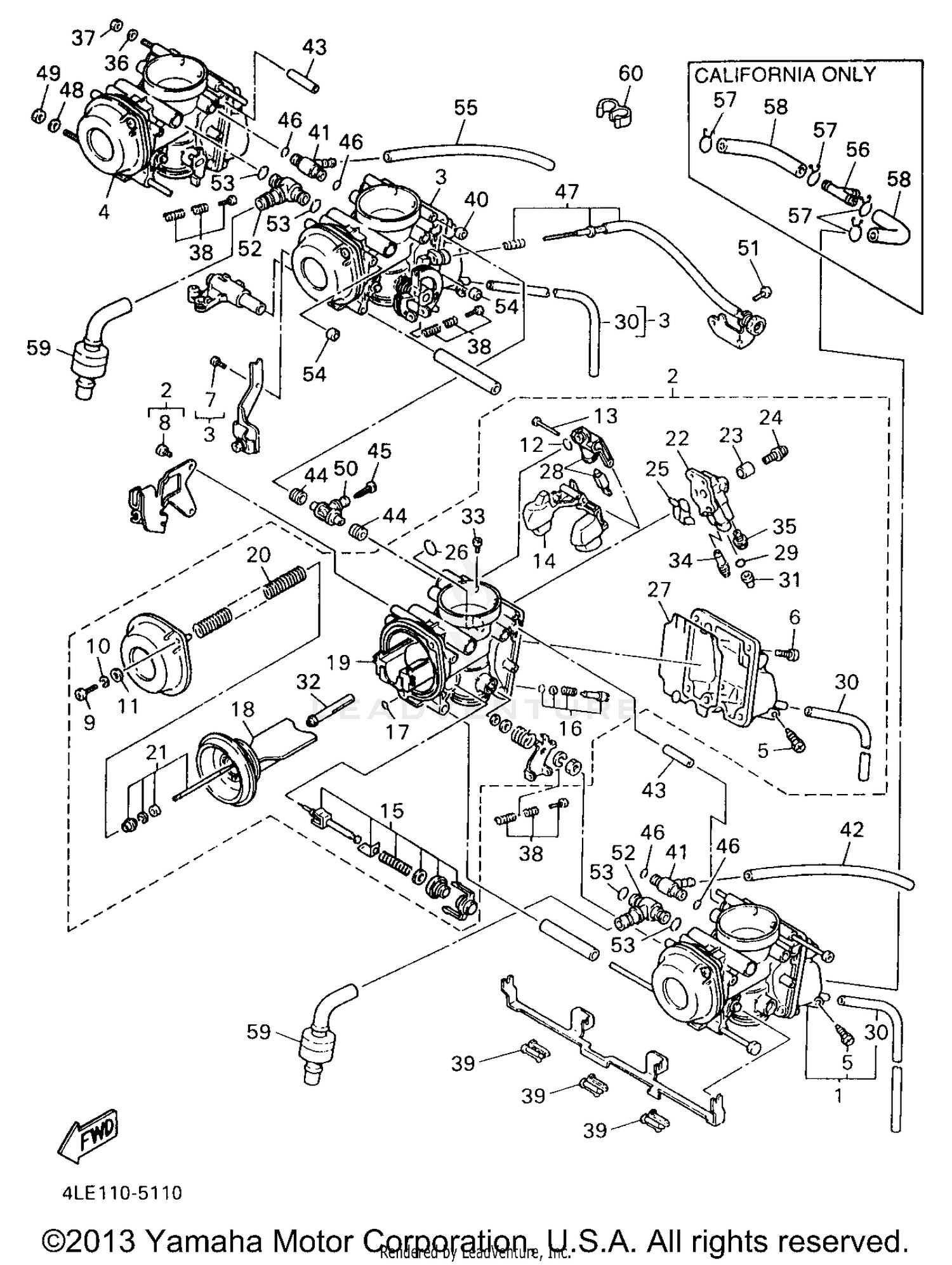

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4LE-14901-20-00
|
$492.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 1
4LE-14901-30-00
|
$492.99 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 2
4LE-14902-20-00
|
$559.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 2
4LE-14902-30-00
|
$528.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 3
4LE-14903-20-00
|
$704.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 3
4LE-14903-30-00
|
$704.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSEMBLY 4
4LE-14904-20-00
|
$704.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 4
4LE-14904-30-00
|
$704.99 | ||
|
Unavailable |
|||
|
#5
PLUG, DRAIN
12R-14191-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98586-05016-00
Superseded by 90157-05M19-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
3EN-14147-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, FLOAT
53L-14186-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLOAT
3GM-14985-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STARTER SET
3EN-1410A-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PILOT SCREW SET
12R-14105-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
3FV-14147-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DIAPHRAGM ASSEMBLY
3GM-14940-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BLOCK, JET
3GM-1411E-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, DIAPHRAGM
3LD-14933-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#21
NEEDLE SET
4LE-1490J-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#22
BLOCK JET ASSEMBLY
4HD-1411A-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#23
WASHER, MAIN JET
3GM-14153-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
4HD-14565-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
3LF-14147-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
1AE-14147-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL
3GM-14997-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NEEDLE VALVE SET
3GM-14107-10-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
3LD-14147-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE
3LK-14987-00-00
Superseded by 3JE-14197-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, MAIN (#122.5)
3LD-1414A-75-00
|
$5.00 | ||
|
Unavailable |
|||
|
#32
NOZZLE, MAIN
3GM-14141-08-00
|
$18.49 | ||
|
Unavailable |
|||
|
#33
JET, MAIN (#122.5)
830-1414A-75-00
|
$3.55 | ||
|
Unavailable |
|||
|
#34
JET, PILOT (# 35)
4HR-14142-35-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
JET, MAIN (# 57.5)
620-1423A-62-00
|
$5.99 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
STOP SCREW SET
3EN-1490K-00-00
Superseded by 4KM-1490K-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOLDER
3EN-14261-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#40
RING
3GM-14918-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
NIPPLE
17A-14251-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIPE
3FV-14197-00-00
Superseded by 3LF-14197-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#
PIPE
3GM-14197-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#43
PIPE, STARTER CONNECTING
4HD-14988-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#44
SEAL
3EN-14997-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
NET, FILTER
1KT-14994-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
O-RING
822-14147-00-00
Superseded by 36Y-14147-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
THROTTLE SCREW SET
3GM-14103-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#48
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIPE, STARTER CONNECTING
3EN-14988-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#51
SCREW, PAN HEAD
98580-05008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
NIPPLE
3GM-14251-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#53
O-RING
3LK-14147-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
ROD
3GM-14992-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#55
HOSE
2LE-14197-00-00
Superseded by 50H-14987-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
PIPE, JOINT 1
3H3-24376-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLIP
4LE-14137-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#58
HOSE
14X-14294-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#59
PIPE
3GM-14197-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#60
CLAMP
90464-10075-00
Superseded by 90464-09M31-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
