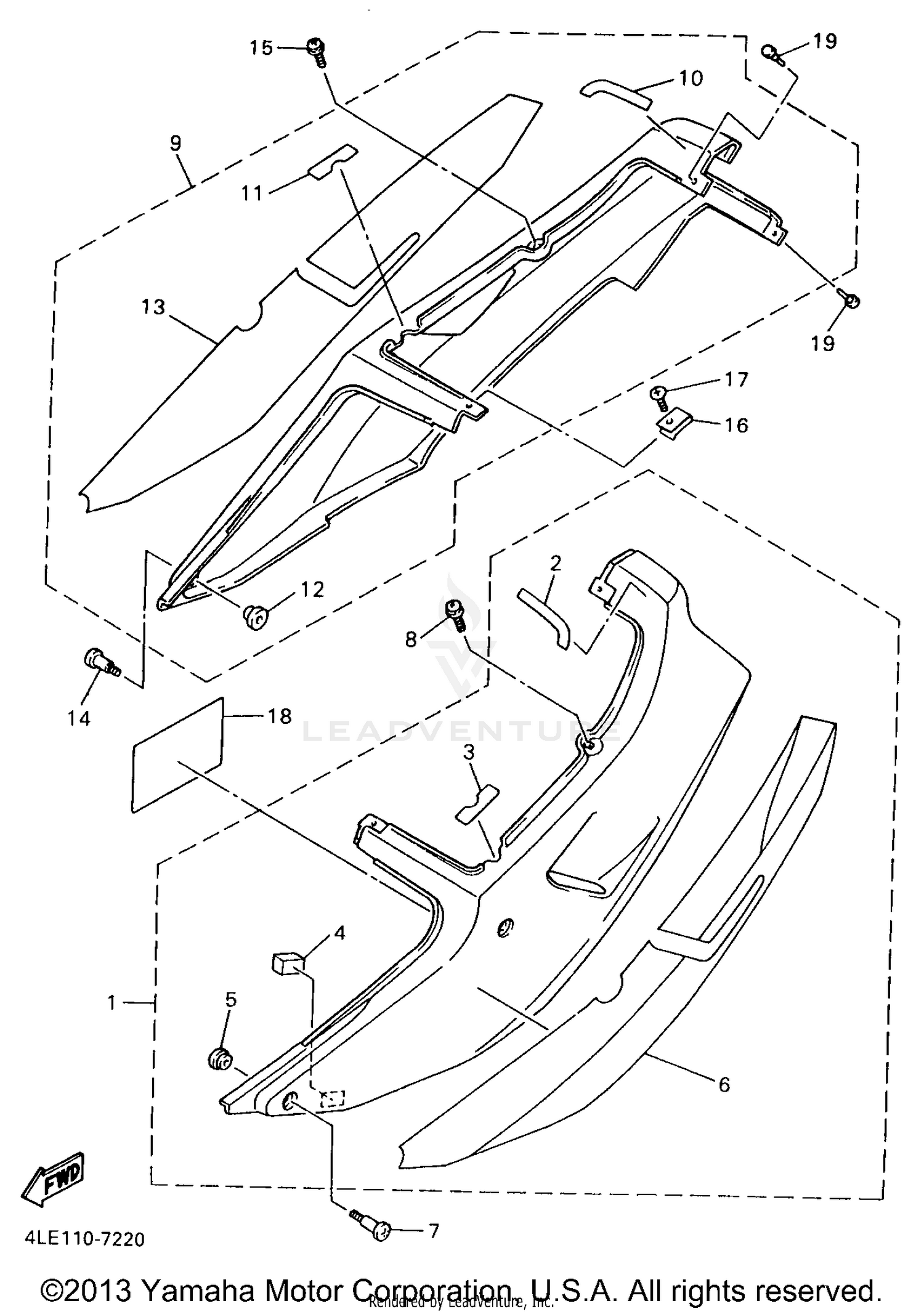

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
4FM-Y2171-R1-P5
|
$391.99 | ||
|
Unavailable |
|||
|
#2
SEAL 1
3GM-21575-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE 1
4FM-2173T-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#4
CAP
1WG-2143A-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRAPHIC 1
4HD-2173E-10-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, ROUND HEAD
90150-06036-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-06093-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SIDE 2
4FM-Y2172-C1-P5
|
$391.99 | ||
|
Unavailable |
|||
|
#10
SEAL 2
3GM-21576-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
TAPE 1
4FM-2173T-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
GRAPHIC 2
4HD-2173F-10-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, ROUND HEAD
90150-06036-00
|
$7.99 | ||
|
Unavailable |
|||
|
#15
SCREW, WITH WASHER
90159-06093-00
|
$7.99 | ||
|
Unavailable |
|||
|
#16
NUT, SPRING
90183-04064-00
|
$3.65 | ||
|
Unavailable |
|||
|
#17
SCREW, TAPPING
97707-40010-00
|
$0.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, EPA 2
4LE-2179R-20-00
|
$75.99 | ||
|
Unavailable |
|||
|
#
PLATE, EPA 1
4LE-2179V-20-00
|
$35.99 | ||
|
Unavailable |
|||
|
#19
GROMMET
90480-04166-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
