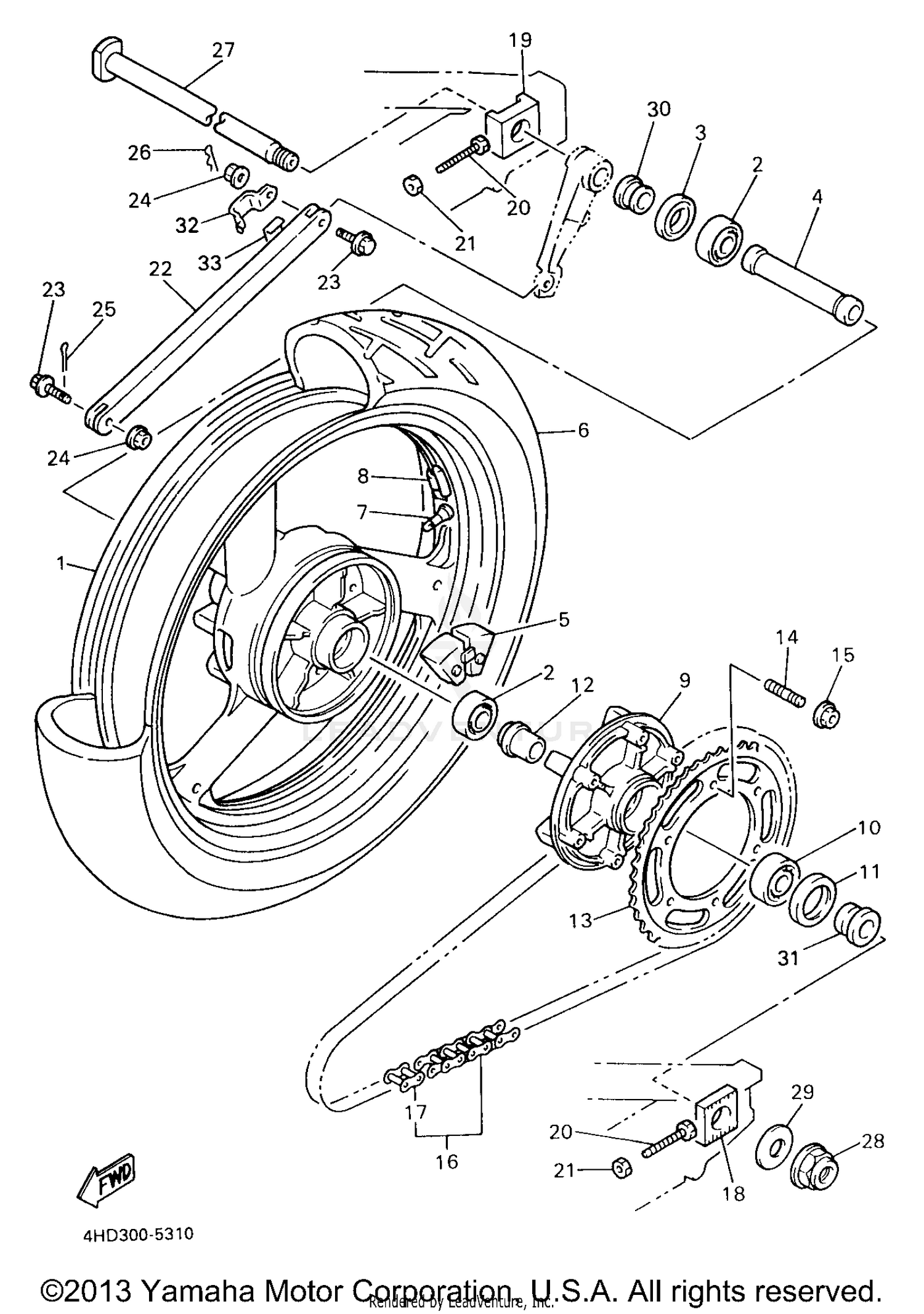

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
4FM-25338-01-7B
|
$642.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20567-00
Superseded by 93306-07806-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-35412-00
Superseded by 93106-35042-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER
90560-28389-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
4FM-25364-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TIRE (180/55 ZR17 BT50R)
94118-1700R-00
|
$339.99 | ||
|
Unavailable |
|||
|
#7
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLUTCH, HUB
4FM-25366-00-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20644-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-40211-00
Superseded by 93106-40041-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, WHEEL
4FM-25377-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, DRIVEN (43T)
3FV-25443-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#14
BOLT, STUD
90116-10575-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U FLANGE
95617-10200-00
Superseded by 95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
CHAIN
94581-55106-00
Superseded by 9Y581-55105-00
|
$349.99 | ||
|
Unavailable |
|||
|
#17
JOINT, CHAIN
94681-55031-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PULLER, CHAIN 1
4FM-25388-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#19
PULLER, CHAIN 2
4FM-25389-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#20
BOLT (L=55 P=1.25)
90101-08766-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT(6TA)
95337-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAR, TENSION
4FM-25371-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-08321-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90468-16099-00
Superseded by 90468-16192-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
AXLE, WHEEL
4FM-25381-10-00
Superseded by 4FM-25381-20-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SELF-LOCKING
90185-24165-00
Superseded by 90185-24007-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-257R5-00
Superseded by 90201-25020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-2805W-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-2805X-00
|
$20.99 | ||
|
Unavailable |
|||
|
#32
HOLDER, BRAKE HOSE
4FM-25887-01-00
|
$15.99 | ||
|
Unavailable |
|||
|
#33
DAMPER
2AL-84553-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
