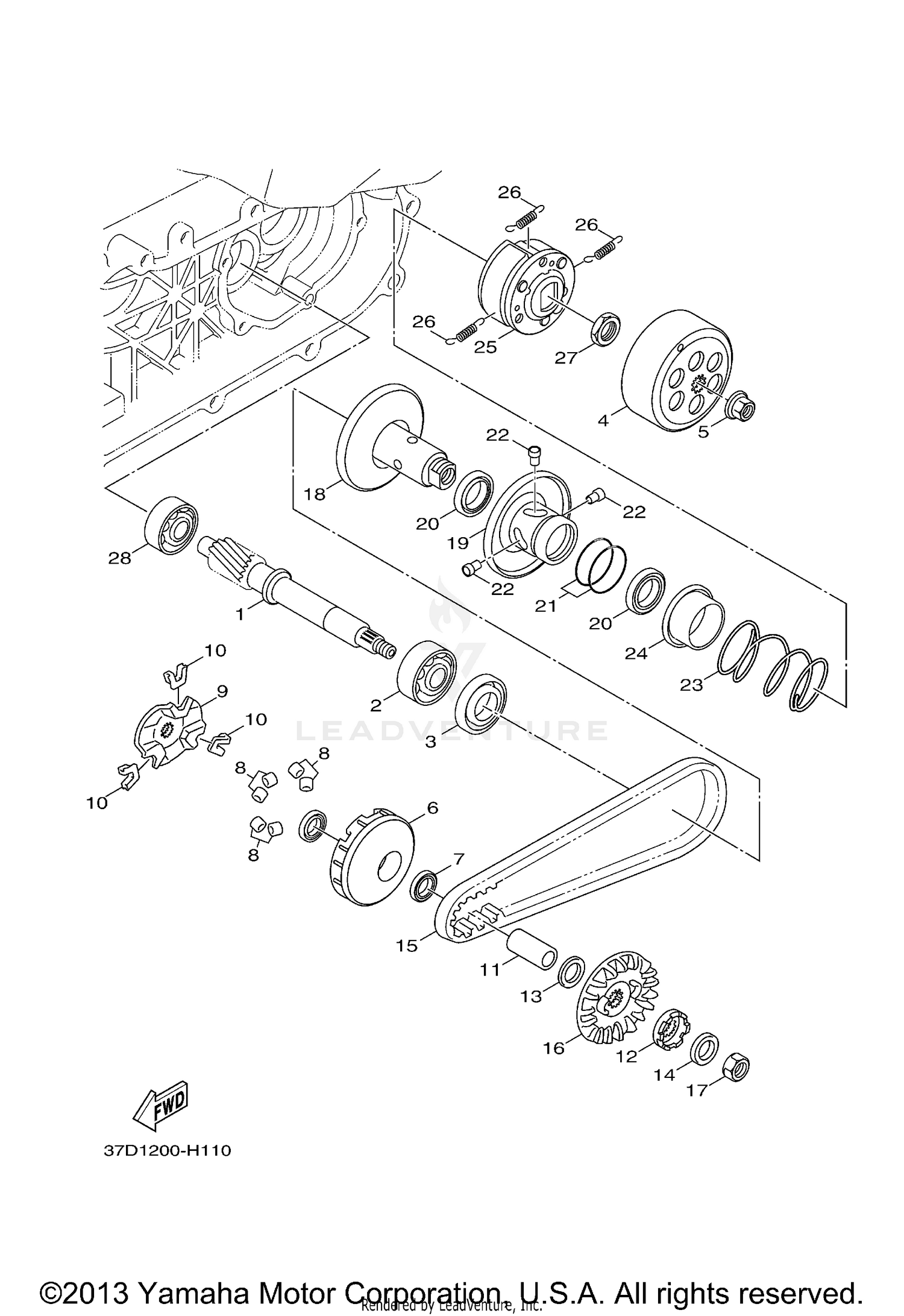

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
5CA-E6111-01-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-272X0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-22800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH HOUSING COMP.
4CW-E6611-00-00
Superseded by 2JS-E6611-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90179-14427-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
PRIMARY SLIDING SHEAVE COMP.
5ML-E7620-02-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93101-21170-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WEIGHT
5UA-E7632-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAM
5ML-E7623-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SLIDER
4CW-E7653-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-16801-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLUTCH, ONEWAY
5ML-E5657-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CONICAL SPRING
90208-12050-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-168S9-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
V-BELT
5S9-E7641-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHEAVE, PRIMARY FIXED
4HP-E7611-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95307-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SECONDARY FIXED SH
4CW-E7660-01-00
Superseded by 4CW-WE766-20-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SECONDARY SLIDING SHEAVE
5S9-E7670-00-00
Superseded by 5S9-E7670-10-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93104-41119-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-43800-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, GUIDE
4CW-E7664-00-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, COMPRESSION
90501-45801-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAT,SPRING
5TY-E7644-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLUTCH CARRIER ASSY
4TE-E6620-01-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, CLUTCH WEIGHT 1
4CW-E6626-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90170-36279-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING
93306-203YS-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
