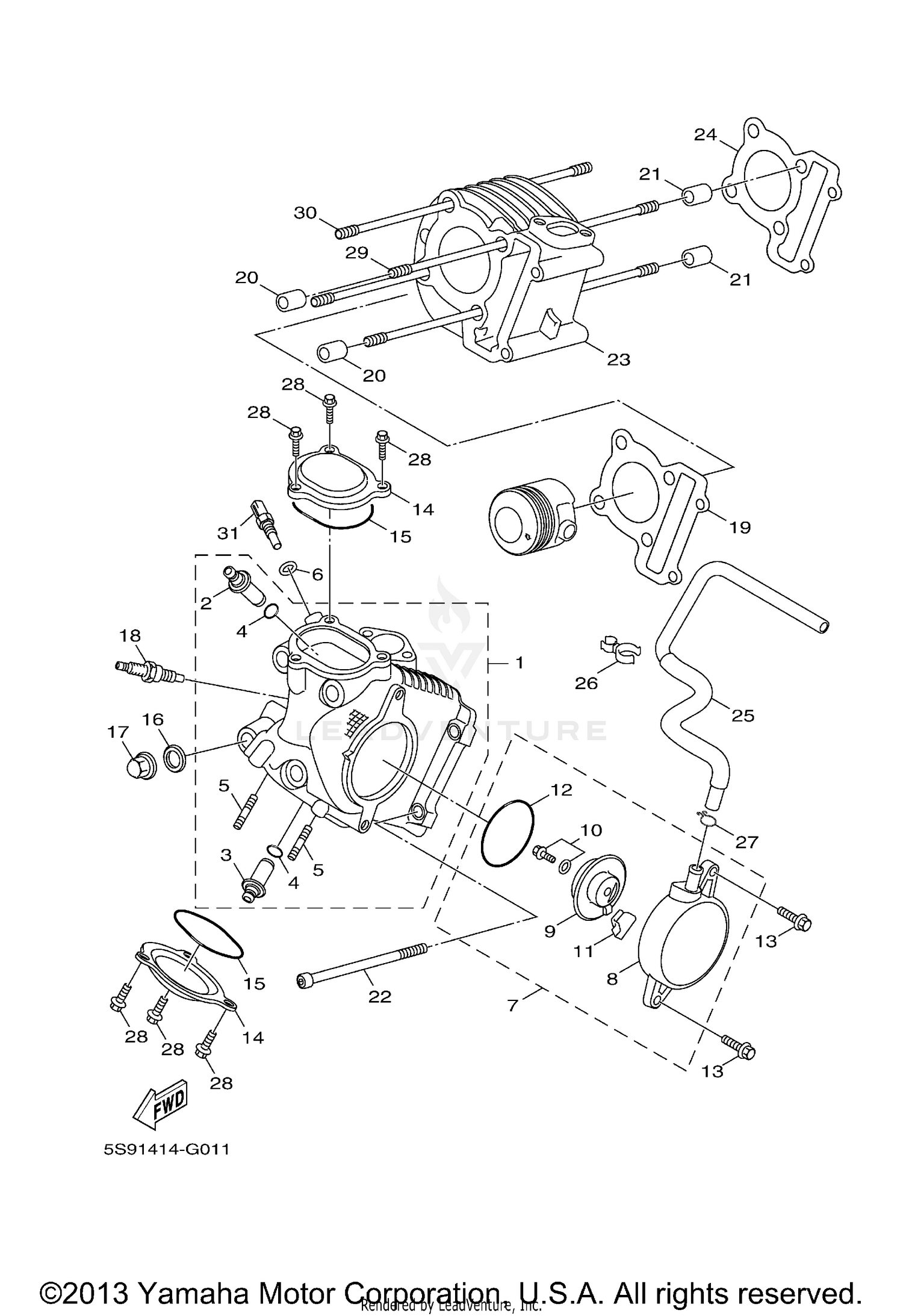

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
4P9-E1102-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5ML-11133-10-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
5ML-11134-10-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-09802-00
Superseded by 93210-09418-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-08806-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
90430-10802-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
BREATHER ASSY
5ML-E1160-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CYLINDER HEAD SIDE 3
5ML-E1185-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, BREATHER
5ML-E1165-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
97517-06512-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, LABYRINTH
4CW-E1155-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-71803-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CYLINDER HEAD SIDE 2
5ML-E1186-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-54008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-08609-00
Superseded by 90201-080L7-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CROWN
90176-08816-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
CR7E NGK SPLUG 4PK
94700-00881-00
Superseded by CR7-E0000-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
GASKET, CYLINDER HEAD 1
5ML-E1181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
91810-14807-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL
91810-14807-00
|
$1.55 | ||
|
Unavailable |
|||
|
#22
BOLT
91317-06100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CYLINDER 1
5ML-E1311-20-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, CYLINDER
5ML-E1351-20-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE
5S9-E4987-02-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-13800-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-13042-00
Superseded by 90467-13M13-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, STUD 1
5ML-E1391-00-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, STUD 2
5ML-E1392-00-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#31
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
