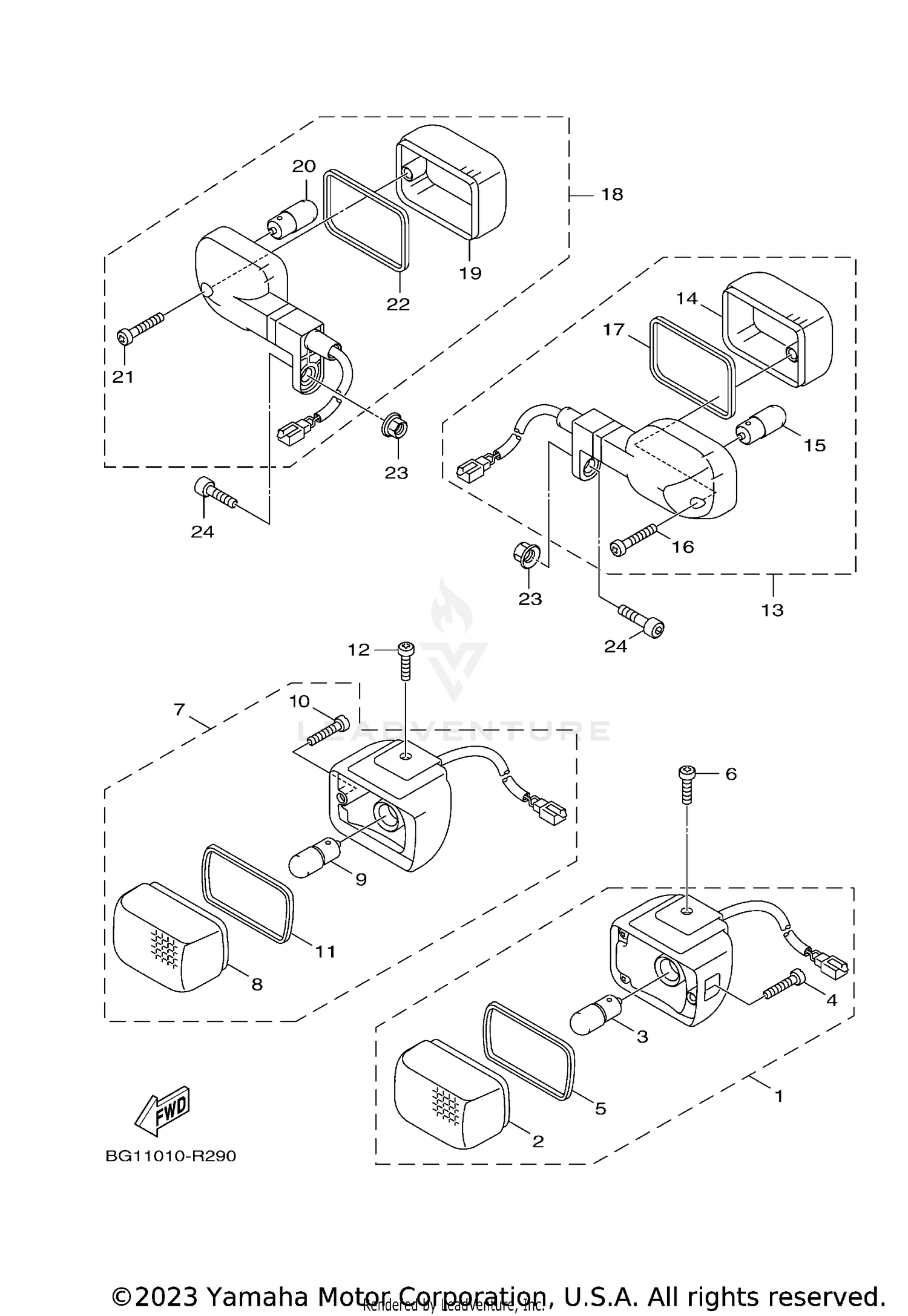

Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGH
BC9-H3310-00-00
Superseded by BC9-H3310-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, FLASHER
BC9-H3312-00-00
Superseded by BC9-H3312-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB, FLASHER (12V-10W)
5SK-H3311-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, LENS FITTING
5S9-H3333-00-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, FLASHER LENS
5S9-H3313-00-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, BUTTON HEAD
92012-05010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FRONT FLASHER LIGH
BC9-H3320-00-00
Superseded by BC9-H3320-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LENS, FLASHER
BC9-H3312-00-00
Superseded by BC9-H3312-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#9
BULB, FLASHER (12V-10W)
5SK-H3311-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
SCREW, LENS FITTING
5S9-H3333-00-00
|
$0.99 | ||
|
Unavailable |
|||
|
#11
GASKET, FLASHER LENS
5S9-H3313-00-00
|
$1.20 | ||
|
Unavailable |
|||
|
#12
BOLT, BUTTON HEAD
92012-05010-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
REAR FLASHER LIGHT
BC9-H3330-00-00
Superseded by BC9-H3330-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LENS, FLASHER
BC9-H3332-00-00
Superseded by BC9-H3332-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#15
BULB, FLASHER (12V-10W)
5SK-H3311-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
SCREW, LENS FITTING
5S9-H3333-00-00
|
$0.99 | ||
|
Unavailable |
|||
|
#17
GASKET, FLASHER LENS
5S9-H3313-00-00
|
$1.20 | ||
|
Unavailable |
|||
|
#18
REAR FLASHER LIGHT
BC9-H3340-00-00
Superseded by BC9-H3340-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
LENS, FLASHER
BC9-H3332-00-00
Superseded by BC9-H3332-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
BULB, FLASHER (12V-10W)
5SK-H3311-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
SCREW, LENS FITTING
5S9-H3333-00-00
|
$0.99 | ||
|
Unavailable |
|||
|
#22
GASKET, FLASHER LENS
5S9-H3313-00-00
|
$1.20 | ||
|
Unavailable |
|||
|
#23
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-06852-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
