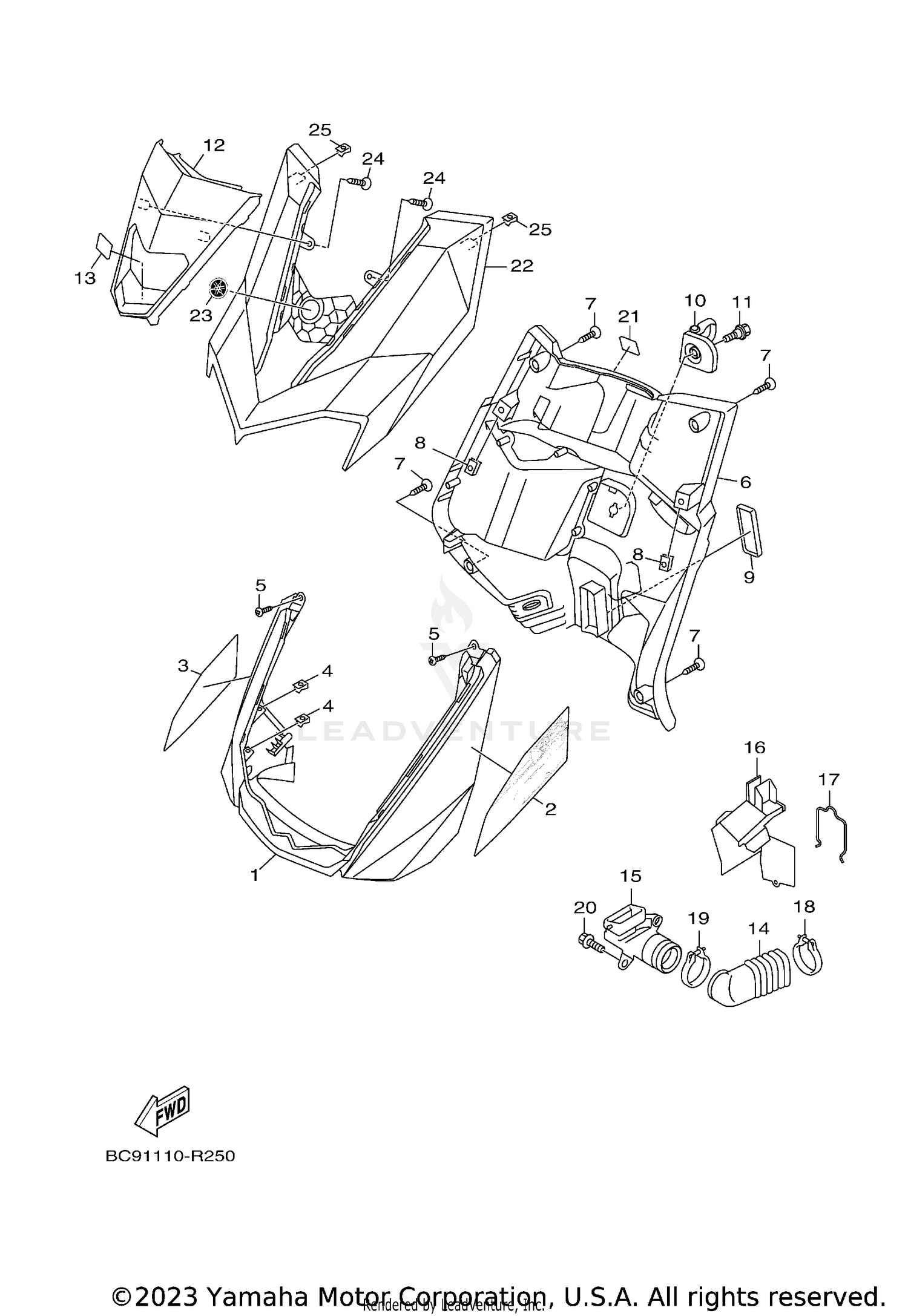

Leg Shield Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEG SHIELD 1
2JS-F8311-00-UJ
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
LEG SHIELD 1
2JS-F8311-00-P9
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRAPHIC 1
BC9-F8391-10-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRAPHIC 1
BC9-F8391-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRAPHIC 2
BC9-F8392-10-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRAPHIC 2
BC9-F8392-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SPRING
90183-06813-00
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEG SHIELD ASSY
2JS-F8300-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TAPPING SCREW
90169-05001-00
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-05816-00
Superseded by 90183-05827-00
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP
5FM-F8349-00-00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOOK
1CF-F8379-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-068A0-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
MOLE 1
2JS-F8345-00-P1
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, PLATE
90520-01801-00
|
$0.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUCT 1
5ML-F838N-01-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUCT 2
5ML-F838R-00-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER
2JS-F8365-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
5ML-F8457-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, HOSE
5CA-F1823-20-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90450-53801-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90109-063F1-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL, CAUTION
1CD-F4877-00-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, HEADLIGHT
2JS-H4144-00-00
Superseded by 2JS-H4144-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GRAPHIC 1
1MS-F1569-00-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Unavailable |
|||
|
#25
NUT, SPRING
90183-05816-00
Superseded by 90183-05827-00
|
$1.51 | ||
|
Unavailable |
|||
