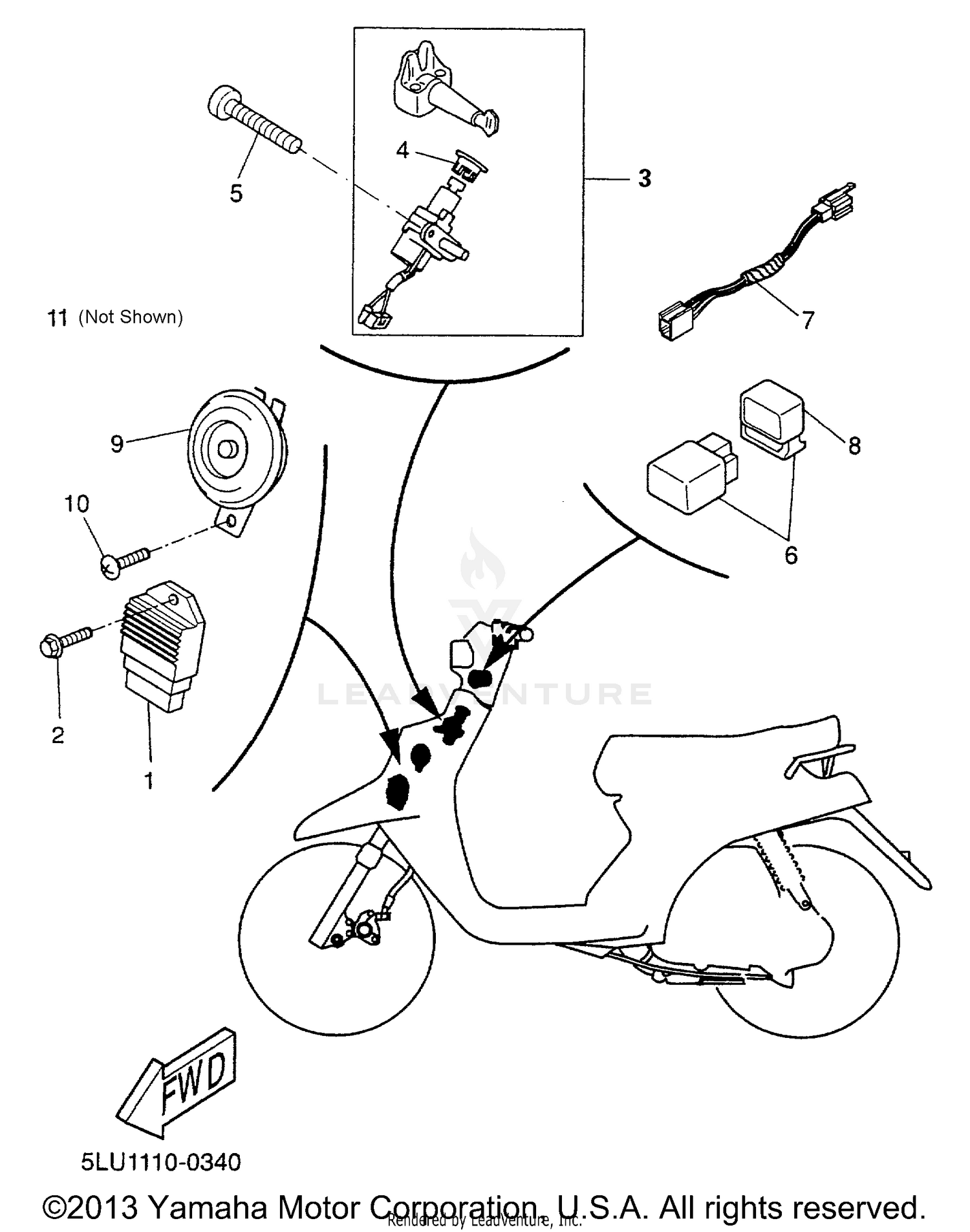

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER & REGULA
4VV-H1960-00-00
Superseded by 4VV-H1960-01-00
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, WASHER BASED
90106-06696-00
|
|||
|
Unavailable |
|||
|
#3
KEY SET
5JH-H2021-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP
4VV-H2532-00-00
Superseded by 1S0-H2552-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-06851-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLASHER RELAY ASSY
3VL-H3350-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#7
WIRE, SUB LEAD
4CH-H2509-00-00
|
|||
|
Unavailable |
|||
|
#8
BAND
3VL-H5546-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#9
HORN
4CU-H3371-00-00
Superseded by 4CU-H3371-03-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, SWITCH CORD (95.7X2.5)
4VU-H3936-01-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
