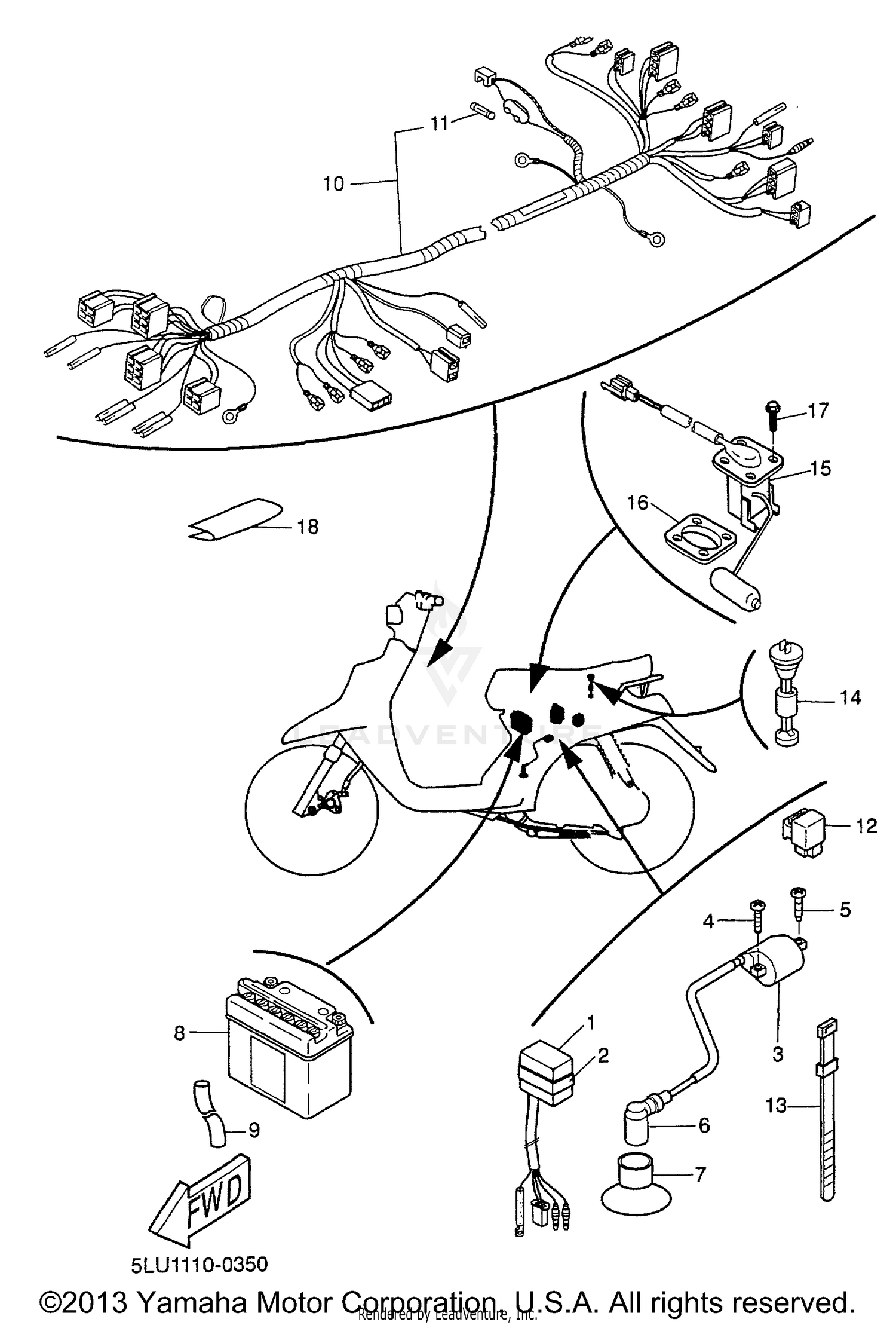

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
3KJ-85540-10-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
5AD-H5546-00-00
|
$6.30 | ||
|
Unavailable |
|||
|
#3
IGNITION COIL ASSY
3KJ-82310-10-00
Superseded by 3KJ-82310-13-00
|
$45.99 | ||
|
Unavailable |
|||
|
#4
SCREW
90149-06262-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97707-60525-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG CAP ASSY
3WG-H2370-10-00
Superseded by SPC-LB05F-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, PLUG CAP
3WG-H2372-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
YB4LB YUASA BATTERY
BTG-CB4LB-00-00
Superseded by YB4-LB000-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, BREATHER
4VU-H2112-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WIRE HARNESS ASSY
4UY-82590-00-00
|
$193.99 | ||
|
Unavailable |
|||
|
#11
FUSE
27V-82151-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY ASSY (29U-93)
29U-81950-93-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND SWITCH CORD (249X4.8)
4KH-H3936-01-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#
BAND, SWITCH CORD (95.7X2.5)
4VU-H3936-01-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#
BAND SWITCH CORD (160X4.5)
4VV-H3936-01-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL LEVEL GAUGE AS
3VL-H5720-10-00
Superseded by 53L-85720-10-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENDER UNIT ASSY
3VL-85752-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#16
GASKET, SENDER UNIT
5G3-85753-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WITH WASHER
90119-05071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND
4PA-H3836-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY UNIT
3WW-H553A-00-00
|
$6.99 | ||
|
Unavailable |
|||
