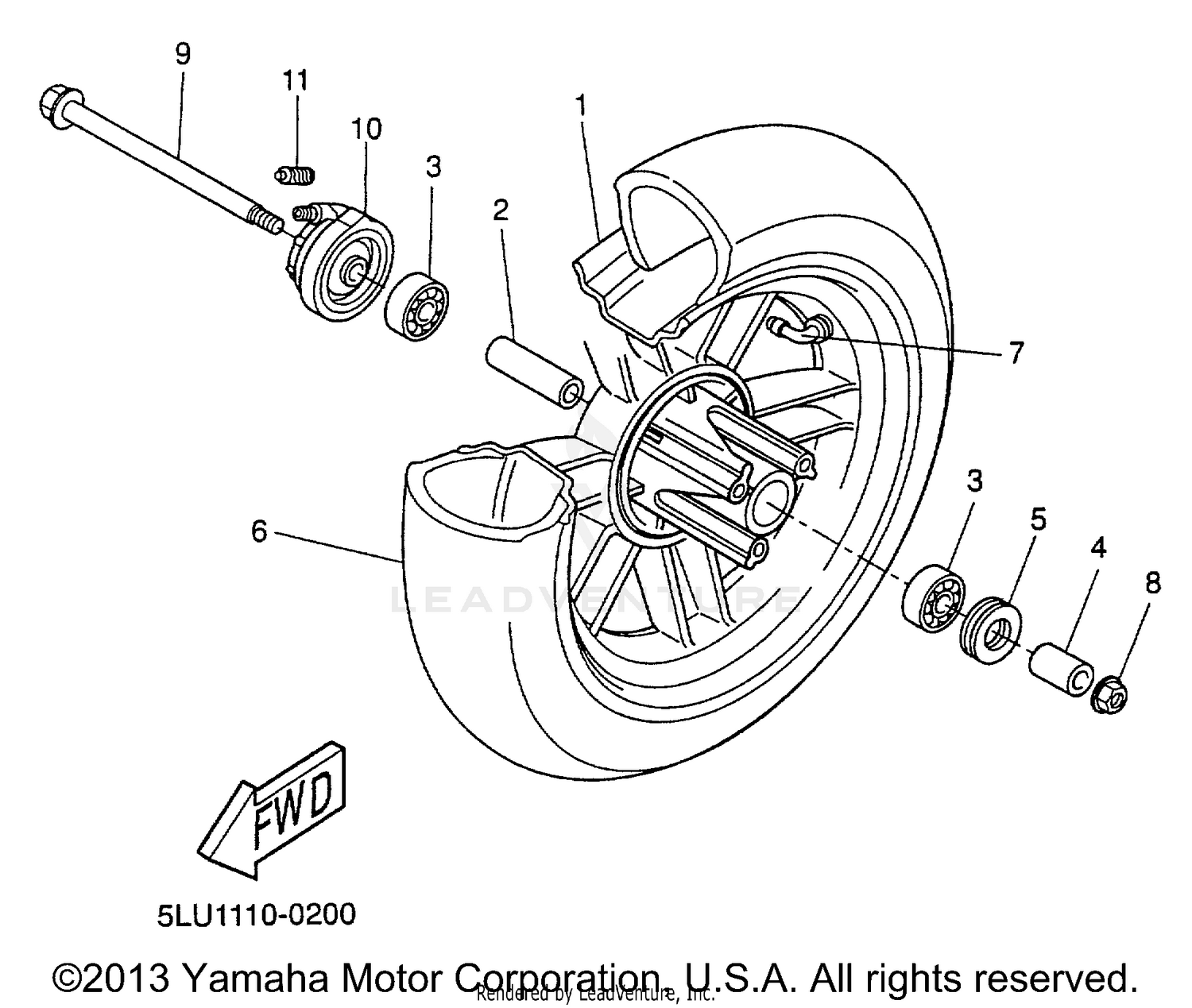

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, FRONT
5HG-F5168-01-00
|
$234.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
4SB-F5117-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-300Y8-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-10079-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-20001-00
|
$2.50 | ||
|
Unavailable |
|||
|
#6
TIRE (120-90-10 54J)
9079Q-04684-00
|
$72.99 | ||
|
Unavailable |
|||
|
#7
AIR VALVE ASSY
3VL-F5170-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U FLANGE
95617-10200-00
Superseded by 95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXLE, WHEEL
3AA-25181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR UNIT ASSY
4VV-F5190-00-00
Superseded by 4VV-F5190-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, METER
3AA-25138-00-00
|
$14.99 | ||
|
Unavailable |
|||
