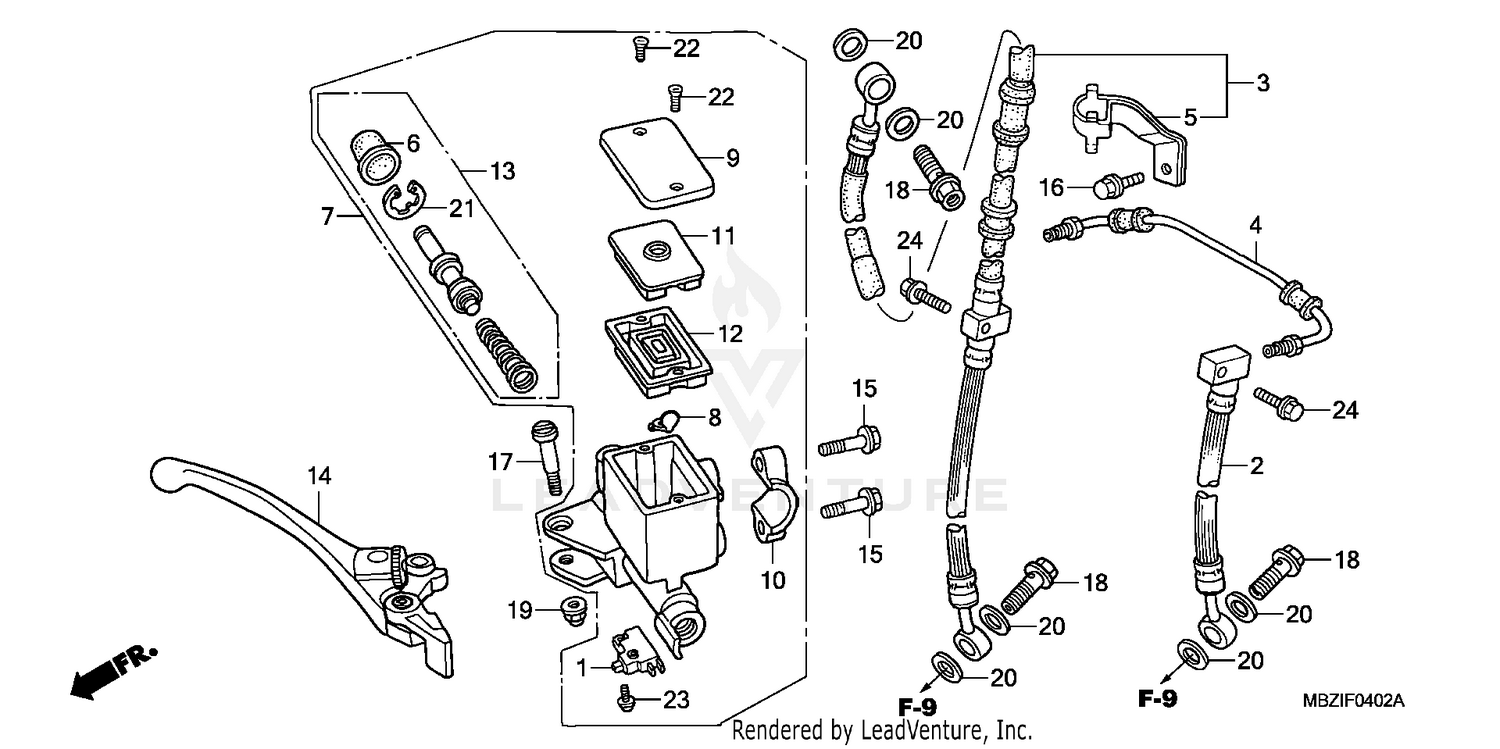

Front Brake Master Cylinder (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MM5-600
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, L. FR. BRAKE
45125-MBZ-G01
|
$55.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, R. FR. BRAKE
45125-MBZ-K01
|
$135.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, FR. BRAKE
45135-MBZ-D00
|
$25.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, FR. BRAKE HOSE
45158-MBZ-G00
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT
45504-410-003
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
45510-MW3-601
|
$256.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR
45512-MA6-006
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, MASTER CYLINDER (NISSIN)
45513-MM5-016
|
$25.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, MASTER CYLINDER
45517-166-006
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, DIAPHRAGM
45518-MM5-006
|
$12.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
45520-MM5-006
|
$17.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
MASTER CYLINDER SET
45530-471-831
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER ASSY., R. HANDLE
53170-MBW-006
|
$50.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X22)
90101-MBZ-G00
|
$1.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X10)
90102-MW3-600
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HANDLE LEVER PIVOT
90114-MA5-671
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, OIL (10X22)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CAP (6MM)
90201-415-000
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
90651-MA5-671
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.90 | ||
|
Unavailable |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-07
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.35 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X25)
95801-06025-07
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
