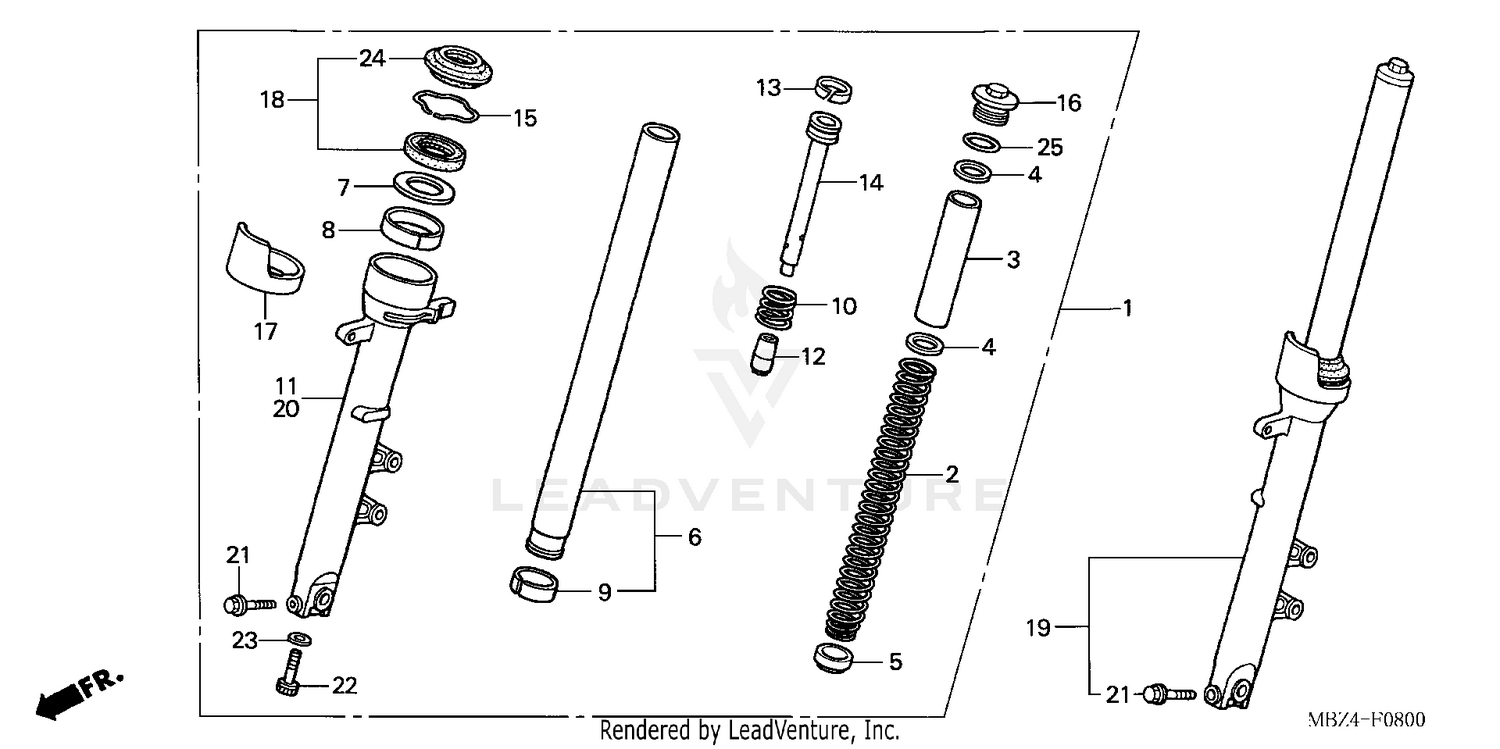

Front Fork (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK ASSY., R. FR.
51400-MBZ-K31
Superseded by 51400-MBZ-K32
|
$293.10 | ||
|
Available to order. Add to View Price |
|||
|
#1
FORK ASSY., R. FR.
51400-MBZ-K32
|
$293.10 | ||
|
Unavailable |
|||
|
#2
SPRING, FR. FORK
51401-MBZ-K31
|
$42.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SPRING
51402-ML7-921
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING (SHOWA)
51403-MBL-611
Superseded by 51403-KF0-003
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, SPRING
51404-MBZ-K01
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, FR. FORK
51410-MBZ-K31
|
$219.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, BACK-UP
51412-MBL-611
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, GUIDE (SHOWA)
51414-KCR-003
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SLIDER (SHOWA)
51415-KCR-003
|
$14.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, FR. REBOUND
51416-MBL-611
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, R. (LOWER)
51420-MBZ-K31
Superseded by 51420-MBZ-K32
|
$165.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, R. (LOWER)
51420-MBZ-K32
|
$165.95 | ||
|
Unavailable |
|||
|
#12
PIECE, OIL LOCK
51432-MBL-D01
|
$20.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, PISTON
51437-KV3-701
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, SEAT
51440-MBZ-K31
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, OIL SEAL STOPPER (SHOWA)
51447-MBL-611
Superseded by 51447-KA4-711
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FR. FORK
51454-MBL-D01
Superseded by 51454-MM9-671
|
$44.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
PROTECTOR, FORK PIPE
51460-MBZ-G01
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL SET, FR. FORK
51490-MN8-305
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK ASSY., L. FR.
51500-MBZ-K31
Superseded by 51500-MBZ-K32
|
$476.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK ASSY., L. FR.
51500-MBZ-K32
|
$476.23 | ||
|
Unavailable |
|||
|
#20
CASE, L. (LOWER)
51520-MBZ-K31
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X45)
90109-MR7-000
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (8MM) (SHOWA)
90116-KV3-701
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL
91254-MM8-003
|
$20.72 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (33.2X2.4)
91356-KF0-003
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
