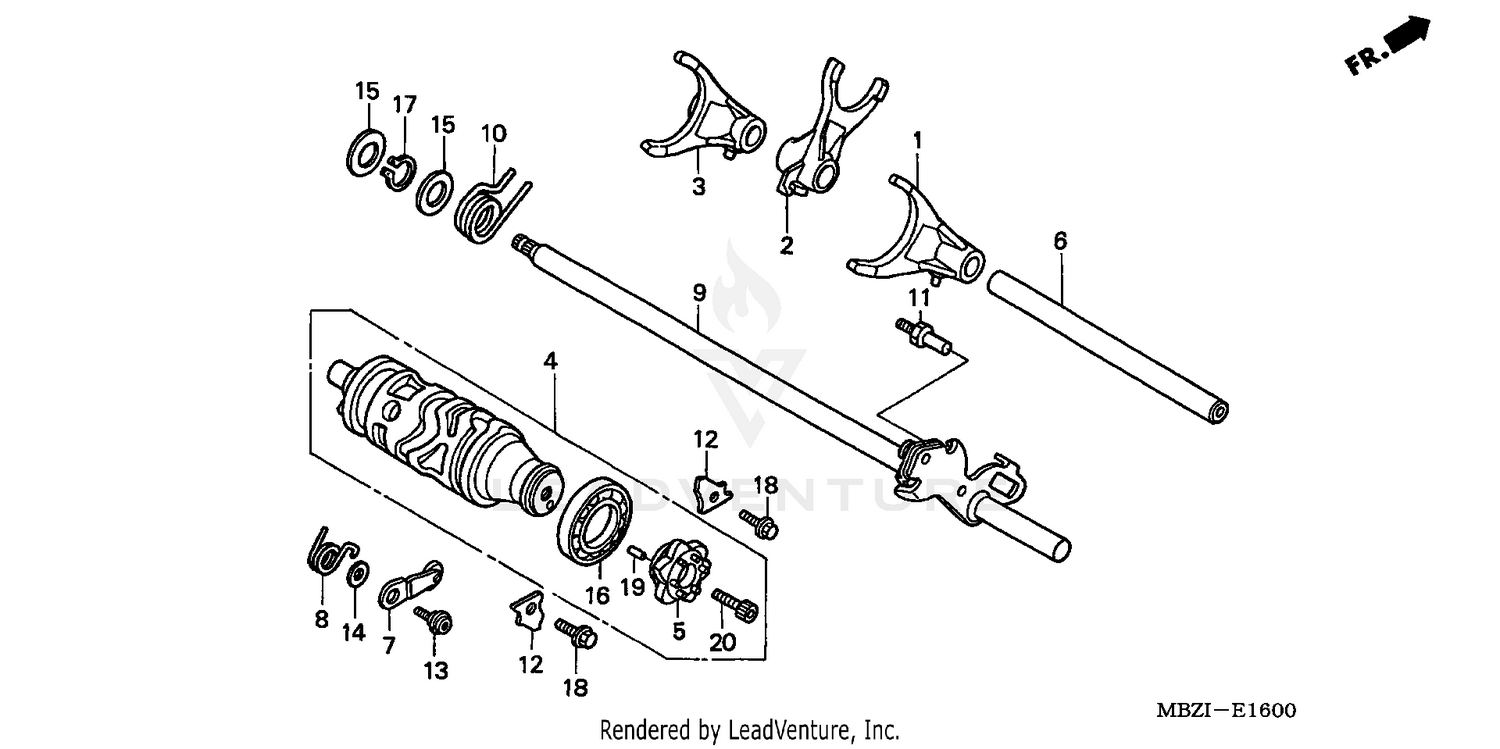

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-MAL-600
|
$82.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, CENTER GEARSHIFT
24212-MBZ-K00
|
$56.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, L. GEARSHIFT
24213-MAL-600
|
$77.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
DRUM, GEARSHIFT
24310-MBZ-K00
|
$137.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, SHIFT DRUM
24315-MW0-791
|
$42.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, GEARSHIFT FORK
24321-MV9-670
|
$25.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, DRUM
24430-MW0-000
|
$21.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SHIFT DRUM STOPPER
24435-MAE-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPINDLE, GEARSHIFT
24610-MBZ-G00
|
$84.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, SHIFT RETURN
24651-MAS-E00
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, SHIFT RETURN SPRING
24652-035-000
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DRUM SETTING
24655-MV9-670
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIVOT, SHIFT DRUM STOPPER ARM
90022-MY5-600
|
$12.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, DRUM STOPPER
90417-360-000
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (14MM)
90451-155-000
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, BALL (16005) (NTN)
91008-374-003
|
$17.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP, OUTER (14MM)
94510-14000
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROLLER (4X8)
96220-40080
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (8X20)
96600-08020-10
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
