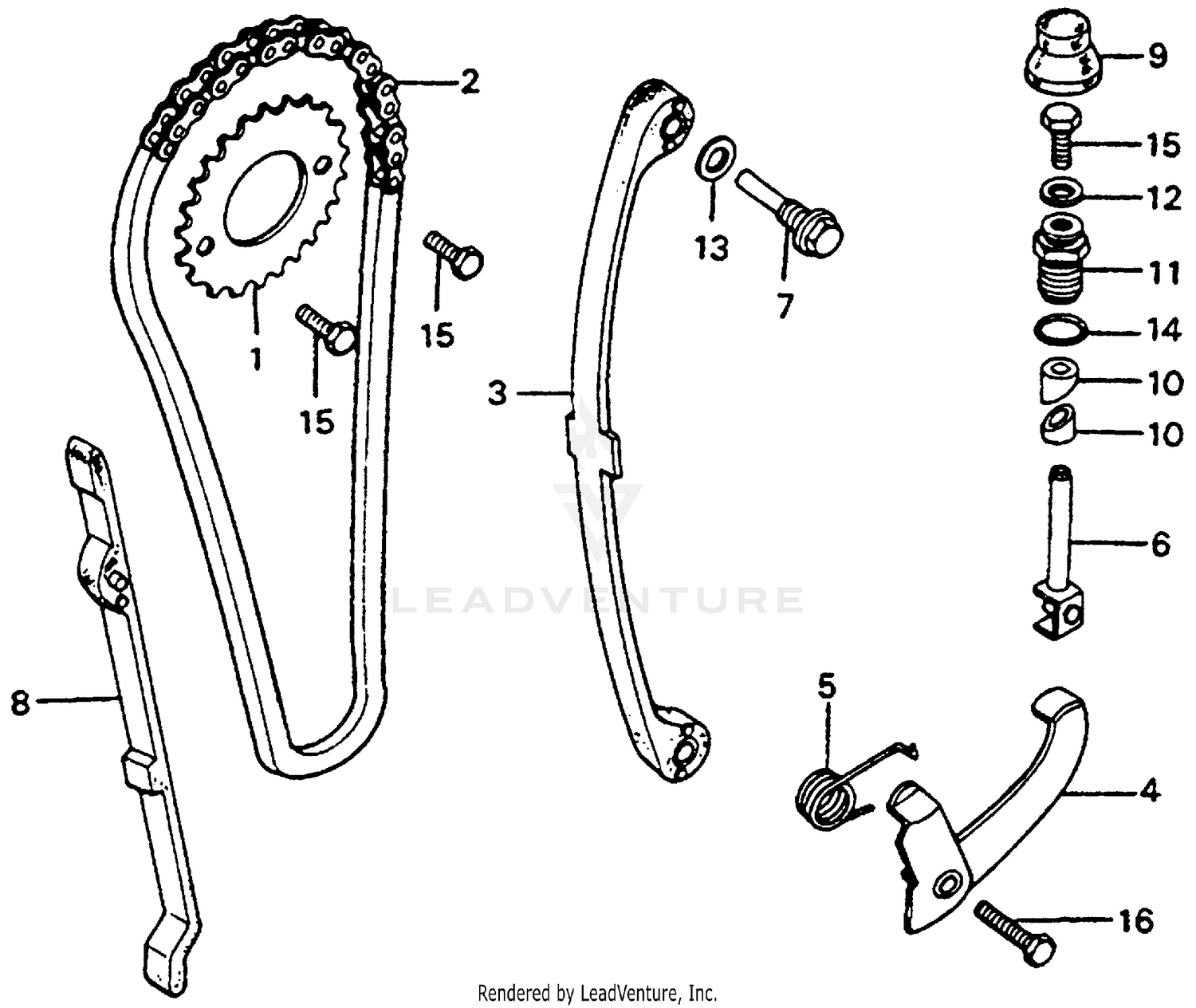

Cam Chain + Tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM (32T)
14321-107-010
Superseded by 14321-437-000
|
$33.36 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, CAM (32T)
14321-437-000
|
$33.36 | ||
|
Unavailable |
|||
|
#2
CHAIN, CAM (DID25H-98LE) (DAIDO)
14401-383-003
|
$43.12 | ||
|
Unavailable |
|||
|
#3
TENSIONER, CAM CHAIN
14500-383-000
|
$92.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, CAM CHAIN TENSIONER
14510-383-000
|
$36.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CAM CHAIN TENSIONER
14515-383-000
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, TENSIONER SETTING
14520-969-010
|
$30.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CAM CHAIN TENSIONER PIVOT
14535-107-010
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, CAM CHAIN
14550-383-000
|
$39.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, TENSIONER ADJ.
14564-383-000
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SET BAR LOCKING
14626-383-000
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SPECIAL (16MM)
90082-383-000
|
$29.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SEALING (6MM)
90441-028-010
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (8MM)
90481-035-000
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (13X2.5)
91335-567-000
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.03 | ||
|
Unavailable |
|||
