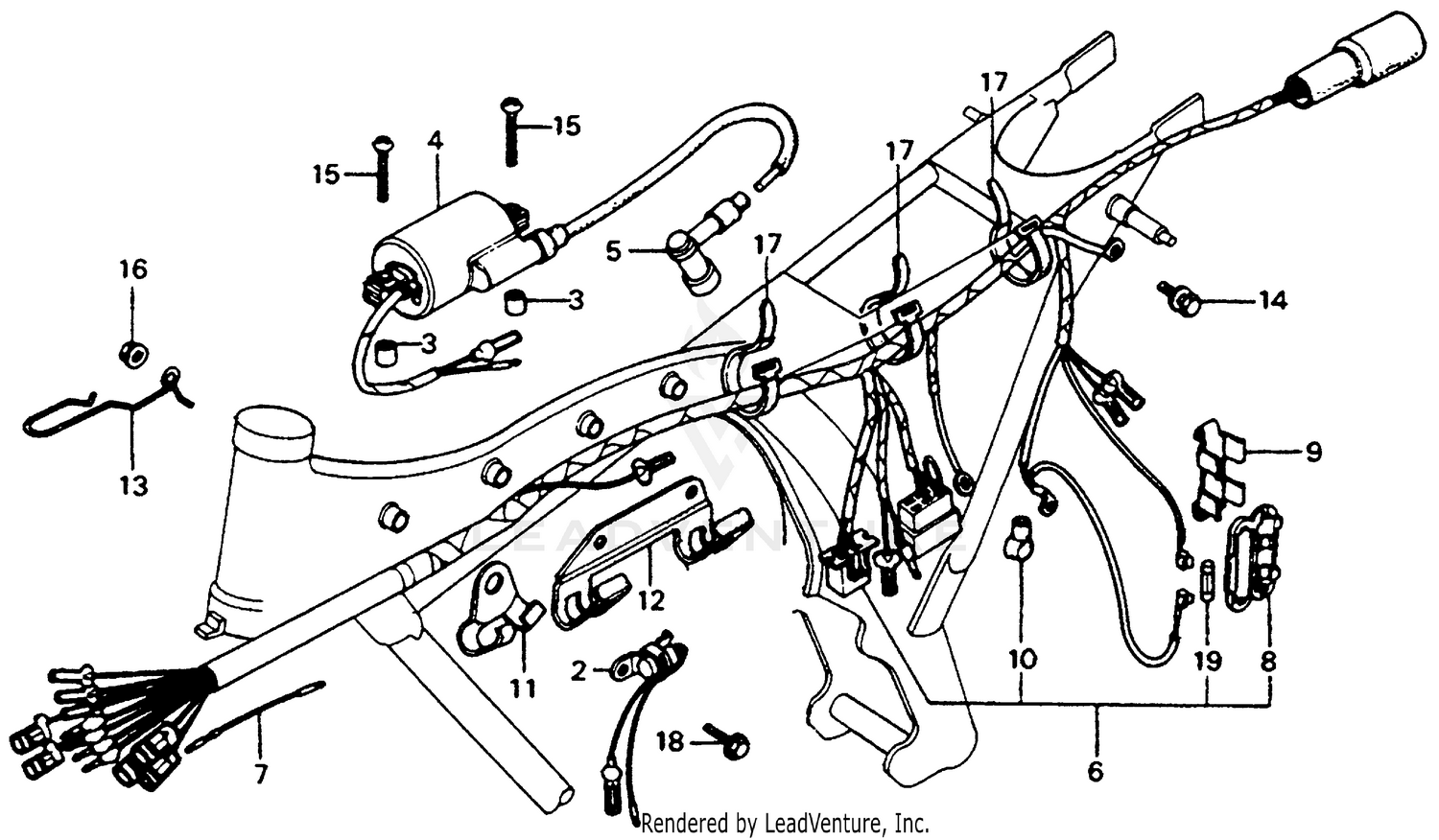

Wire Harness + Ignition Coil 79 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CONDENSER ASSY. (NOT AVAILABLE)
30250-383-720
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, IGNITION COIL MOUNT (NOT AVAILABLE)
30507-383-770
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
COIL, IGNITION (NOT AVAILABLE)
30530-383-880
|
$92.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-098-153
Superseded by 30700-KE2-942
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-098-163
Superseded by 30700-KE2-942
|
$20.71 | ||
|
Unavailable |
|||
|
#6
WIRE HARNESS (NOT AVAILABLE)
32100-383-881
|
$136.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE A, SUB (NOT AVAILABLE)
32101-385-000
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, FUSE CONNECTOR
32111-230-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, FUSE (NOT AVAILABLE)
32113-107-000
|
$2.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, TURN SIGNAL WIRE (NOT AVAILABLE)
33625-428-000
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP A, WIRE HARNESS
45464-383-720
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP B, WIRE HARNESS (NOT AVAILABLE)
45465-383-720
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, CLUTCH CABLE
50721-382-670
|
$7.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (6X12)
93401-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (6X12)
93411-06012-00
Superseded by 93401-06012-00
|
$1.64 | ||
|
Unavailable |
|||
|
#14
BOLT-WASHER (6X12)
93481-06012-00
Superseded by 93401-06012-00
|
$1.64 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN (6X28) (NOT AVAILABLE)
93500-06028-4J
|
$1.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND B1, CABLE
32161-404-000
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
|
$2.57 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X16)
95700-06016-00
Superseded by 95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Unavailable |
|||
|
#19
FUSE A (15A)
98200-11500
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
