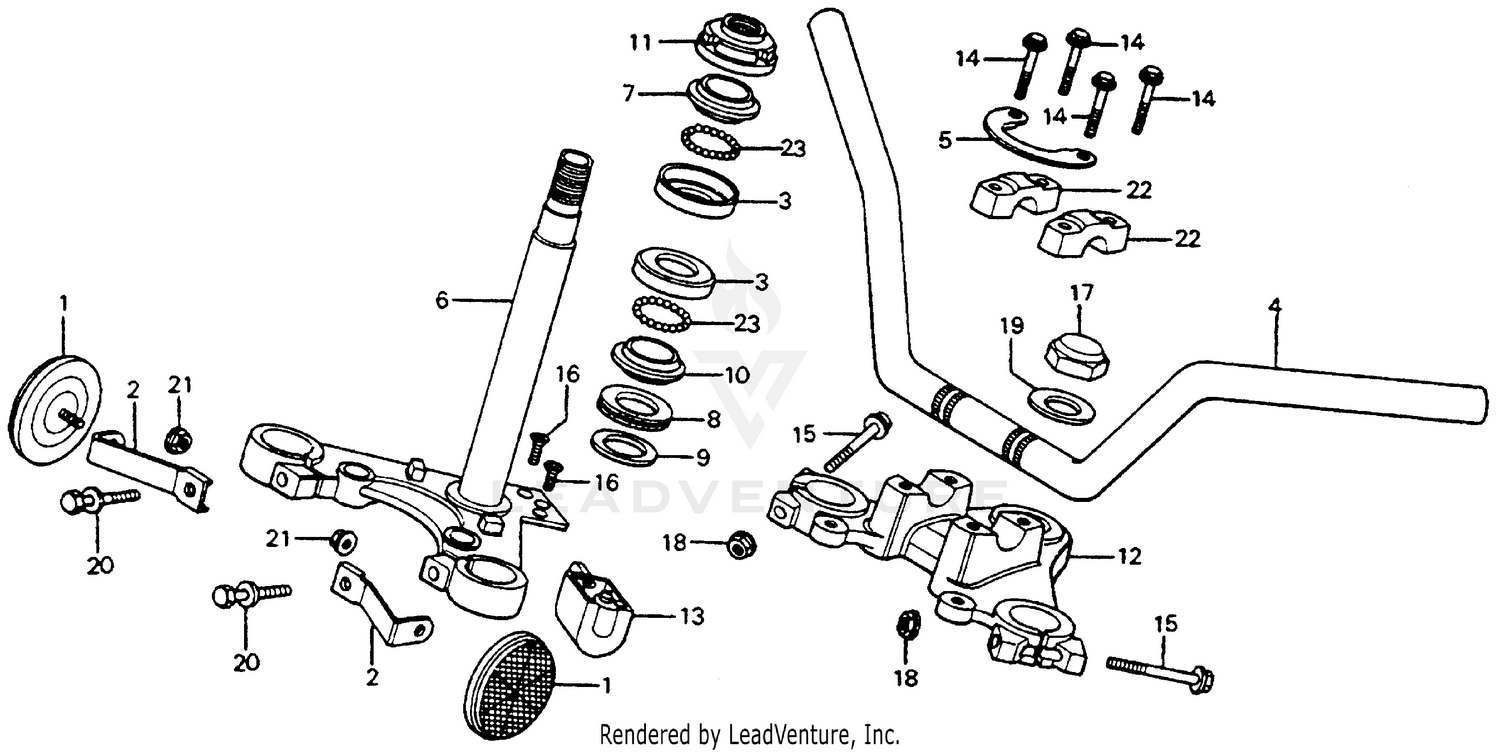

Handlebar 79 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, FR. REFLEX
33741-413-003
Superseded by 33742-HB9-641
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
REFLECTOR, FR. REFLEX
33741-413-013
Superseded by 33742-HB9-641
|
$15.24 | ||
|
Unavailable |
|||
|
#1
REFLECTOR, FR. REFLEX
33742-HB9-641
|
$15.24 | ||
|
Unavailable |
|||
|
#2
STAY, R. REFLECTOR
33751-399-000
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, STEERING BALL
50301-041-000
Superseded by 50301-041-010
|
$14.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, STEERING TOP BALL
50301-041-010
|
$14.36 | ||
|
Unavailable |
|||
|
#3
RACE, STEERING BALL
50301-041-305
Superseded by 50301-041-010
|
$14.36 | ||
|
Unavailable |
|||
|
#4
HANDLEBAR (NOT AVAILABLE)
53100-383-880
|
$51.66 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, CABLE
53139-383-880
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
STEM, STEERING *NH1* (BLACK)
53200-383-880ZA
|
$192.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
RACE, STEERING TOP CONE
53211-028-000
Superseded by 53211-028-010
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
RACE, STEERING CONE (UPPER)
53211-028-010
|
$12.86 | ||
|
Unavailable |
|||
|
#7
RACE, STEERING TOP CONE
53211-028-305
Superseded by 53211-028-010
|
$12.86 | ||
|
Unavailable |
|||
|
#8
DUST SEAL, STEERING HEAD
53214-001-010
Superseded by 53214-GJG-C20
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, STEERING HEAD DUST SEAL
53215-001-000
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
RACE, STEERING CONE (LOWER)
53212-030-000
Superseded by 53212-030-010
|
$12.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
RACE, STEERING CONE (LOWER)
53212-030-010
|
$12.44 | ||
|
Unavailable |
|||
|
#10
RACE, STEERING CONE (LOWER)
53212-937-000
Superseded by 53212-030-010
|
$12.44 | ||
|
Unavailable |
|||
|
#10
RACE, STEERING CONE (LOWER)
53217-030-305
Superseded by 53212-030-010
|
$12.44 | ||
|
Unavailable |
|||
|
#11
THREAD, STEERING HEAD TOP
53220-074-000
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRIDGE, FORK TOP
53231-383-720
|
$92.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOCK, HANDLEBAR (HONDALOCK)
53600-086-007
|
$52.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X28)
90117-383-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (7X54)
90155-369-000
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, STEERING STEM
90304-011-000
Superseded by 90304-159-000
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, STEERING STEM
90304-159-000
|
$8.43 | ||
|
Unavailable |
|||
|
#17
NUT, STEERING STEM
95020-11100
Superseded by 90304-159-000
|
$8.43 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE (7MM)
90355-369-000
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, STEERING STEM
90503-051-870
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-WASHER (8X35) (NOT AVAILABLE)
93481-08035-00
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER A2, HANDLEBAR (UPPER)
95014-21201
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL, STEEL (#6) (3/16)
96211-06000
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
