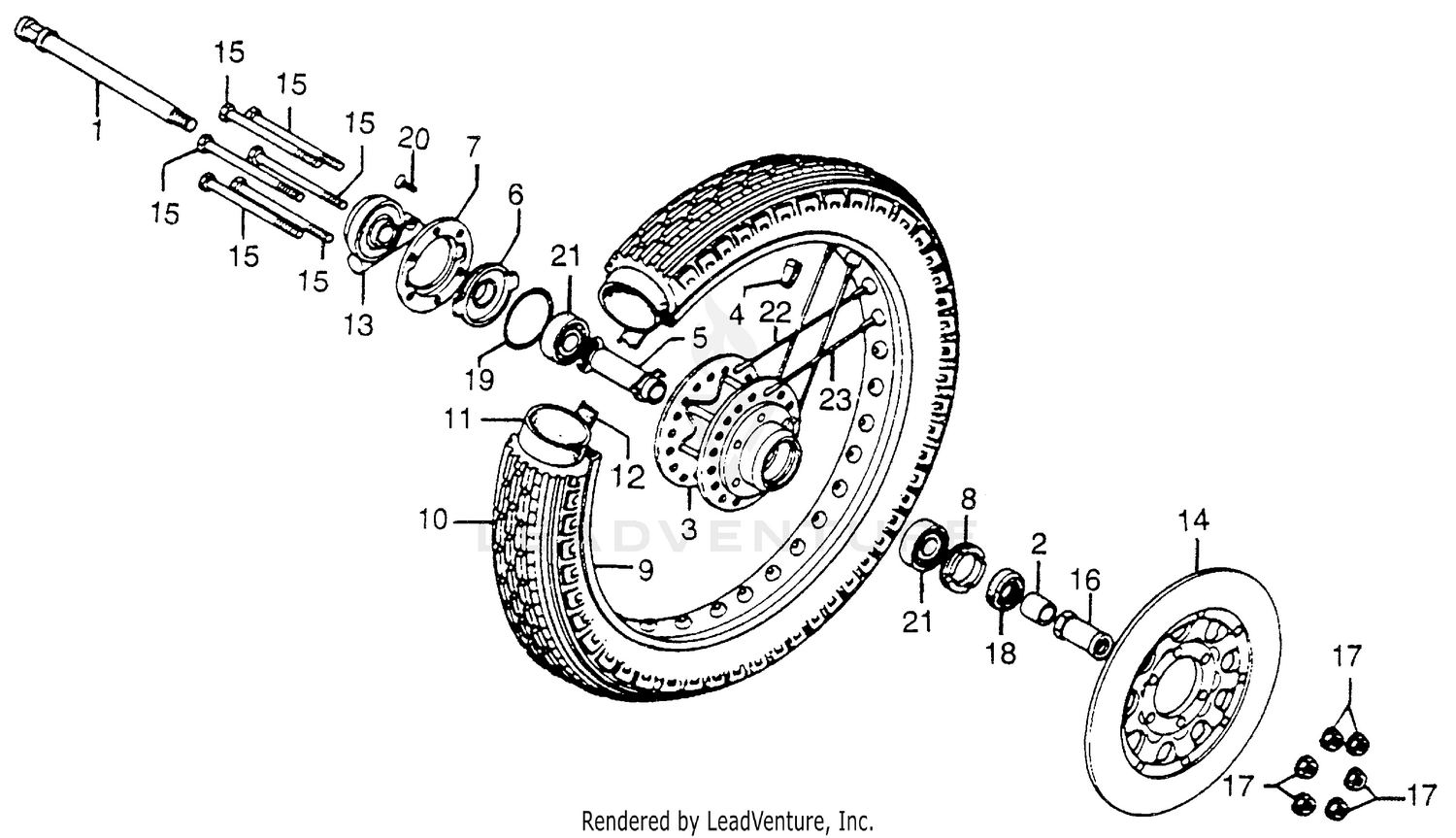

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-393-000
Superseded by 44301-425-870
|
$49.53 | ||
|
Available to order. Add to View Price |
|||
|
#1
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-422-000
Superseded by 44301-425-870
|
$49.53 | ||
|
Unavailable |
|||
|
#1
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-425-870
|
$49.53 | ||
|
Unavailable |
|||
|
#2
COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)
44311-300-000
Superseded by 44311-371-980
|
$51.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
HUB, FR. WHEEL
44601-405-000
|
$334.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALANCER, WHEEL (20G)
44606-283-000
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALANCER, WHEEL (15G)
44607-283-000
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALANCER, WHEEL (10G)
44608-283-000
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALANCER, WHEEL (5G)
44609-283-000
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)
44620-300-020
|
$20.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
RETAINER, GEAR BOX (NOT AVAILABLE)
44641-375-000
|
$43.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, GEAR BOX RETAINER (NOT AVAILABLE)
44642-300-020
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER, FR. WHEEL BEARING
44643-300-000
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIM, FR. WHEEL
44701-300-013
Superseded by 44701-405-771
|
$113.91 | ||
|
Unavailable |
|||
|
#9
RIM, FR. WHEEL
44701-405-771
|
$113.91 | ||
|
Unavailable |
|||
|
#9
RIM, FR. WHEEL
44701-405-771
|
$113.91 | ||
|
Unavailable |
|||
|
#10
TIRE, FR. (3.25H19) (BS) (NOT AVAILABLE)
44711-341-003
|
$83.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, TIRE (3.50-19) (BS)
08400-37110
Superseded by 44712-371-003
|
$52.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, TIRE (3.50-19) (BS)
44712-300-003
Superseded by 44712-371-003
|
$52.13 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (3.50-19) (BS)
44712-371-003
|
$52.13 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (3.50-19) (BS)
44712-371-004
Superseded by 44712-371-003
|
$52.13 | ||
|
Unavailable |
|||
|
#12
FLAP, TIRE (100/90-19) (57S) (BS)
44713-MR1-671
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLAP, TIRE (BS)
44713-371-003
Superseded by 44713-MR1-671
|
$8.80 | ||
|
Unavailable |
|||
|
#12
FLAP, TIRE (1.85-19) (DUNLOP) (NOT AVAILABLE)
44713-371-004
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)
44800-300-030
|
$66.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK, FR. BRAKE (NOT AVAILABLE)
45120-392-000
|
$399.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (8X102) (NOT AVAILABLE)
90122-300-020
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, AXLE (12MM) (NOT AVAILABLE)
90305-333-000
Superseded by 90306-425-870
|
$20.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, AXLE (12MM) (NOT AVAILABLE)
90306-425-870
|
$20.92 | ||
|
Unavailable |
|||
|
#17
NUT, HEX. (8MM)
90309-357-000
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (22X36X8)
91252-300-003
|
$12.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (58X2)
91302-300-000
|
$8.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, OVAL (5X16)
93700-05016-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6302UU)
96140-63020-10
Superseded by 96150-63020-10
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6302UU)
96150-63020-10
|
$17.80 | ||
|
Unavailable |
|||
|
#22
SPOKE AS (8X203)
97451-69246-10
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPOKE BS (8X202.5)
97B11-69245-10
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
