1978 Honda CB750K Speedometer + Tachometer + Pilot OEM Parts

Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

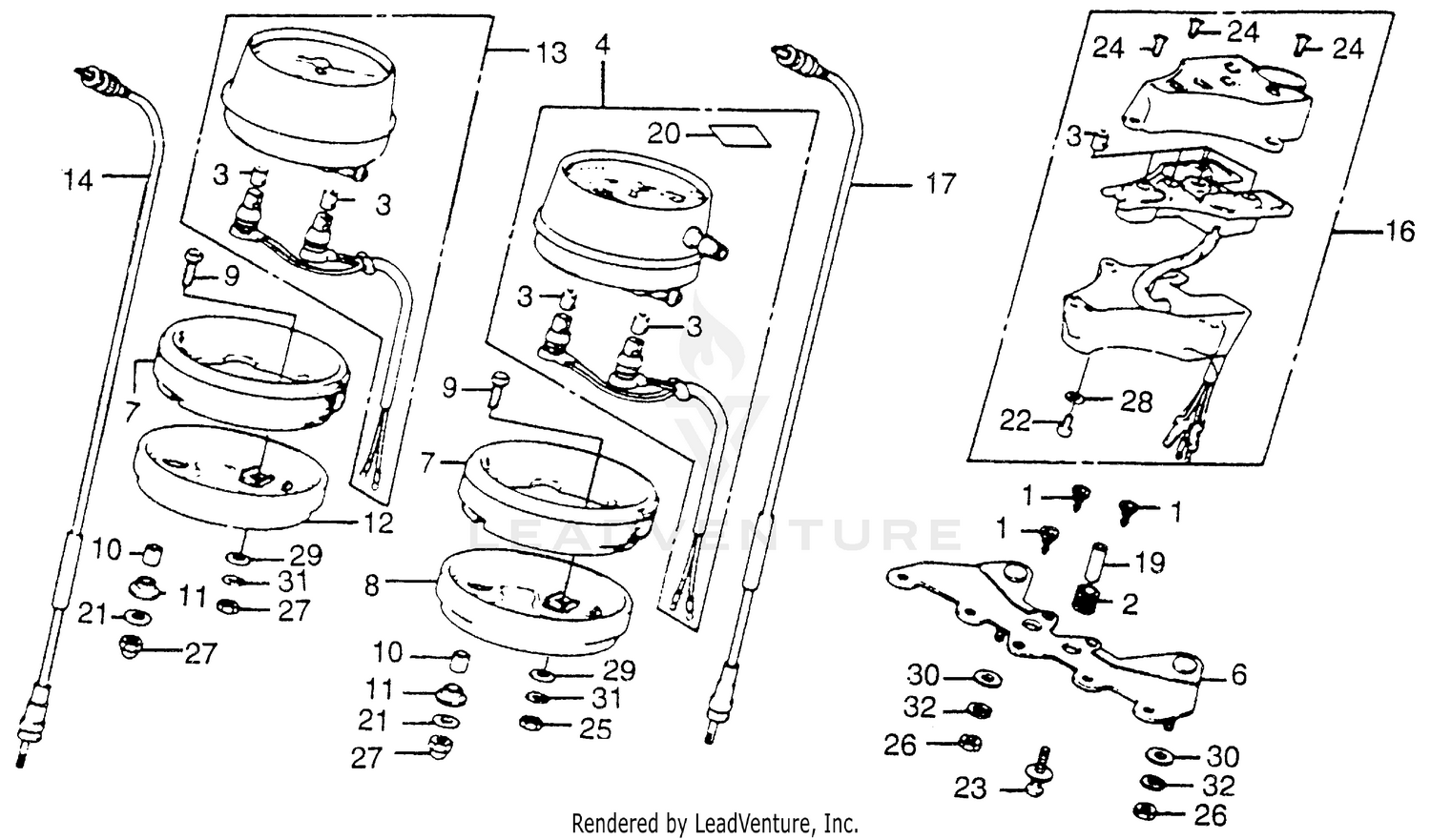

Speedometer + Tachometer + Pilot Diagram

Item MSRP Qty
#1 STOPPER, METER BRACKET (NOT AVAILABLE)
32701-392-700
 $7.22
Available to order.
Add to View Price
#2 GROMMET, METER BRACKET (NOT AVAILABLE)
32702-392-700
 $3.93
Available to order.
Add to View Price
#3 BULB, DASH (12V3.4W) (IMASEN)
34902-259-000
 $2.62
Unavailable
#4 SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE)
37200-405-671
 $233.87
Available to order.
Add to View Price
#6 BRACKET, METER
37211-405-000
 $37.36
Available to order.
Add to View Price
#7 RUBBER, SPEEDOMETER
37235-323-700
 $25.82
Available to order.
Add to View Price
#8 PLATE, SPEEDOMETER (LOWER)
37236-404-000
Superseded by 37236-426-000
 $34.14
Unavailable
#8 PLATE, SPEEDOMETER (LOWER)
37236-426-000
 $34.14
Unavailable
#9 BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)
37238-323-700
 $1.90
Available to order.
Add to View Price
#10 COLLAR, INSTRUMENT SETTING
37243-323-700
 $4.27
Unavailable
#11 RUBBER, METER SETTING
37244-307-670
 $2.93
Available to order.
Add to View Price
#12 PLATE, TACHOMETER (LOWER)
37246-404-000
Superseded by 37246-426-000
 $33.34
Unavailable
#12 PLATE, TACHOMETER (LOWER)
37246-426-000
 $33.34
Unavailable
#13 TACHOMETER ASSY. (NOT AVAILABLE)
37250-405-771
 $196.27
Available to order.
Add to View Price
#14 CABLE ASSY., TACHOMETER
37260-149-000
 $19.67
Available to order.
Add to View Price
#14 CABLE ASSY., TACHOMETER
37260-390-000
Superseded by 37260-149-000
 $19.67
Unavailable
#16 PILOT ASSY., COMBINATION (NIPPON SEIKI) (NOT AVAILABLE)
37600-377-018
 $184.30
Available to order.
Add to View Price
#17 CABLE ASSY., SPEEDOMETER
44830-392-000
Superseded by 44830-426-830
 $29.53
Available to order.
Add to View Price
#17 CABLE ASSY., SPEEDOMETER
44830-MA1-730
Superseded by 44830-426-830
 $29.53
Unavailable
#17 CABLE ASSY., SPEEDOMETER
44830-MA1-730
Superseded by 44830-426-830
 $29.53
Unavailable
#17 CABLE ASSY., SPEEDOMETER
44830-300-672
Superseded by 44830-426-830
 $29.53
Unavailable
#17 CABLE ASSY., SPEEDOMETER
44830-300-672
Superseded by 44830-426-830
 $29.53
Unavailable
#17 CABLE ASSY., SPEEDOMETER
44830-356-000
Superseded by 44830-426-830
 $29.53
Unavailable
#17 CABLE ASSY., SPEEDOMETER
44830-356-000
Superseded by 44830-426-830
 $29.53
Unavailable
#17 CABLE ASSY., SPEEDOMETER
44830-426-830
 $29.53
Unavailable
#17 CABLE ASSY., SPEEDOMETER
44830-426-830
 $29.53
Unavailable
#19 COLLAR, NUMBER BRACKET SETTING (NOT AVAILABLE)
84706-375-000
 $3.04
Available to order.
Add to View Price
#20 LABEL, BREAK IN CAUTION (NOT AVAILABLE)
87523-410-790
 $5.91
Unavailable
#21 WASHER (6.5X18)
90545-323-700
 $2.16
Available to order.
Add to View Price
#22 SCREW, PAN (5X6)
93500-05006-0G
 $0.81
Available to order.
Add to View Price
#23 SCREW-WASHER (5X28) (NOT AVAILABLE)
93894-05028-00
 $0.61
Available to order.
Add to View Price
#24 SCREW, TAPPING (4X10)
93902-24280
 $0.49
Available to order.
Add to View Price
#25 NUT, HEX. (6MM)
94001-06070
Superseded by 94001-06070-0S
 $1.32
Available to order.
Add to View Price
#25 NUT, HEX. (6MM)
94001-06070-0S
 $1.32
Unavailable
#26 NUT, HEX. (8MM)
94001-08070-0S
 $1.42
Available to order.
Add to View Price
#27 NUT, CAP (6MM)
94021-06020
 $1.81
Available to order.
Add to View Price
#28 WASHER, FLAT (5MM)
94101-05700
 $0.98
Available to order.
Add to View Price
#29 WASHER, PLAIN (6MM)
94101-06700
 $0.93
Available to order.
Add to View Price
#30 WASHER, FLAT (8MM)
94101-08700
 $0.98
Available to order.
Add to View Price
#31 WASHER, SPRING (6MM)
94111-06700
 $1.07
Available to order.
Add to View Price
#32 WASHER, SPRING (8MM) (NOT AVAILABLE)
94111-08700
 $0.51
Available to order.
Add to View Price
