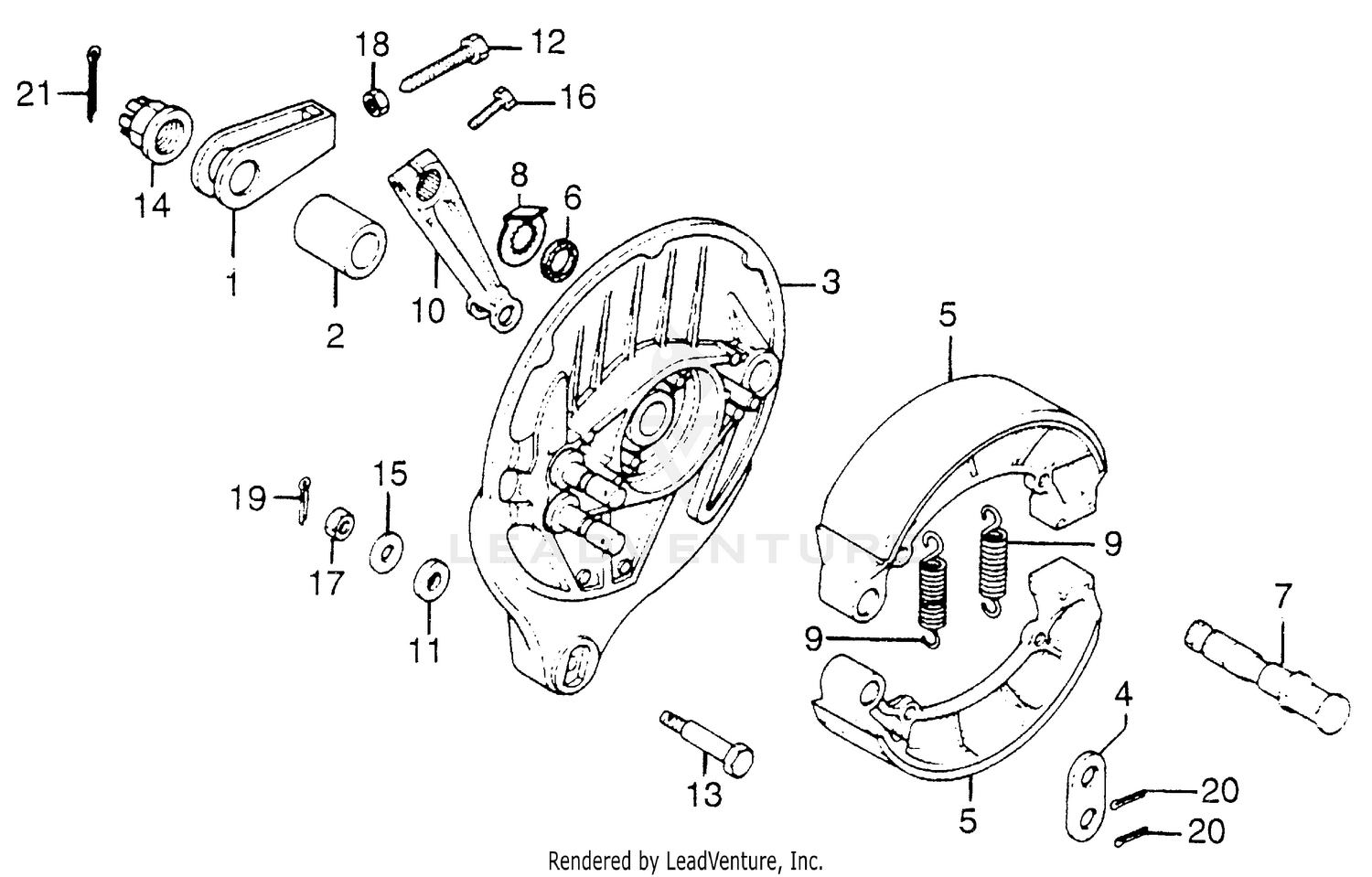

Rear Brake Panel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE KIT, BRAKE
06430-393-405
|
$55.88 | ||
|
Available to order. Add to View Price |
|||
|
#NI
SHOE KIT, BRAKE
431A2-393-006
Superseded by 06430-393-405
|
$55.88 | ||
|
Unavailable |
|||
|
#1
ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)
40543-392-000
|
$32.59 | ||
|
Available to order. Add to View Price |
|||
|
#1
ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)
40543-405-000
Superseded by 40543-392-000
|
$32.59 | ||
|
Unavailable |
|||
|
#2
COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)
42313-393-000
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
PANEL, RR. BRAKE (NOT AVAILABLE)
43100-393-781
|
$315.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
PANEL, RR. BRAKE (NOT AVAILABLE)
43100-405-000
Superseded by 43100-393-781
|
$315.59 | ||
|
Unavailable |
|||
|
#3
PANEL, RR. BRAKE (NOT AVAILABLE)
43100-405-010
Superseded by 43100-393-781
|
$315.59 | ||
|
Unavailable |
|||
|
#4
WASHER, ANCHOR PIN
43102-319-000
|
$7.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, ANCHOR PIN
43106-222-300
Superseded by 43102-319-000
|
$7.46 | ||
|
Unavailable |
|||
|
#5
SHOE KIT, BRAKE
43120-393-003
Superseded by 06430-393-405
|
$55.88 | ||
|
Unavailable |
|||
|
#5
SHOE KIT, BRAKE
43120-393-006
Superseded by 06430-393-405
|
$55.88 | ||
|
Unavailable |
|||
|
#6
DUST SEAL, BRAKE CAM
43134-300-000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM, RR. BRAKE (NOT AVAILABLE)
43141-341-020
|
$37.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, BRAKE INDICATOR (NOT AVAILABLE)
43145-341-010
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, RR. BRAKE SHOE
43151-346-000
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM, RR. BRAKE
43410-405-000
Superseded by 43410-425-000
|
$42.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, STOPPER ARM CUSHION
43434-286-000
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, CHAIN ADJUSTING
90119-300-000
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, RR. BRAKE STOPPER
90127-393-000
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, AXLE (18MM)
90305-393-000
|
$16.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (8X25)
92000-08025-0A
Superseded by 92101-08025-0A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (8X25)
92101-08025-0A
|
$1.73 | ||
|
Unavailable |
|||
|
#17
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (8MM)
94002-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER (2.0X22)
94201-20180
Superseded by 94201-29220
|
$1.03 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (2.0X22)
94201-20200
Superseded by 94201-29220
|
$1.03 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (2.0X22)
94201-20220
|
$1.03 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (2.0X35)
94201-20250
Superseded by 94201-20350
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER (2.0X35)
94201-20280
Superseded by 94201-20350
|
$1.03 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (2.0X35)
94201-20320
Superseded by 94201-20350
|
$1.03 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (2.0X35)
94201-20350
|
$1.03 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (2.0X22)
94201-29220
|
$1.03 | ||
|
Unavailable |
|||
|
#20
PIN, SPLIT (2.5X30)
94201-25200
Superseded by 94201-25300
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.03 | ||
|
Unavailable |
|||
|
#20
PIN, COTTER (2.5MM)
94201-25300
|
$1.03 | ||
|
Unavailable |
|||
|
#21
PIN, COTTER (4.0X30)
94201-40300
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
