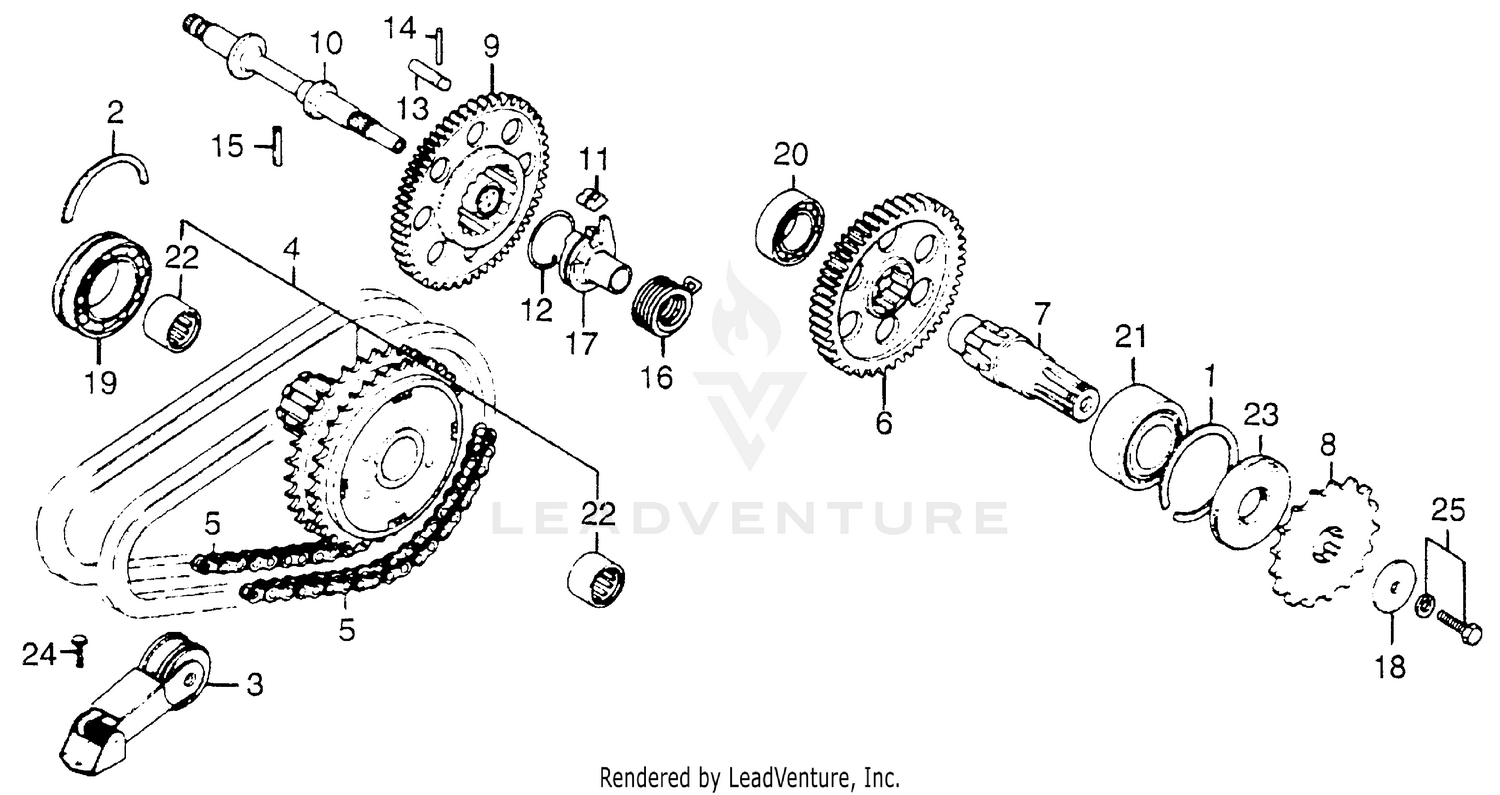

Primary Chain + Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, BEARING SETTING (66.5MM) (NOT AVAILABLE)
13491-300-000
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING B, BALL BEARING SETTING (NOT AVAILABLE)
13496-300-000
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER, PRIMARY CHAIN
13620-300-010
|
$86.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)
23110-392-000
|
$458.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN, PRIMARY (68L) (TAKASAGO)
23131-300-015
Superseded by 23131-300-315
|
$119.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN, PRIMARY (68L) (TAKASAGO)
23131-300-315
|
$119.35 | ||
|
Unavailable |
|||
|
#6
GEAR, FINAL DRIVEN (50T)
23511-392-000
|
$172.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, FINAL DRIVEN
23521-405-000
|
$60.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPROCKET, DRIVE (15T)
23801-405-010
|
$62.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, KICK STARTER (NOT AVAILABLE)
28210-300-000
|
$145.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPINDLE, KICK STARTER
28250-300-020
|
$95.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
PAWL, KICK STARTER
28252-300-020
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, KICK STARTER RATCHET (NOT AVAILABLE)
28253-300-000
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, KICK STOPPER (NOT AVAILABLE)
28254-300-000
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN (4X37) (NOT AVAILABLE)
28255-300-000
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN (6X35) (NOT AVAILABLE)
28256-300-000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, KICK STARTER RETURN (NOT AVAILABLE)
28261-300-010
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLANGE, KICK STARTER (NOT AVAILABLE)
28271-393-000
|
$47.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (8MM) (NOT AVAILABLE)
90401-405-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, SPECIAL BALL (6008) (NOT AVAILABLE)
91004-300-000
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6205)
91006-300-008
Superseded by 96100-62050-00
|
$21.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6205)
96100-62050
Superseded by 96100-62050-00
|
$21.59 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6205)
96100-62050-00
|
$21.59 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6205)
96100-62050-10
|
$23.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (5206)
91008-300-008
Superseded by 91012-MG7-003
|
$104.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (5206)
91012-MG7-003
|
$104.01 | ||
|
Unavailable |
|||
|
#22
BEARING, NEEDLE (25X32X20)
91010-300-008
|
$20.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (29.8X62X7)
91205-405-005
|
$11.71 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. (6X16)
92000-06016
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. (6X16)
92000-06016-0A
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (6X16)
92000-06016-1A
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (6X16)
92100-06016-0A
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (6X16)
92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (6X16)
92200-06016-0A
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#25
BOLT-WASHER (8X20)
93402-08020-00
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT-WASHER (8X20)
93412-08020-00
Superseded by 93402-08020-00
|
$1.91 | ||
|
Unavailable |
|||
|
#25
BOLT-WASHER (8X20)
93482-08020-00
Superseded by 93402-08020-00
|
$1.91 | ||
|
Unavailable |
|||
