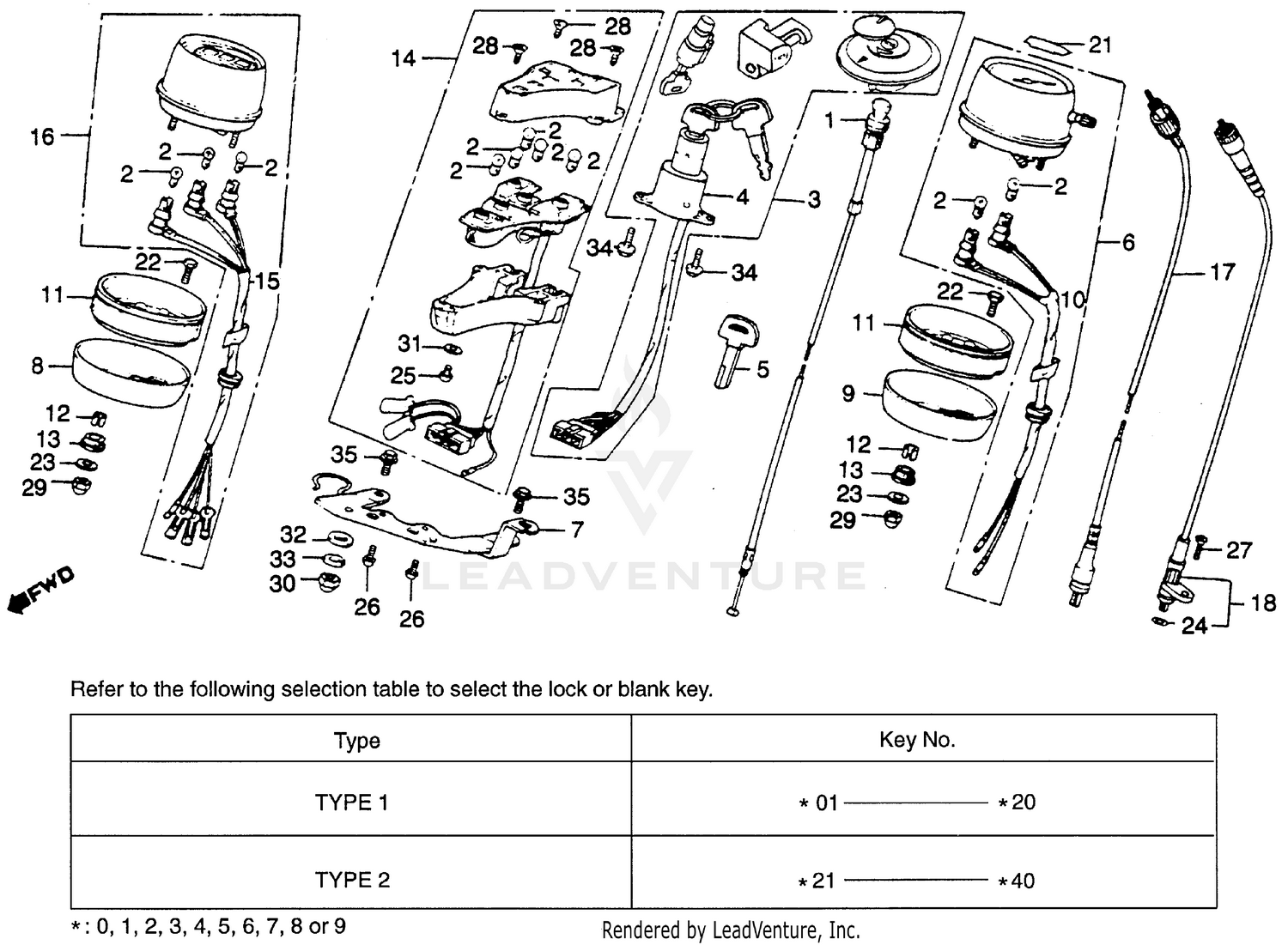

Cm450a Instrument Key Set Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, CHOKE
17950-448-000
|
$29.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (14V 3.4W) (NS)
34908-GA7-701
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (14V 3.4W) (NS)
37102-567-009
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#2
BULB (12V3.4W2CP) (158) (NS)
37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#2
BULB (14V 3.4W) (NS)
37237-SA5-004
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#3
LOCK SET (NOT AVAILABLE)
35010-MC0-673
|
$115.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., COMBINATION
35100-413-007
|
$63.80 | ||
|
Unavailable |
|||
|
#5
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35111-MA6-007
Superseded by 35122-KW3-771
|
$11.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
KEY, BLANK (TYPE1)
35121-KW3-771
|
$11.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-MA6-811
Superseded by 35121-KW3-771
|
$11.70 | ||
|
Unavailable |
|||
|
#5
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-390-811
Superseded by 35121-KW3-771
|
$11.70 | ||
|
Unavailable |
|||
|
#5
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-413-811
Superseded by 35121-KW3-771
|
$11.70 | ||
|
Unavailable |
|||
|
#5
KEY, BLANK (TYPE2)
35122-KW3-771
|
$11.70 | ||
|
Unavailable |
|||
|
#5
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-MA6-811
Superseded by 35122-KW3-771
|
$11.70 | ||
|
Unavailable |
|||
|
#5
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-413-811
Superseded by 35122-KW3-771
|
$11.70 | ||
|
Unavailable |
|||
|
#6
SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)
37200-MC1-670
|
$300.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, INSTRUMENT (NOT AVAILABLE)
37211-447-000
|
$32.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, R. INSTRUMENT SETTING (NOT AVAILABLE)
37212-448-000
|
$20.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, L. METER SETTING
37213-447-000
|
$42.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
SOCKET (NOT AVAILABLE)
37223-MC0-670
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, METER
37242-323-701
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, INSTRUMENT SETTING
37243-453-000
|
$2.17 | ||
|
Unavailable |
|||
|
#13
RUBBER, METER SETTING
37244-307-670
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
PILOT ASSY., COMBINATION (NOT AVAILABLE)
37600-MC1-670
|
$89.51 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE (NOT AVAILABLE)
37619-MC1-670
|
$22.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
INDICATOR ASSY. (NOT AVAILABLE)
37650-MC1-670
|
$120.14 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE ASSY., SPEEDOMETER
44830-MA1-730
Superseded by 44830-426-830
|
$29.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE ASSY., SPEEDOMETER
44830-MC0-670
Superseded by 44830-426-830
|
$29.53 | ||
|
Unavailable |
|||
|
#17
CABLE ASSY., SPEEDOMETER
44830-300-672
Superseded by 44830-426-830
|
$29.53 | ||
|
Unavailable |
|||
|
#17
CABLE ASSY., SPEEDOMETER
44830-356-000
Superseded by 44830-426-830
|
$29.53 | ||
|
Unavailable |
|||
|
#17
CABLE ASSY., SPEEDOMETER
44830-392-000
Superseded by 44830-426-830
|
$29.53 | ||
|
Unavailable |
|||
|
#17
CABLE ASSY., SPEEDOMETER
44830-426-830
|
$29.53 | ||
|
Unavailable |
|||
|
#21
LABEL, BREAK IN CAUTION
87523-413-710
|
$2.52 | ||
|
Unavailable |
|||
|
#22
BOLT, METER SETTING
90159-356-000
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (6.5X18)
90545-323-700
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (5X6)
93500-05006-0G
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (5X10)
93500-05010-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, TAPPING (4X10)
93902-24280
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, CAP (6MM)
94021-06020
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, CAP (8MM)
94021-08020-0S
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, FLAT (5MM)
94101-05700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (8MM)
94101-08000
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.65 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (8X14)
95700-08014-07
Superseded by 95701-08014-07
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (8X14)
95701-08014-07
|
$1.13 | ||
|
Unavailable |
|||
