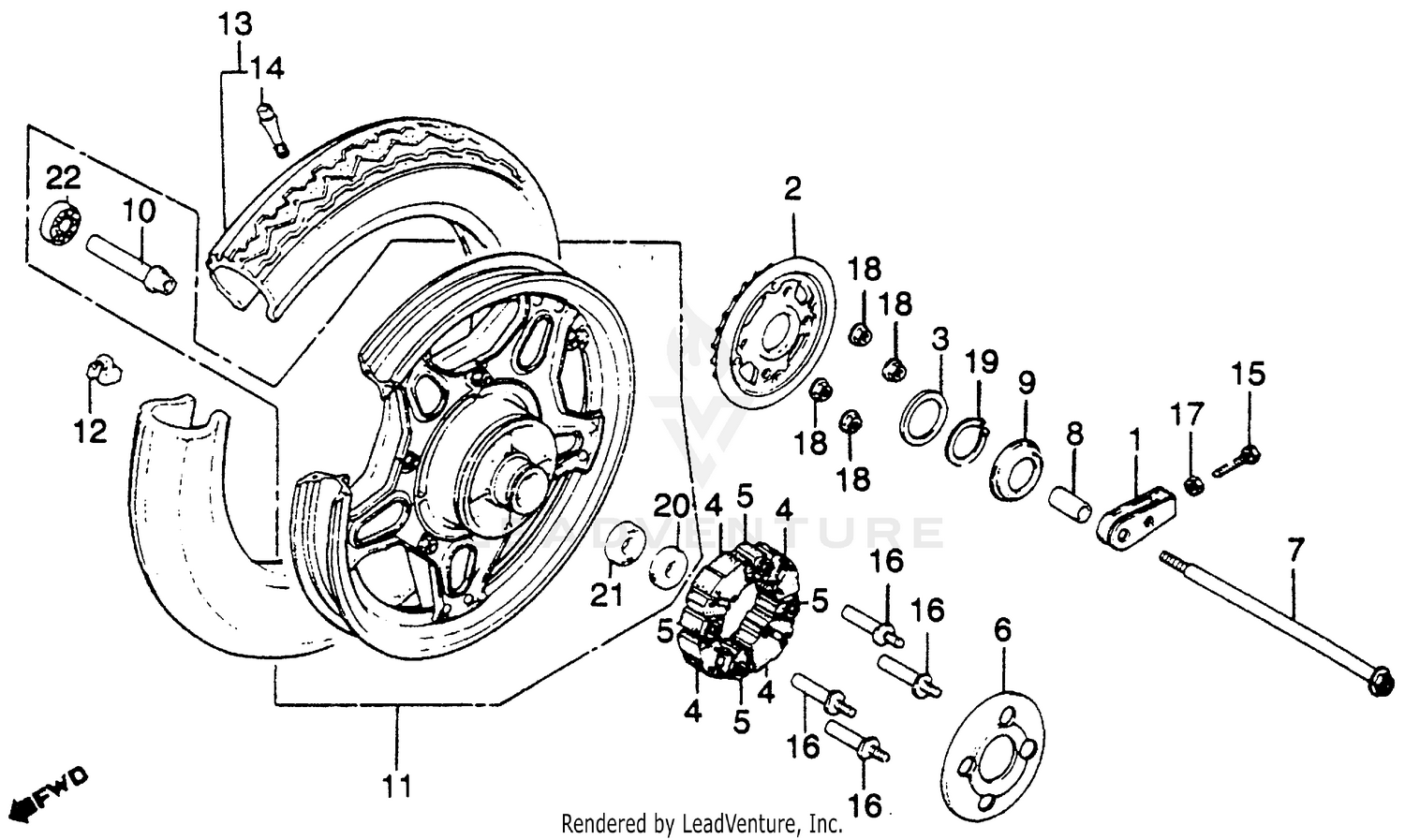

Cm450a/crear Wheel 82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ADJUSTER, DRIVE CHAIN
40543-443-760
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (34T) (NOT AVAILABLE)
41200-MC0-670
|
$58.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (80X65)
41204-413-780
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, RR. WHEEL DAMPER (NOT AVAILABLE)
41241-MC0-670
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. WHEEL DAMPER
41242-413-780
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, RR. WHEEL DAMPER (NOT AVAILABLE)
41265-413-780
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
AXLE, RR. WHEEL (NOT AVAILABLE)
42301-KE7-000
|
$33.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
AXLE, RR. WHEEL (NOT AVAILABLE)
42301-MC0-670
Superseded by 42301-KE7-000
|
$33.44 | ||
|
Unavailable |
|||
|
#8
COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)
42311-413-000
|
$16.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SPROCKET SIDE DUST
42604-413-780
|
$8.93 | ||
|
Unavailable |
|||
|
#10
COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)
42624-413-000
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#11
WHEEL, RR. (NOT AVAILABLE)
42650-447-750
|
$538.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
WEIGHT, BALANCE (20G)
42705-410-000
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
WEIGHT, BALANCE (30G)
42706-410-000
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
TIRE ASSY., RR. (4.60S16) (4PR) (BS) (NOT AVAILABLE)
42710-MC0-671
|
$63.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
TIRE, RR. (4.60-16) (OHTSU)
42710-447-732
Superseded by 42711-447-732
|
$71.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
TIRE, RR. (4.60-16) (OHTSU)
42710-447-733
Superseded by 42711-447-732
|
$71.50 | ||
|
Unavailable |
|||
|
#13
TIRE, RR. (4.60-16) (OHTSU)
42711-447-673
Superseded by 42711-447-732
|
$71.50 | ||
|
Unavailable |
|||
|
#13
TIRE, RR. (4.60-16) (OHTSU)
42711-447-732
|
$71.50 | ||
|
Unavailable |
|||
|
#14
VALVE, RIM (BS)
42753-415-006
Superseded by 42753-425-003
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE, RIM (BS)
42753-425-003
|
$12.75 | ||
|
Unavailable |
|||
|
#14
VALVE, RIM (BS)
42753-425-004
Superseded by 42753-425-003
|
$12.75 | ||
|
Unavailable |
|||
|
#15
BOLT, CHAIN ADJUSTING
90119-413-000
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPROCKET FIXING
90128-KE5-000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPROCKET FIXING
90128-369-000
Superseded by 90128-KE5-000
|
$9.45 | ||
|
Unavailable |
|||
|
#17
NUT, CHAIN ADJUSTING
90307-283-000
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (10MM)
90308-357-000
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP (OUTER) (65MM)
90665-329-000
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#20
DUST SEAL (30X52X7)
91253-442-003
|
$16.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
DUST SEAL (30X52X7)
91253-442-004
Superseded by 91253-442-003
|
$16.18 | ||
|
Unavailable |
|||
|
#21
BEARING, RADIAL BALL (6304Z)
96120-63040-10
|
$25.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6303U)
96140-63030-10
|
$16.78 | ||
|
Available to order. Add to View Price |
|||
