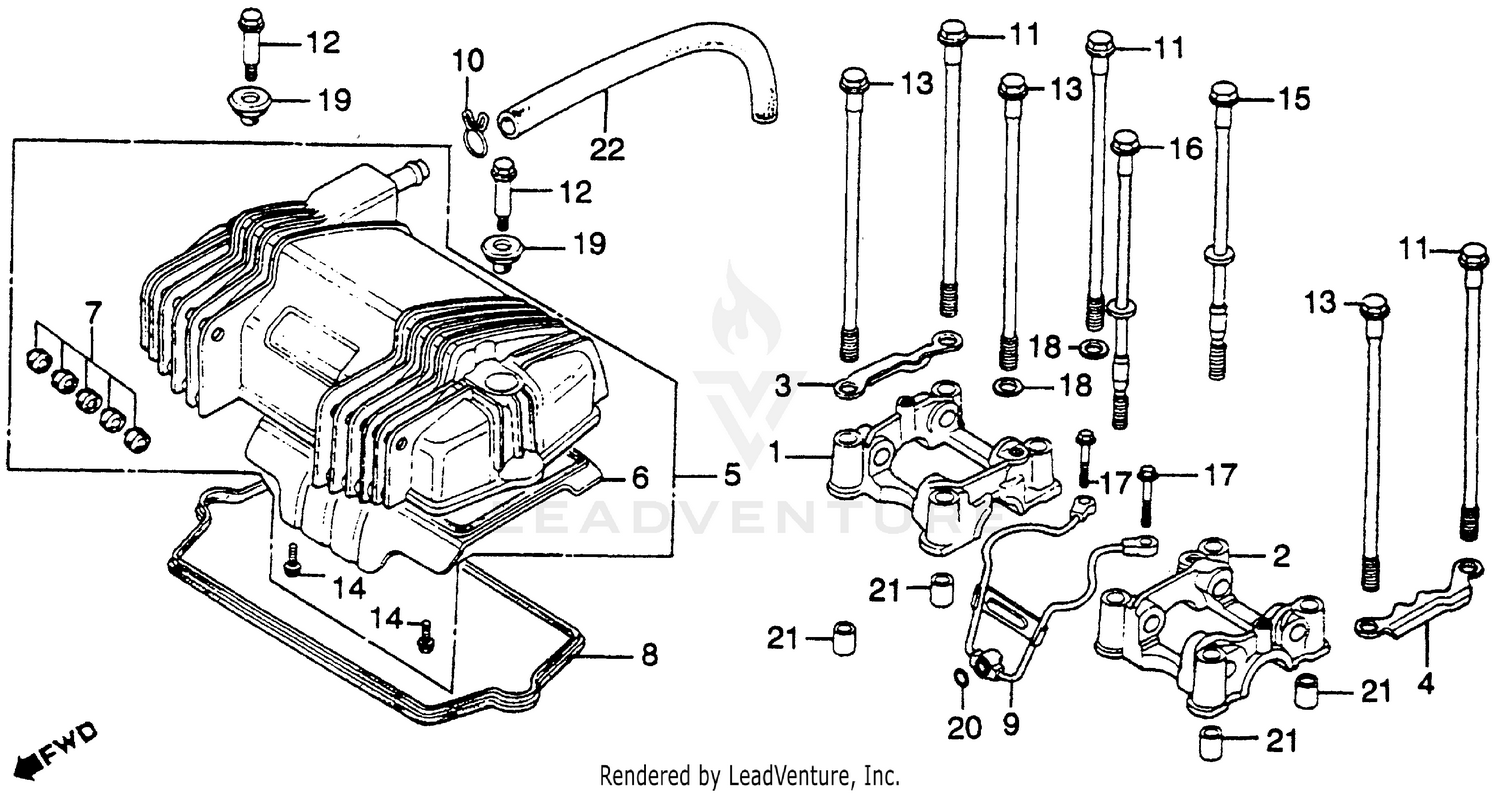

Cylinder Head Cover + Camshaft Holder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, R. CAMSHAFT
12210-MC0-000
|
$89.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, L. CAMSHAFT
12220-MC0-000
|
$97.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, R. VALVE ROCKER ARM SHAFT SETTING
12221-413-000
|
$9.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, L. VALVE ROCKER ARM SHAFT SETTING
12222-413-000
|
$9.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER ASSY., CYLINDER HEAD (NOT AVAILABLE)
12300-413-000
|
$160.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, BREATHER (NOT AVAILABLE)
12321-413-010
|
$27.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, INSERT
12324-413-000
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, HEAD COVER
12328-413-830
|
$31.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE A, OIL (NOT AVAILABLE)
15510-MC0-000
|
$55.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP, AIR HOSE (16)
18534-634-670
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, CYLINDER (212) (NO GROMMET)
90081-MC0-000
|
$15.86 | ||
|
Unavailable |
|||
|
#12
BOLT, HEAD COVER
90082-413-000
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CYLINDER (222) (NO GROMMET)
90083-MC0-000
|
$16.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X10)
90083-657-000
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CYLINDER (212B) (W/GROMMET)
90087-MC0-000
Superseded by 90087-MC0-010
|
$25.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CYLINDER (212B) (W/GROMMET)
90087-MC0-010
|
$25.17 | ||
|
Unavailable |
|||
|
#15
BOLT, CYLINDER (212B) (W/GROMMET)
90087-ML4-610
Superseded by 90087-MC0-010
|
$25.17 | ||
|
Unavailable |
|||
|
#16
BOLT, CYLINDER (222B) (W/GROMMET)
90088-MC0-000
Superseded by 90088-MC0-010
|
$25.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CYLINDER (222B) (W/GROMMET)
90088-MC0-010
|
$25.17 | ||
|
Unavailable |
|||
|
#16
BOLT, CYLINDER (222B) (W/GROMMET)
90088-ML4-610
Superseded by 90088-MC0-010
|
$25.17 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X35) (NOT AVAILABLE)
90140-MC0-000
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (10MM)
90403-ML4-610
Superseded by 90403-ML4-611
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (10MM)
90403-413-000
Superseded by 90403-ML4-611
|
$6.77 | ||
|
Unavailable |
|||
|
#18
WASHER (10MM)
90403-413-010
Superseded by 90403-ML4-611
|
$6.77 | ||
|
Unavailable |
|||
|
#19
WASHER, HEAD COVER
90441-413-000
Superseded by 90441-413-830
|
$10.74 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, HEAD COVER
90441-413-830
|
$10.74 | ||
|
Unavailable |
|||
|
#20
O-RING (8.5X1.7)
90751-MC0-000
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN A, DOWEL (14X20)
94301-14200
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULK HOSE, VACUUM (12X1000) (12X260) (BULK HOSE: 95005-12003-10M)
95005-12001-20M
|
$39.53 | ||
|
Available to order. Add to View Price |
|||
