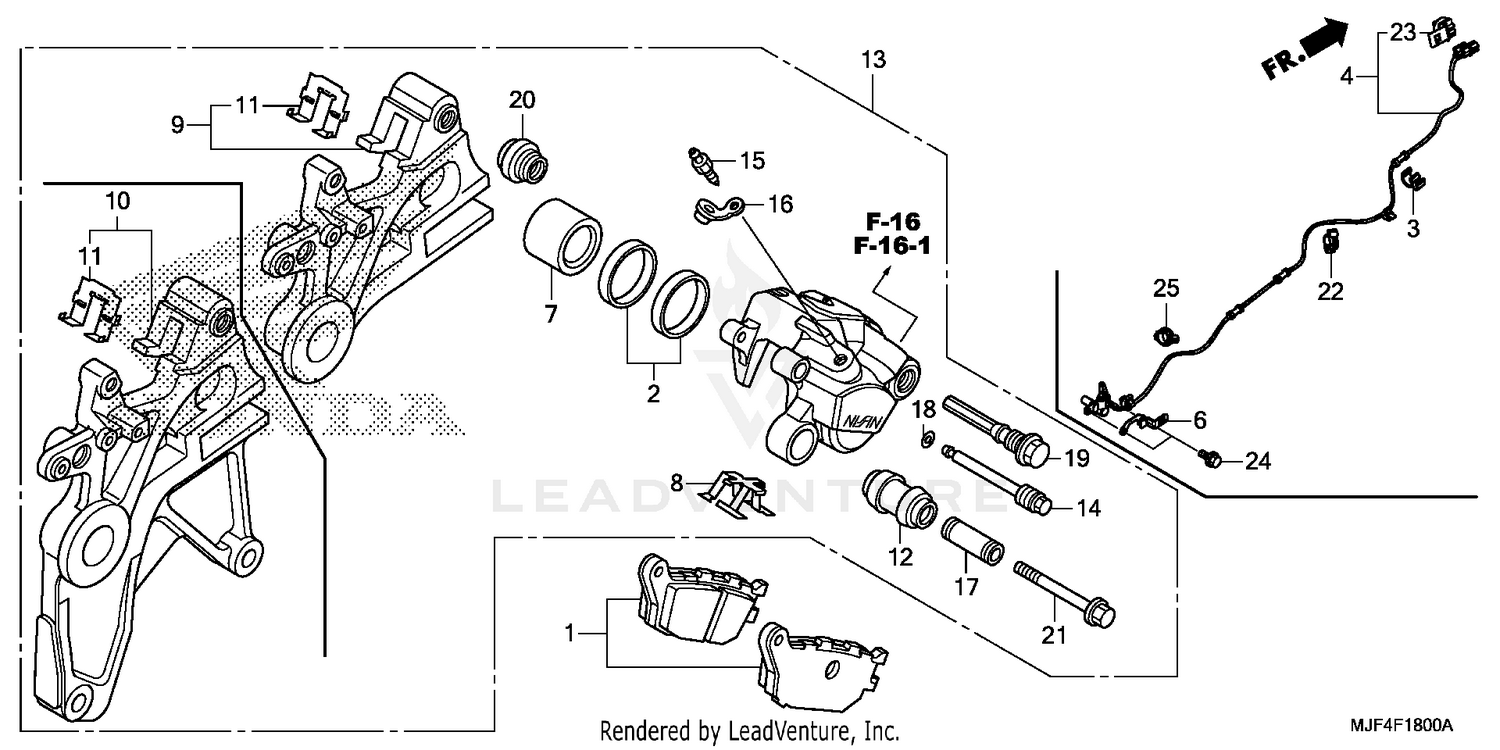

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAD SET, RR.
06435-MGS-D31
Superseded by 06435-MGS-D32
|
$58.19 | ||
|
Available to order. Add to View Price |
|||
|
#1
PAD SET, RR.
06435-MGS-D32
|
$58.19 | ||
|
Unavailable |
|||
|
#2
SEAL SET, PISTON
06451-443-405
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, PIPE
11152-KS4-003
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
SENSOR, RR. WHEEL SPEED
38510-MJF-C11
|
$246.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, SPEED SENSOR
38555-MGS-D80
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON
43107-KT7-761
|
$43.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, PAD
43108-MBB-006
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, RR. (NISSIN)
43110-MJF-A21
|
$285.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
RETAINER
43112-KT7-761
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT, SLEEVE
43132-KT7-761
|
$9.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER SUB-ASSY., RR. BRAKE (NISSIN)
43150-MJF-A21
|
$454.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, HANGER
43215-KZ4-J41
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, BLEEDER
43353-461-771
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
SLEEVE
45111-MA3-006
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING, STOPPER
45111-MAJ-G41
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, PIN
45131-MN9-006
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT B
45133-MA3-006
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X49)
90180-MN8-006
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, CABLE (14MM)
90690-MCA-003
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, CONNECTOR (BLACK)
91565-SEL-003
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, CABLE (13MM)
90690-MJF-C11
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
