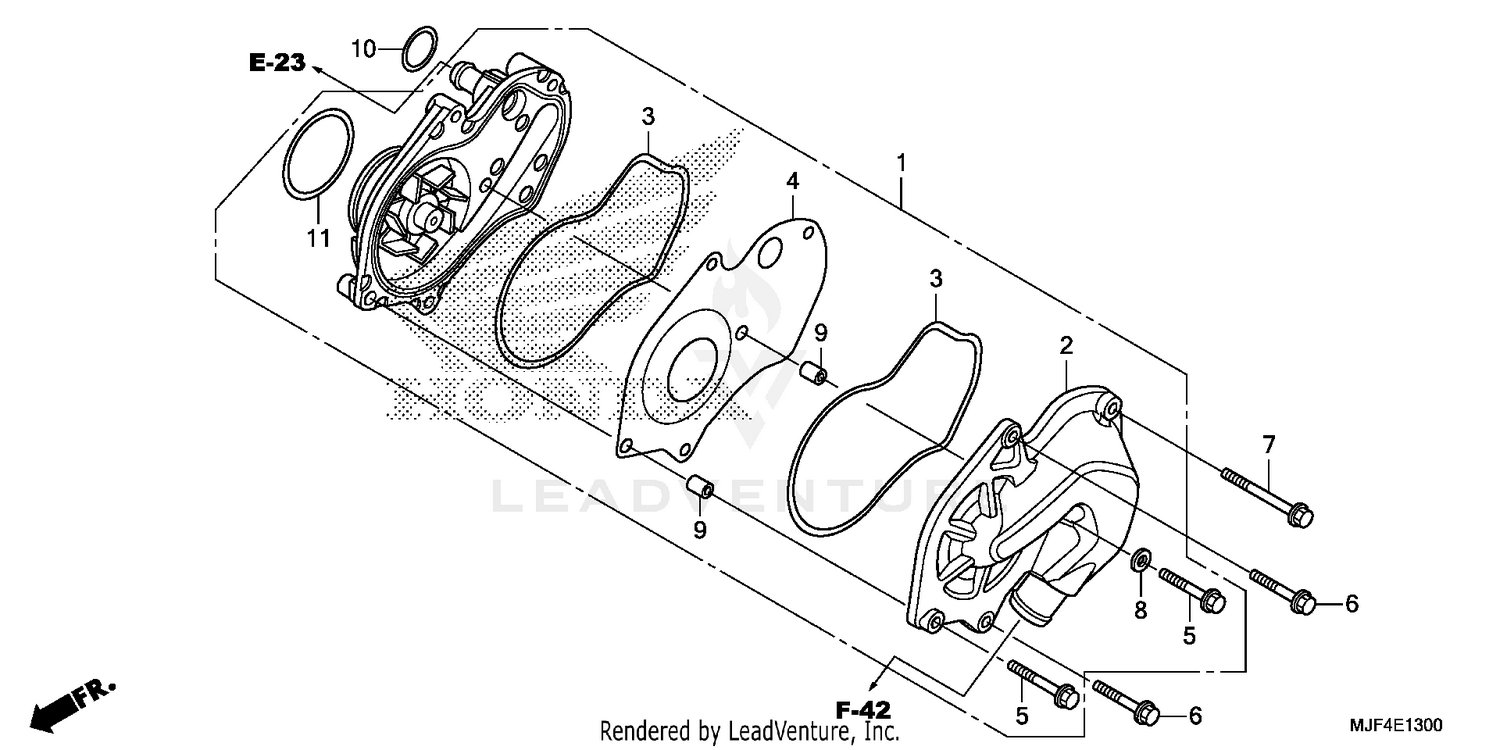

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY.
19200-MGS-D10
|
$312.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, WATER PUMP
19221-MGS-D10
|
$142.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, WATER PUMP BODY
19226-MGS-D30
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, WATER PUMP
19231-MGS-D30
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE (6X32) (NSHF)
90006-GHB-690
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X35) (NSHF)
90006-GHB-700
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X50) (NSHF)
90006-GHB-730
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SEALING (6.5MM)
90406-MGS-D30
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL (8X10)
90704-MGS-D30
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (22X2) (ARAI)
91301-GK1-003
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (23.5X2)
91306-ZY3-003
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (48X2.6)
91301-MGS-D30
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
