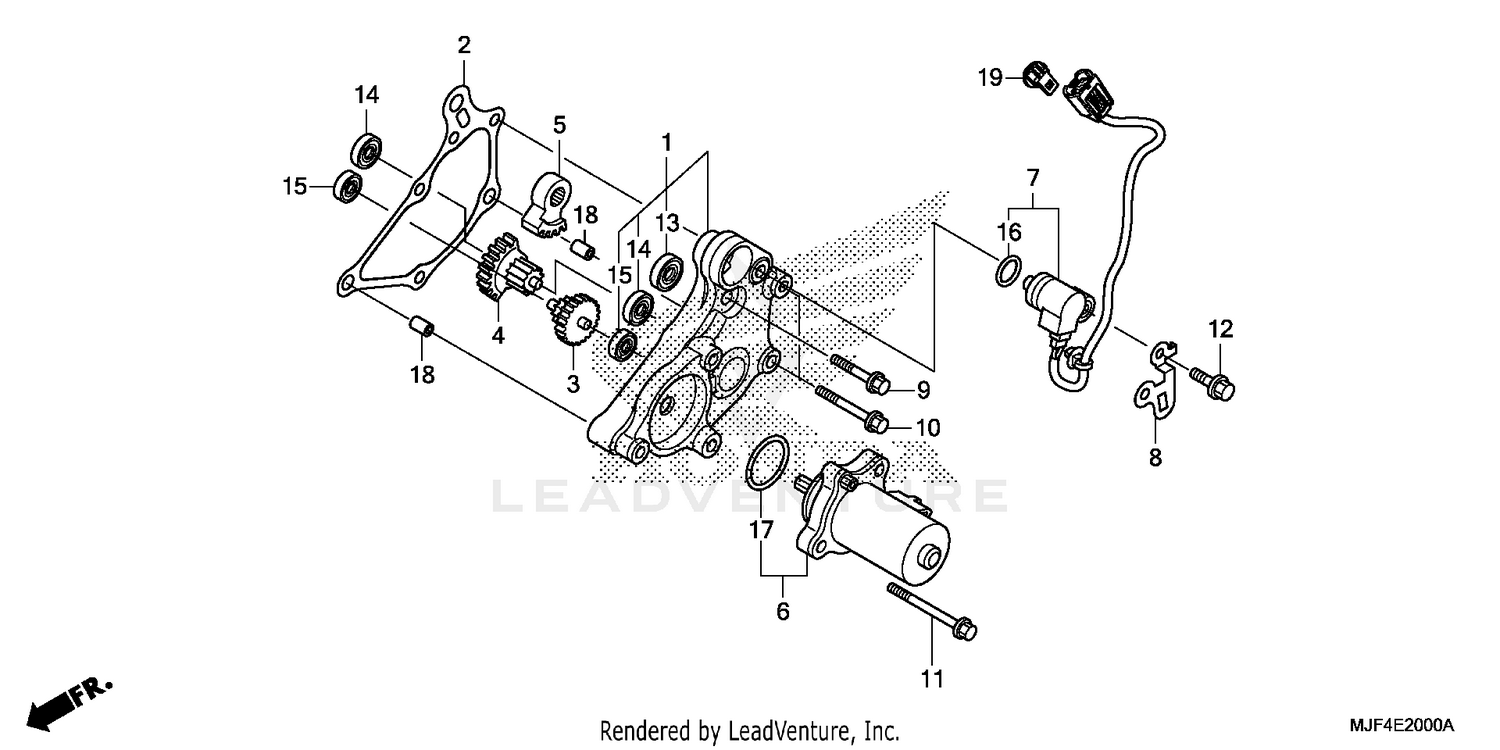

Reduction Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, REDUCTION GEAR
11520-MGS-D20
|
$116.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
11523-MGS-D20
Superseded by 11523-MGS-D21
|
$12.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, SHIFT REDUCTION (45T/7T)
24615-MGE-D01
|
$73.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, SHIFT REDUCTION (32T/13T)
24616-MGS-D21
|
$72.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, SHIFT REDUCTION (42T)
24617-MGE-D01
|
$59.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTOR ASSY., RATIO CONTROL
31300-MJF-A20
|
$302.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
SENSOR ASSY., ANGLE
38800-MGS-D21
|
$262.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, ANGLE SENSOR WIRE
38815-MGS-D20
|
$3.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X28)
90001-MGS-D20
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X40)
90002-MGS-D20
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X60)
90003-MGS-D20
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, KNOCK (6MM)
90011-MGE-D00
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (699ZZ)
91025-MGS-D21
|
$12.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (607ZZ)
91026-MGS-D21
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (696ZZ)
91027-MGS-D21
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (16.5X2.5)
91310-MGE-D01
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING, CONTROL MOTOR
91351-HM8-A51
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL (8X10)
94301-08100
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, CONNECTOR (BLACK)
91565-SEL-003
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
