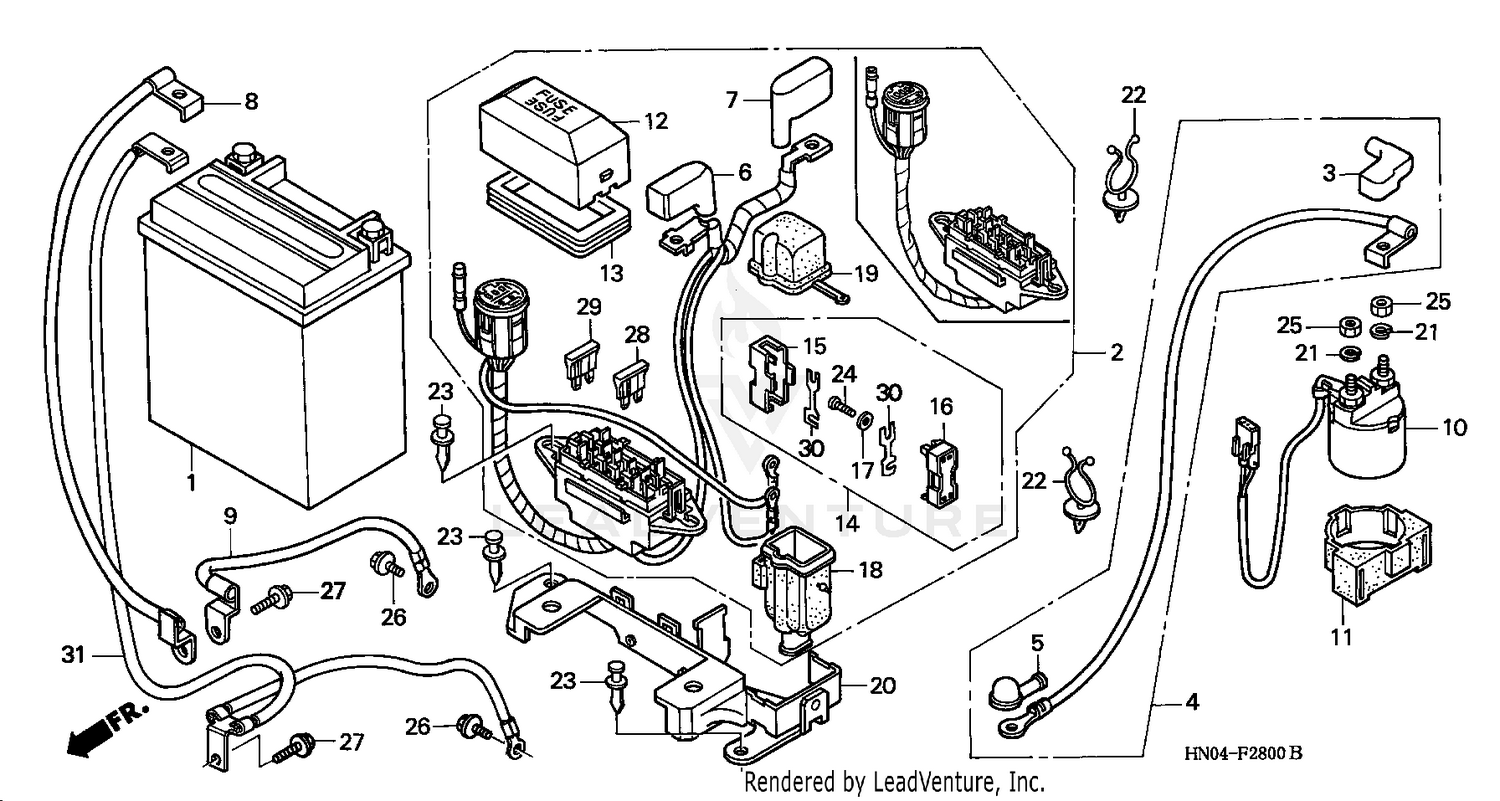

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY (YTX14-BS) (YUASA) (MSDS)
31500-HC4-726
Superseded by 31500-HC4-726AH
|
$122.26 | ||
|
Unavailable |
|||
|
#1
BATTERY (YTX14-BS) (YUASA)
31500-HC4-726AH
|
$122.26 | ||
|
Unavailable |
|||
|
#2
CABLE, STARTER BATTERY
32401-HN0-A00
|
$120.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER A, STARTER MAGNETIC
32404-HM5-730
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE, STARTER MOTOR
32405-HM7-000
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, TERMINAL
32411-473-000
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, BATTERY TERMINAL
32412-751-A30
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, BATTERY TERMINAL
32414-MW0-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE, BATTERY GROUND
32601-HM7-700
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, GROUND
32603-HM7-000
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., STARTER MAGNETIC
35850-HM7-000
|
$138.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, MAGNETIC SHOCK
35856-KC1-700
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, FUSE CASE
38224-HN0-A00
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, FUSE CASE
38225-HA7-671
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOX, MAIN FUSE
38250-ME9-005
|
$43.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER (NOT AVAILABLE)
38251-MA6-005
Superseded by 38251-KJ9-000
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
BASE
38252-ME9-005
|
$23.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (3X10)
38253-422-005
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
SUSPENSION, FUSE CASE
38254-HA0-000
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, FUSE CASE SUSPENSION
38255-HA0-000
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, ELECTRIC
50326-HM7-000
|
$57.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING (6MM)
90052-ZA0-800
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP, HARNESS
90119-HA7-670
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (3X8)
93500-03008-0H
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
94002-06390-0S
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUSE, BLADE (10A)
98200-31000
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#29
FUSE, BLADE (15A)
98200-31500
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#30
FUSE F (30A)
98200-53000
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
