2000 Honda FOURTRAX FOREMAN S Carburetor OEM Parts

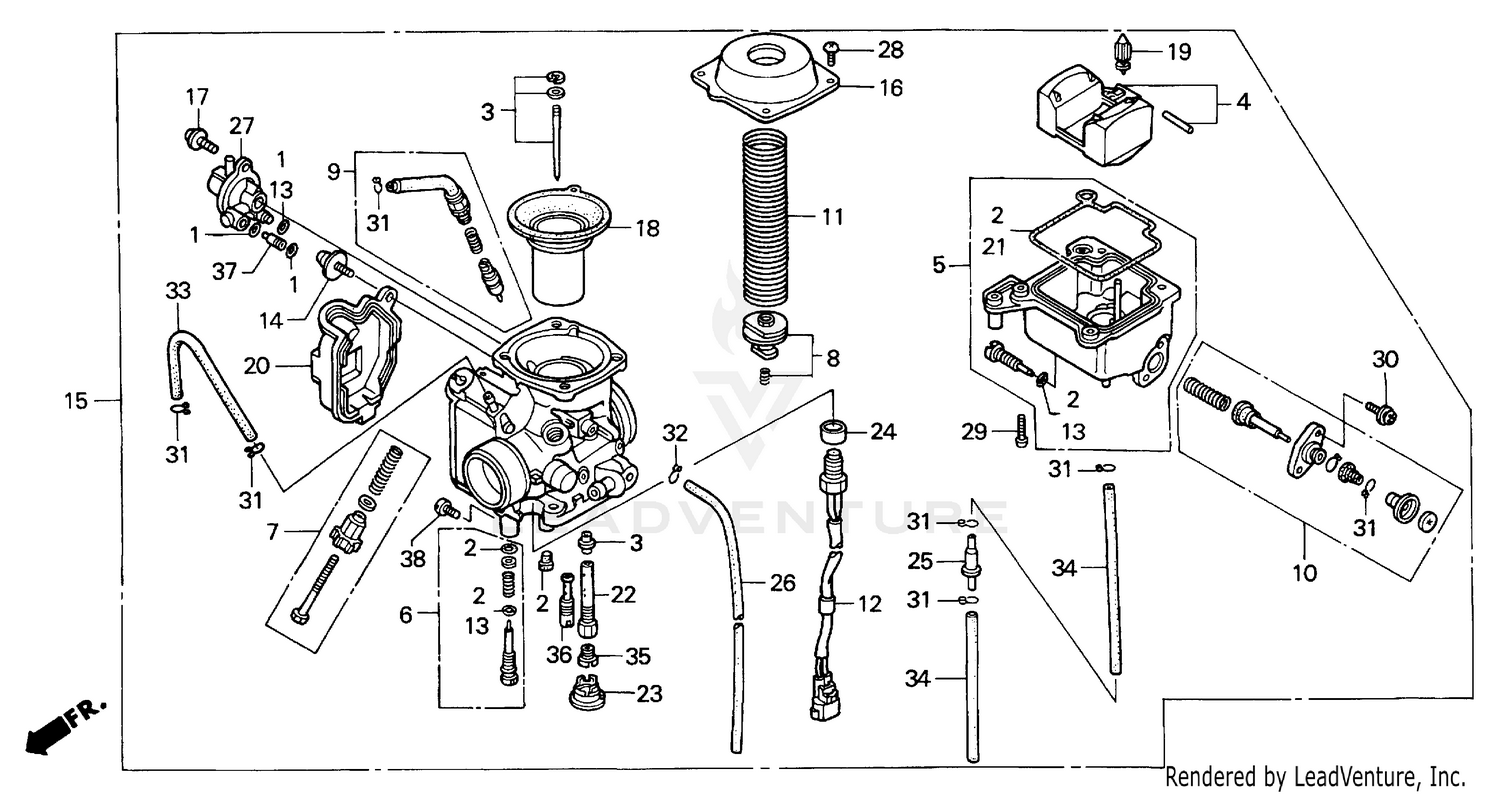

Carburetor Diagram

Item	MSRP	Qty
#1 GASKET SET C 16010-HM7-670 Superseded by 16041-MZ5-600	$20.89
Available to order. Add to View Price
#2 GASKET SET 16010-HM7-700	$28.90
Available to order. Add to View Price
#3 NEEDLE SET, JET 16012-HN0-A00	$36.05
Available to order. Add to View Price
#4 FLOAT SET 16013-KR3-980	$64.06
Available to order. Add to View Price
#5 CHAMBER SET, FLOAT 16015-HM7-700	$118.32
Available to order. Add to View Price
#6 SCREW SET 16016-HM7-670	$34.27
Available to order. Add to View Price
#7 SCREW SET 16028-HM5-730	$19.80
Available to order. Add to View Price
#8 PLATE SET, VALVE 16037-HM5-L00	$22.02
Available to order. Add to View Price
#9 VALVE SET, STARTER 16046-HM5-730	$78.23
Available to order. Add to View Price
#10 PUMP SET 16048-HM7-700 Superseded by 16048-HN7-003	$101.61
Available to order. Add to View Price
#11 SPRING, COMPRESSION COIL 16050-HM5-L00	$12.99
Available to order. Add to View Price
#12 HEATER ASSY. 16070-HN0-A00 Superseded by 16070-HN0-A01	$60.53
Available to order. Add to View Price
#12 HEATER ASSY. 16070-HN0-A01	$60.53
Unavailable
#13 O-RING (1.3X4.3) 16075-GHB-640	$3.17
Available to order. Add to View Price
#14 SCREW-WASHER 16080-HC0-003	$4.98
Available to order. Add to View Price
#15 CARBUERATOR ASSY 16100-HN0-A00 Superseded by 16100-HN0-306	$687.75
Unavailable
#15 CARBUERATOR ASSY 16100-HN0-A02 Superseded by 16100-HN0-306	$687.75
Unavailable
#16 TOP 16107-KM3-702	$47.78
Available to order. Add to View Price
#17 SCREW 16108-MW0-750	$2.75
Available to order. Add to View Price
#18 PISTON, VACUUM 16111-HM7-670	$107.43
Available to order. Add to View Price
#19 VALVE, FLOAT 16155-397-971	$48.04
Available to order. Add to View Price
#20 COVER, BODY 16157-HC4-003 Superseded by 16157-HN8-003	$31.56
Available to order. Add to View Price
#20 COVER, BODY 16157-HN8-003	$31.56
Unavailable
#21 GASKET, FLOAT CHAMBER 16163-HM7-700	$11.64
Available to order. Add to View Price
#22 HOLDER, NEEDLE JET 16165-HC4-840 Superseded by 16165-HN5-B01	$41.18
Available to order. Add to View Price
#22 HOLDER, NEEDLE JET 16165-HN5-B01	$41.18
Unavailable
#23 HOLDER, JET 16168-HC4-003	$14.19
Available to order. Add to View Price
#24 COLLAR, SETTING 16172-HN0-A00	$2.40
Available to order. Add to View Price
#25 VALVE, ONE-WAY 16180-HC4-003	$20.89
Available to order. Add to View Price
#26 TUBE 16199-HM7-670	$6.84
Available to order. Add to View Price
#27 VALVE ASSY., AIR CUT 16510-MZ5-700	$128.70
Available to order. Add to View Price
#28 SCREW, PAN (4X8) 93500-04008-0H	$0.90
Available to order. Add to View Price
#28 SCREW, PAN (4X8) 93500-04008-1H Superseded by 93500-04008-0H	$0.90
Unavailable
#29 SCREW, PAN (4X14) 93500-04014-0H	$0.81
Available to order. Add to View Price
#29 SCREW, PAN (4X14) 93500-04014-1H Superseded by 93500-04014-0H	$0.81
Unavailable
#30 SCREW-WASHER (4X12) 93892-04012-08	$0.63
Available to order. Add to View Price
#30 SCREW-WASHER (4X12) 93892-04012-18 Superseded by 93892-04012-08	$0.63
Unavailable
#31 CLIP, TUBE (B7) 95002-02079	$1.31
Available to order. Add to View Price
#32 CLIP, TUBE (B8) 95002-02089	$1.13
Available to order. Add to View Price
#33 BULK HOSE, VACUUM (3.5X1000) (3.5X110) 95005-35001-20M	$11.22
Available to order. Add to View Price
#34 BULK HOSE, VACUUM (3.5X1000) (3.5X140) 95005-35001-50M	$15.90
Available to order. Add to View Price
#35 JET (#130) 99101-GHB-1300 Superseded by 99101-MEG-1300	$11.61
Available to order. Add to View Price
#35 JET, MAIN (#120) 99101-GHB-1200 Superseded by 99101-MBZ-1200	$10.56
Available to order. Add to View Price
#36 JET, SLOW (#45) 99103-MA1-0450 Superseded by 99104-KPF-0450	$13.75
Available to order. Add to View Price
#36 JET, SLOW (#45) 99104-KPF-0450	$13.75
Unavailable
#37 JET (#140) 99108-HM7-1400	$15.93
Available to order. Add to View Price
#38 JET (#85) 99112-HC4-0850 Superseded by 99112-HN2-0850	$18.53
Available to order. Add to View Price
#38 JET (#85) 99112-HN2-0850	$18.53
Unavailable
