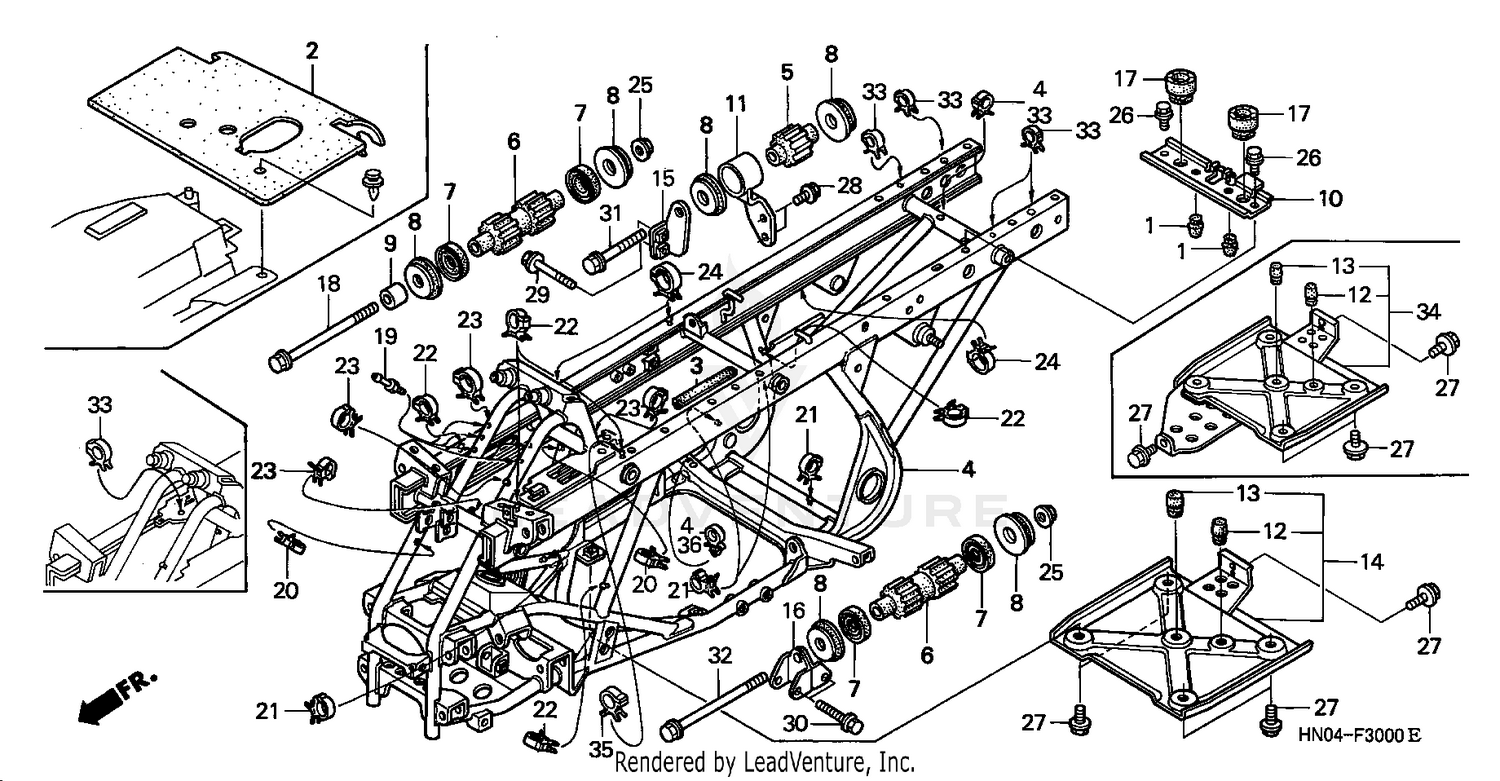

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, FUEL PUMP STOPPER
16704-MT7-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, SNORKEL
17261-HM7-A00
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
TRIM, FUEL TANK
17516-MG8-000
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRAME SET
50100-HN0-305
|
$3,490.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, ENGINE HEAD MOUNTING
50201-HM7-003
|
$32.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER SET, ENGINE MOUNTING (LOWER) (RIGHT AND LEFT SET)
50202-HN2-305
|
$40.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL, ENGINE MOUNTING
50203-HM7-003
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER C, MOUNTING
50204-HM7-003
|
$24.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, ENGINE HANGER
50205-HM8-000
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, BATTERY HOLDER
50311-HM7-000
|
$79.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, HEAD HANGER
50351-HN0-A00
|
$80.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER A, STOPPER
50352-HM5-730
|
$25.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER B, STOPPER
50354-HM5-730
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD ASSY., ENGINE
50360-HN0-A00
|
$51.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, FR. HEAD HANGER
50361-HM7-000
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
HANGER, ENGINE (LOWER)
50363-HM7-000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, SEAT MOUNTING
77207-HA0-000
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, ENGINE HANGER
90103-147-000
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT, BREATHER TUBE
90652-HF7-003
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, CABLE (10MM)
90690-GHB-641
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, CABLE (15MM)
90690-GHB-651
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, CABLE (20MM)
90690-GHB-661
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, CABLE (25MM)
90690-GHB-671
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, CABLE (30MM)
90690-GHB-681
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (10MM)
94050-10000
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X22)
95701-08022-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (8X40)
95701-08040-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X60)
95701-08060-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (10X60)
95701-10060-00
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (10X125)
95801-10125-00
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP, HARNESS
90684-ZA0-601
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP, ENGINE STOP SWITCH CORD
90660-ZA0-600
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
