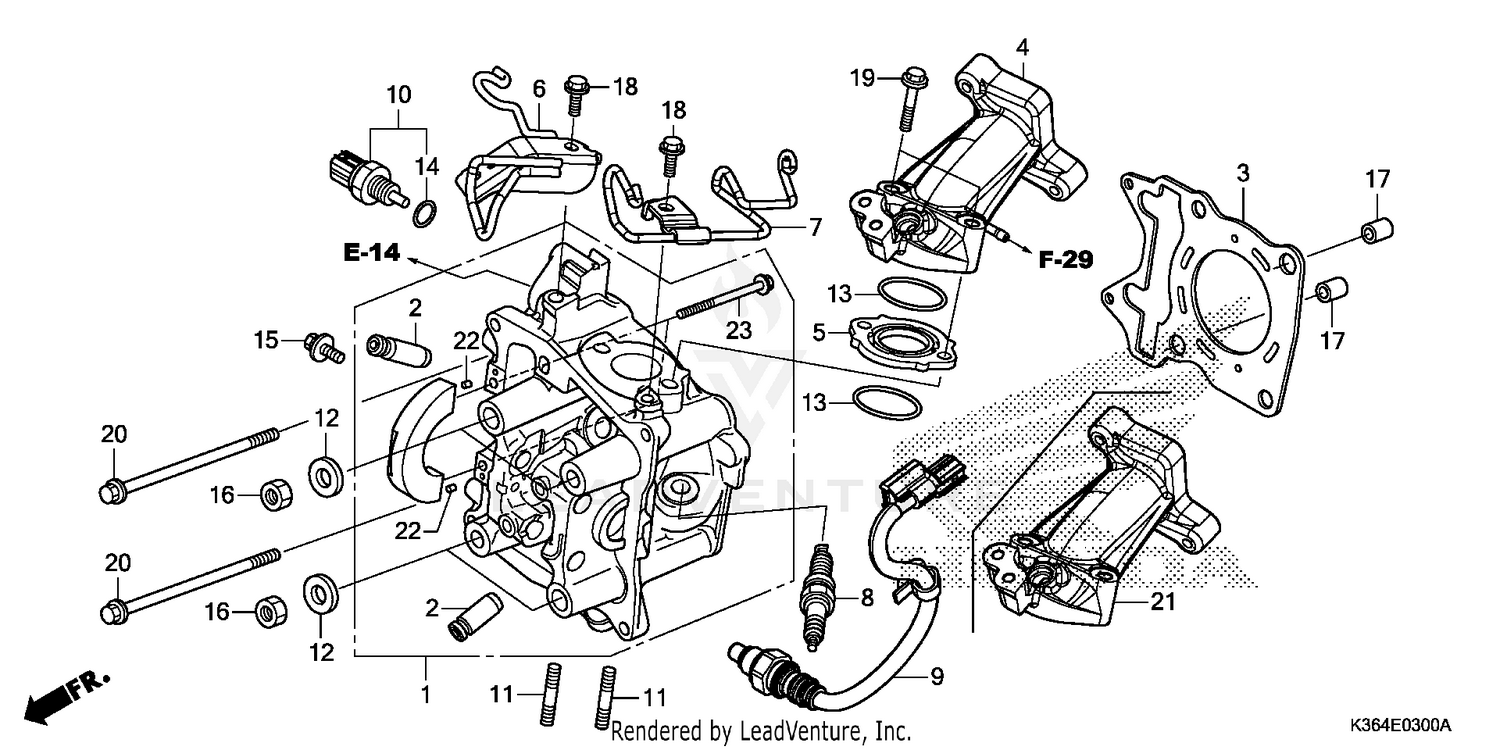

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-KZY-702
|
$160.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-KWN-P00
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-KZY-701
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, INLET
17110-K36-A00
|
$71.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, IN. PIPE
17119-KZY-700
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, HOSE CLAMP
17120-K36-J00
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, BREATHER TUBE
17219-K35-V00
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG (CPR7EA-9) (NGK)
31917-KPH-901
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR, OXYGEN
36532-K35-V01
|
$51.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., WATER TEMPERATURE
37870-KZR-601
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD (7X17)
90004-KGF-910
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (8MM)
90483-KWN-900
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (29X2)
91301-KRJ-901
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (9.5X1.9) (PANASONIC)
91307-PLC-004
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (6X12)
93404-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (8MM)
94030-08280
|
$0.86 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)
95701-06040-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X95)
95701-06095-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL (3X5)
94303-03050
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X80) BOLT, FLANGE (6X50)
96001-06080-00
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
