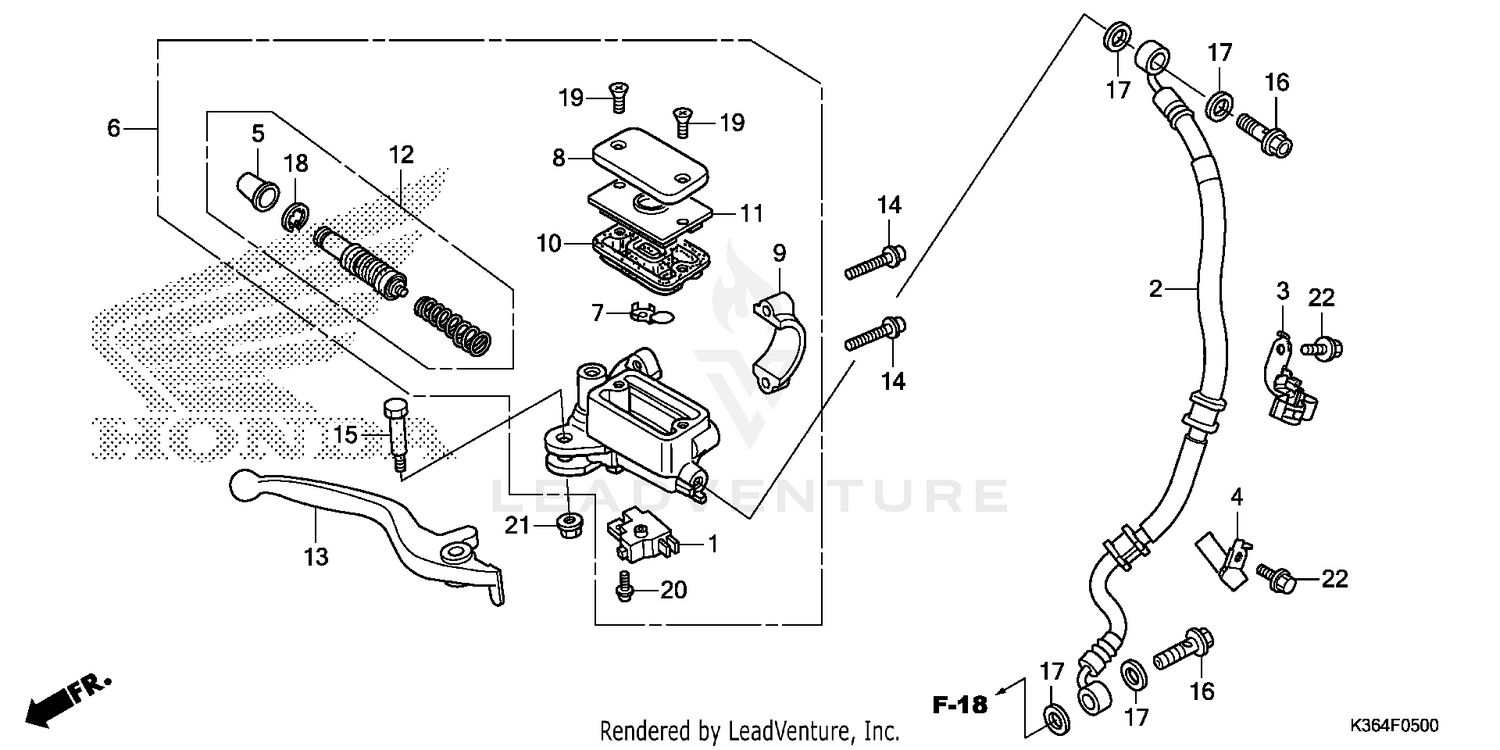

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE
45126-KWN-711
|
$46.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP A, BRAKE HOSE
45155-KWN-710
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP B, BRAKE HOSE
45157-KWN-930
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
45504-410-003
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
45510-K36-305
|
$71.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR
45512-MA6-006
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, MASTER CYLINDER
45513-HA2-006
|
$31.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, MASTER CYLINDER
45517-166-006
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
DIAPHRAGM
45520-GE2-006
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, DIAPHRAGM
45521-K21-901
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
MASTER CYLINDER SET
45530-471-831
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, R. HANDLEBAR (COO)
53175-KWN-315
|
$21.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE SOCKET (6X22)
90101-KWN-900
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HANDLE LEVER PIVOT
90114-KGH-900
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
90651-MA5-671
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.90 | ||
|
Unavailable |
|||
|
#20
SCREW-WASHER (4X12)
93893-04012-07
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.35 | ||
|
Unavailable |
|||
|
#21
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
