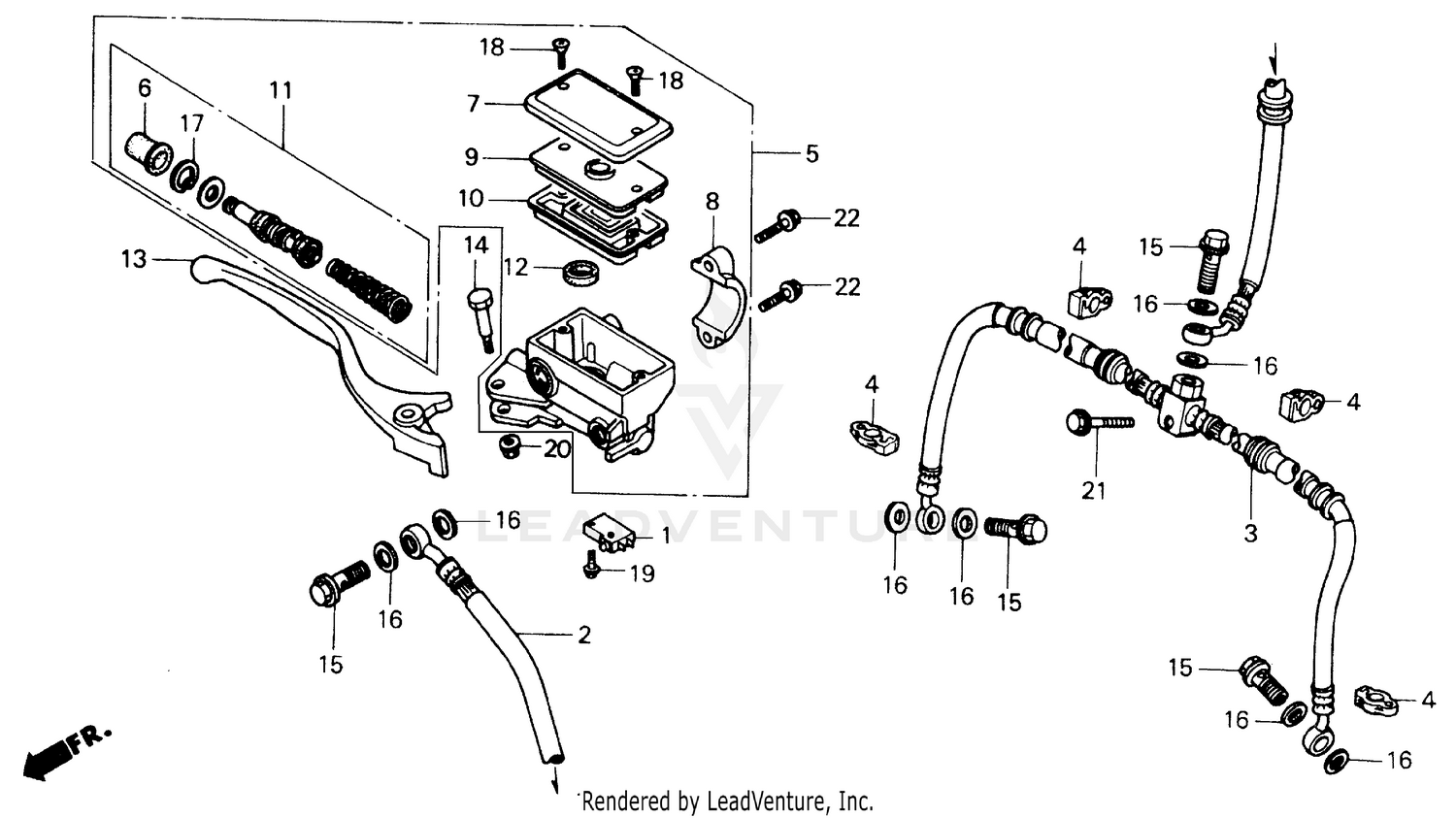

Fw Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
HOSE A, FR. BRAKE (NOT AVAILABLE)
45126-HC5-003
Superseded by 45126-HC5-751
|
$48.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE B, FR. BRAKE (NOT AVAILABLE)
45127-HC5-771
Superseded by 45127-HC5-751
|
$121.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, BRAKE HOSE (NOT AVAILABLE)
45401-HC4-771
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER CYLINDER ASSY., FR. BRAKE (NISSIN) (NA USE ALT:45510-HC5-405)
45500-HC5-006
|
$202.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT
45504-410-003
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, MASTER CYLINDER
45513-KE5-026
|
$48.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, MASTER CYLINDER
45517-MA5-671
|
$33.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DIAPHRAGM
45518-MB4-671
|
$14.06 | ||
|
Available to order. Add to View Price |
|||
|
#10
DIAPHRAGM
45520-MA5-672
|
$21.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
MASTER CYLINDER SET
45530-HC5-006
|
$66.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEPARATOR
46666-961-013
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, R. HANDLE
53175-HA8-680
|
$33.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HANDLE LEVER PIVOT
90114-MA5-671
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL (10X22) (SAGA)
90145-KM3-750
Superseded by 90145-KM3-751
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL (10X22) (SAGA)
90145-KM3-751
|
$12.77 | ||
|
Unavailable |
|||
|
#16
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
90651-MA5-671
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.90 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X25)
95701-06025-07
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
