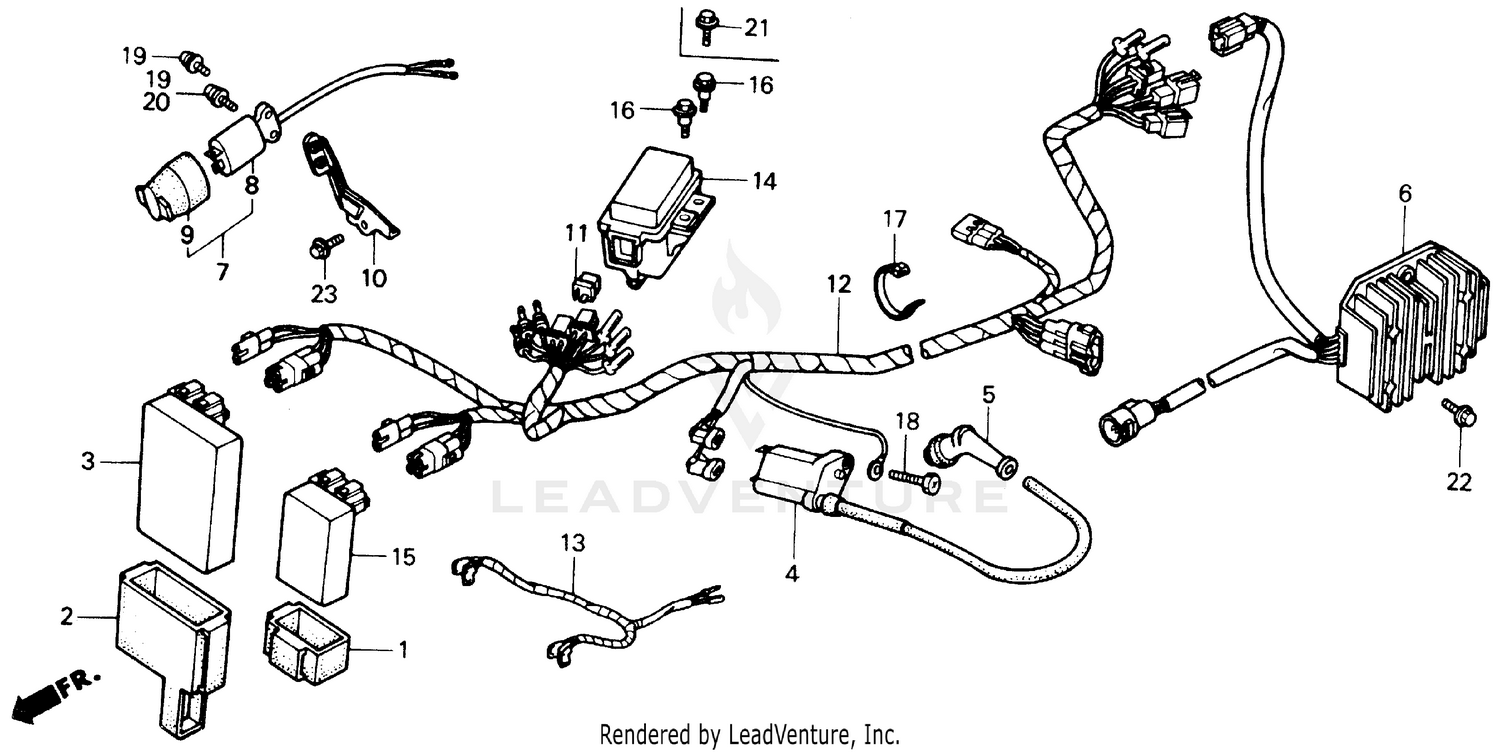

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-GB6-000
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-HA7-670
|
$11.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)
30410-HC4-770
|
$237.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
COIL, IGNITION
30510-GR2-405
|
$86.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
COIL, IGNITION
30510-HC4-000
Superseded by 30510-GR2-405
|
$86.59 | ||
|
Unavailable |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-MA0-163
|
$25.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-965-003
Superseded by 30700-MA0-163
|
$25.87 | ||
|
Unavailable |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-965-013
Superseded by 30700-MA0-163
|
$25.87 | ||
|
Unavailable |
|||
|
#6
RECTIFIER ASSY., REGULATE (NOT AVAILABLE)
31600-HC4-010
|
$250.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
RECEPTACLE ASSY., D.C. (NOT AVAILABLE)
31650-HC4-020
Superseded by 31650-HC4-030
|
$33.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
BODY, RECEPTACLE (NOT AVAILABLE)
31651-969-680
|
$34.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, RECEPTACLE (NOT AVAILABLE)
31652-HA0-680
|
$28.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, D.C. RECEPTACLE (NA USE ALT:31655-HM5-850)
31655-HC4-000
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-008
|
$34.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE HARNESS (NOT AVAILABLE)
32100-HC4-670
|
$100.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOX, CONNECTOR
32300-HC4-670
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
ALARM (NOT AVAILABLE)
38710-HC4-003
|
$168.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6MM)
90116-ME9-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (5X22)
90112-GK8-000
Superseded by 90112-GK8-010
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (5X22)
90112-GK8-010
|
$3.08 | ||
|
Unavailable |
|||
|
#19
SCREW-WASHER (5X22)
93894-05022-07
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-WASHER (5X25)
93894-05025-07
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X16)
95701-06016-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
