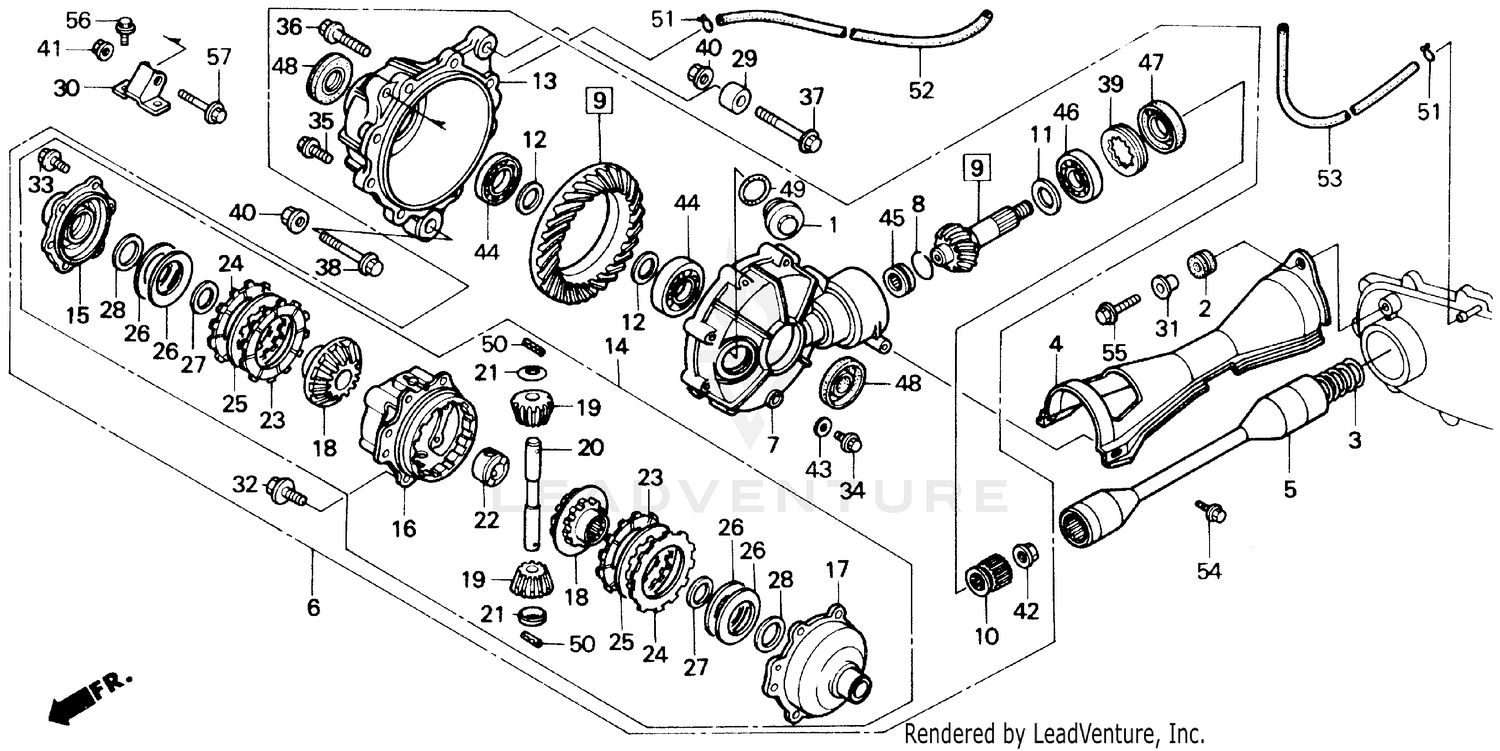

Fw Front Final Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#1
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#1
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#2
RUBBER, AIR CLEANER HOUSING MOUNTING
17245-107-010
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, PROPELLER SHAFT
40215-HC5-000
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, FR. PROPELLER SHAFT (NOT AVAILABLE)
40301-HC5-000
|
$67.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT ASSY., FR. PROPELLER (NOT AVAILABLE)
40400-HC5-000
|
$209.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR ASSY., FR. FINAL (NOT AVAILABLE)
41400-HC5-770
Superseded by 41400-HC5-751
|
$1,235.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE, FR. FINAL GEAR
41401-HC5-770
Superseded by 41401-HC5-771
|
$292.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, STOPPER
41405-HA7-670
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR SET, FINAL (NOT AVAILABLE)
41410-HC5-000
|
$419.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, PINION (NOT AVAILABLE)
41411-HA0-000
|
$78.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM A, PINION GEAR (1.82)
41451-HA0-000
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM B, PINION GEAR (1.88)
41452-HA0-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM C, PINION GEAR (1.94)
41453-HA0-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM D, PINION GEAR (2.00)
41454-HA0-000
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM E, PINION GEAR (2.06)
41455-HA0-000
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM F, PINION GEAR (2.12)
41456-HA0-000
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM G, PINION GEAR (2.18)
41457-HA0-000
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM A, DIFFERENTIAL CASE (0.50)
41631-HC5-000
|
$13.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM B, DIFFERENTIAL CASE (0.55)
41632-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM C, DIFFERENTIAL CASE (0.60)
41633-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM D, DIFFERENTIAL CASE (0.65)
41634-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM E, DIFFERENTIAL CASE (0.70)
41635-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM F, DIFFERENTIAL CASE (0.75)
41636-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM G, DIFFERENTIAL CASE (0.80)
41637-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM H, DIFFERENTIAL CASE (0.85)
41638-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM I, DIFFERENTIAL CASE (0.90)
41639-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM J, DIFFERENTIAL CASE (0.95)
41640-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM K, DIFFERENTIAL CASE (1.00)
41641-HC5-000
|
$13.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM L, DIFFERENTIAL CASE (1.05)
41642-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM M, DIFFERENTIAL CASE (1.10)
41643-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM N, DIFFERENTIAL CASE (1.15)
41644-HC5-000
|
$13.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM O, DIFFERENTIAL CASE (1.20)
41645-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM P, DIFFERENTIAL CASE (1.25)
41646-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM Q, DIFFERENTIAL CASE (1.30)
41647-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM R, DIFFERENTIAL CASE (1.35)
41648-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM S, DIFFERENTIAL CASE (1.40)
41649-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM T, DIFFERENTIAL CASE (1.45)
41650-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM U, DIFFERENTIAL CASE (1.50)
41651-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM V, DIFFERENTIAL CASE (1.55)
41652-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM W, DIFFERENTIAL CASE (1.60)
41653-HC5-000
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, FR. FINAL GEAR CASE (NOT AVAILABLE)
42321-HC5-770
|
$236.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIFFERENTIAL ASSY. (SOURCE: VINTAGE PARTS INC.)
42400-HC5-020
|
$1,013.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, R. DIFFERENTIAL CASE (NOT AVAILABLE)
42411-HC5-010
|
$87.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
CASE, DIFFERENTIAL (SOURCE: VINTAGE PARTS INC.)
42421-HC5-000
|
$270.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, L. DIFFERENTIAL CASE (SOURCE: VINTAGE PARTS INC.)
42422-HC5-010
|
$132.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, DIFFERENTIAL SIDE
42431-HC5-000
|
$109.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
PINION, DIFFERENTIAL (10T) (SOURCE: VINTAGE PARTS INC.)
42433-HC5-000
|
$40.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT, DIFFERENTIAL PINION (NOT AVAILABLE)
42434-HA7-670
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, DIFFERENTIAL PINION SIDE (SOURCE: VINTAGE PARTS INC.)
42435-HA7-671
|
$10.61 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR, DIFFERENTIAL CENTER (NOT AVAILABLE)
42436-HA7-670
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
DISK A, DIFFERENTIAL CLUTCH FRICTION
42532-HA7-671
|
$21.92 | ||
|
Available to order. Add to View Price |
|||
|
#24
DISK B, DIFFERENTIAL CLUTCH FRICTION
42533-HA7-671
|
$20.76 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, DIFFERENTIAL CLUTCH
42534-HA7-671
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, DIFFERENTIAL CLUTCH CONED
42535-HC5-000
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (32X26X0.6) (NOT AVAILABLE)
42538-HA7-771
|
$8.66 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAT A, DIFFERENTIAL CLUTCH SPRING (1.00) (SOURCE: VINTAGE PARTS INC.)
42541-HA7-671
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAT B, DIFFERENTIAL CLUTCH SPRING (1.20) (SOURCE: VINTAGE PARTS INC.)
42542-HA7-671
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAT C, DIFFERENTIAL CLUTCH SPRING (1.40) (SOURCE: VINTAGE PARTS INC.)
42543-HA7-671
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAT D, DIFFERENTIAL CLUTCH SPRING (1.60) (SOURCE: VINTAGE PARTS INC.)
42544-HA7-671
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAT E, DIFFERENTIAL CLUTCH SPRING (1.80) (SOURCE: VINTAGE PARTS INC.)
42545-HA7-671
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR, FR. ENGINE HANGER
50304-KS3-900
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET, FR. GEAR CASE (NOT AVAILABLE)
50350-HC5-000
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR, FR. FENDER (WHITE)
61104-428-010
|
$5.08 | ||
|
Unavailable |
|||
|
#31
COLLAR, FR. FENDER (BLACK)
61104-428-730
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, UBS (8X17)
90101-HA7-670
Superseded by 90101-HN2-680
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, UBS (8X17)
90101-HN2-680
|
$4.69 | ||
|
Unavailable |
|||
|
#33
BOLT, TORX (8X14)
90105-HC5-000
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, SEALING (8MM)
90109-371-000
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (8X27)
90133-MB0-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (10X35)
90134-HA0-000
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (10X62)
90151-HC5-000
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (10X48)
90154-HC5-000
|
$9.61 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, LOCK (60MM)
90244-HA0-000
|
$41.38 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-KF0-003
Superseded by 90309-428-731
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.02 | ||
|
Unavailable |
|||
|
#42
NUT, HEX. (16MM)
90381-HA0-000
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#43
GASKET (8MM)
90471-580-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING, RADIAL BALL (29X52X12) (NTN)
91052-HC5-003
|
$39.62 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING, RADIAL BALL (29X52X12) (KOYO)
91052-HC5-004
|
$39.62 | ||
|
Available to order. Add to View Price |
|||
|
#45
BEARING, NEEDLE (13X25.5X13) (TOYO) (NOT AVAILABLE)
91053-HA7-772
Superseded by 91053-HC5-003
|
$31.67 | ||
|
Available to order. Add to View Price |
|||
|
#45
BEARING, NEEDLE (13X25.5X13) (TOYO) (NOT AVAILABLE)
91053-HC5-003
|
$31.67 | ||
|
Unavailable |
|||
|
#46
BEARING, RADIAL BALL (22X56X16)
91063-HC4-771
|
$99.19 | ||
|
Available to order. Add to View Price |
|||
|
#47
OIL SEAL (38X64X11) (KOYO)
91251-HA0-013
Superseded by 91251-HC5-005
|
$19.51 | ||
|
Available to order. Add to View Price |
|||
|
#47
OIL SEAL (38X64X11) (KOYO)
91251-HC5-005
|
$19.51 | ||
|
Unavailable |
|||
|
#48
OIL SEAL (22X48X7) (ARAI)
91252-HC5-003
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#49
O-RING (30.8MM)
91302-001-020
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIN, SPRING (4X22)
94305-40222
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLIP, TUBE (B7)
95002-02070
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#52
BULK HOSE, VACUUM (3.5X1000) (3.5X700)
95005-35001-20M
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#53
BULK HOSE, VACUUM (3.5X1000) (3.5X765)
95005-35001-20M
|
$11.22 | ||
|
Unavailable |
|||
|
#54
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, FLANGE (6X25)
95701-06025-08
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, FLANGE (8X30)
95701-08030-00
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
