1997 Kawasaki ELIMINATOR 600 Front Bevel Gear OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

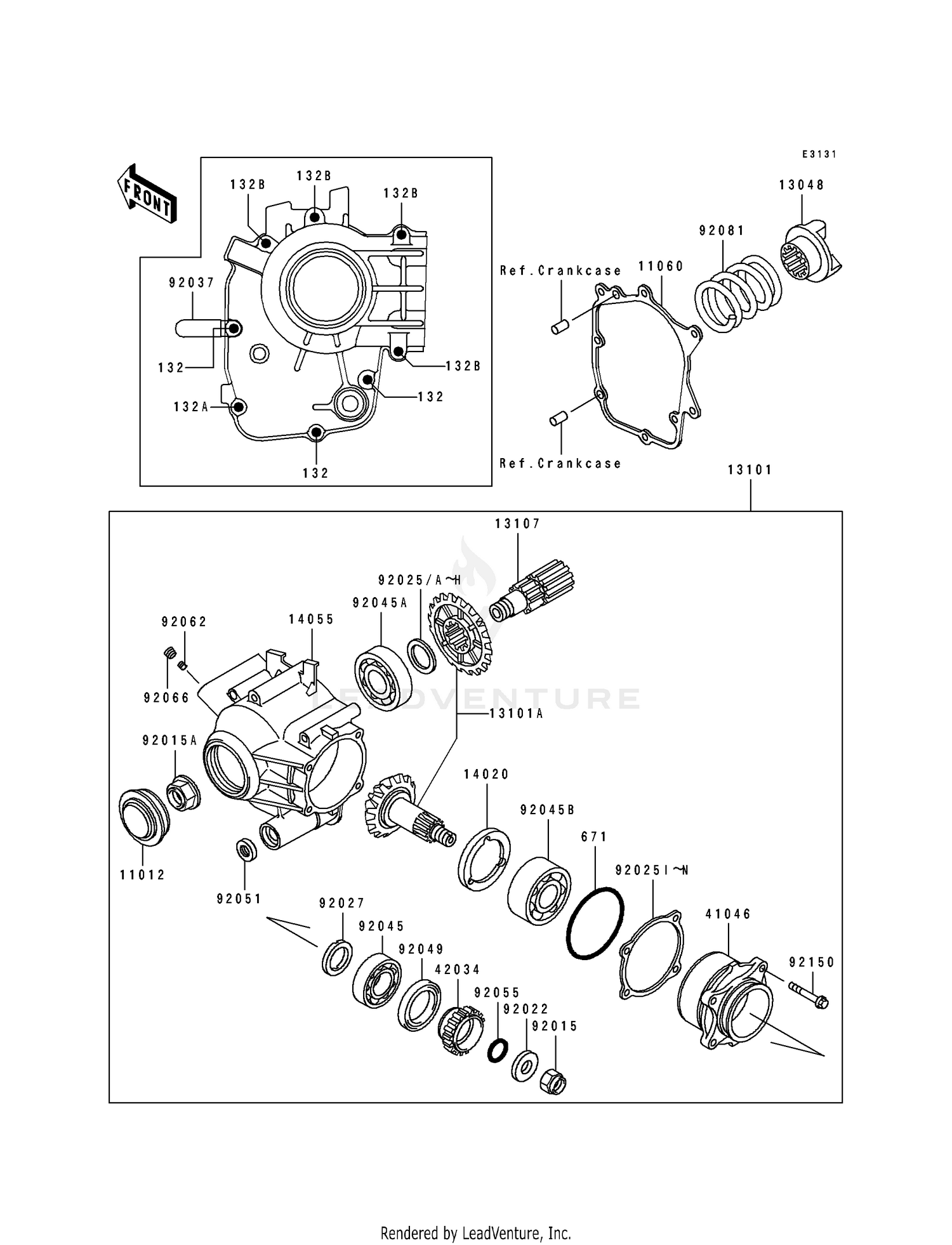

Front Bevel Gear Diagram

Item MSRP Qty
#11012 CAP,FRONT BEVEL
11012-1672
 $40.90
Available to order.
Add to View Price
#11060 GASKET,BEVEL GEAR CAS
11060-1152
 $14.57
Available to order.
Add to View Price
#13048 CAM-DAMPER
13048-1068
 $86.88
Available to order.
Add to View Price
#13101 GEAR-ASSY,FRONT BEVEL
13101-1229
 $1,810.15
Available to order.
Add to View Price
#13101A GEAR-ASSY,FRONT BEVEL
13101-5060
 $1,117.11
Available to order.
Add to View Price
#13107 SHAFT,BEVEL GEAR
13107-1178
 $119.78
Available to order.
Add to View Price
#14020 RETAINER
14020-1065
 $44.33
Available to order.
Add to View Price
#14055 CASE-GEAR,FRONT BEVEL
14055-1118
 $581.87
Available to order.
Add to View Price
#41046 HOUSING-BEARING,FRONT
41046-1096
 $164.26
Available to order.
Add to View Price
#42034 COUPLING,FR DRIVEN
42034-1091
 $122.18
Available to order.
Add to View Price
#92015 NUT,14M/M
92015-1067
 $9.54
Available to order.
Add to View Price
#92015A NUT
92015-1543
 $18.96
Available to order.
Add to View Price
#92022 WASHER,PLAIN,5X14.1
92022-1115
 $11.49
Available to order.
Add to View Price
#92025 SHIM,25.3X36X0.15
92025-1688
 $8.28
Available to order.
Add to View Price
#92025A SHIM,25.3X36X0.50
92025-1689
 $8.28
Available to order.
Add to View Price
#92025B SHIM,25.3X36X0.60
92025-1690
 $8.28
Available to order.
Add to View Price
#92025C SHIM,25.3X36X0.70
92025-1691
 $8.28
Available to order.
Add to View Price
#92025D SHIM,25.3X36X0.80
92025-1692
 $8.28
Available to order.
Add to View Price
#92025E SHIM,25.3X36X0.90
92025-1693
 $8.28
Available to order.
Add to View Price
#92025F SHIM,25.3X36X1.00
92025-1694
 $8.28
Available to order.
Add to View Price
#92025G SHIM,25.3X36X1.10
92025-1695
 $8.28
Available to order.
Add to View Price
#92025H SHIM,25.3X36X1.20
92025-1696
 $8.28
Available to order.
Add to View Price
#92025I SHIM,T=0.10
92025-1772
 $7.96
Available to order.
Add to View Price
#92025J SHIM,T=0.15
92025-1773
 $7.96
Available to order.
Add to View Price
#92025K SHIM,T=0.70
92025-1774
 $8.75
Available to order.
Add to View Price
#92025L SHIM,T=0.80
92025-1775
 $8.75
Available to order.
Add to View Price
#92025M SHIM,T=1.0
92025-1776
 $8.79
Available to order.
Add to View Price
#92025N SHIM,T=1.2
92025-1777
 $8.75
Available to order.
Add to View Price
#92027 COLLAR
92027-1994
 $19.66
Available to order.
Add to View Price
#92037 CLAMP,L=45
92037-1539
 $4.84
Available to order.
Add to View Price
#92045 BEARING-BALL,6205
92045-1115
 $24.95
Available to order.
Add to View Price
#92045A BEARING-BALL,TMB305
92045-1137
 $47.67
Available to order.
Add to View Price
#92045B BEARING-BALL,5305SH2C
92045-1147
 $94.61
Available to order.
Add to View Price
#92049 SEAL-OIL,TC35527
92049-1038
 $17.31
Available to order.
Add to View Price
#92051 SEAL-OIL,TB13225.5
92051-005
 $7.47
Available to order.
Add to View Price
#92055 RING-O,ID=18.64
92055-1044
 $4.63
Available to order.
Add to View Price
#92062 NOZZLE,6X8,BLACK
92062-1079
 $8.28
Available to order.
Add to View Price
#92066 PLUG,PT1/8X7
92066-1227
 $5.71
Available to order.
Add to View Price
#92081 SPRING,CAM DAMPER
92081-1981
 $21.24
Available to order.
Add to View Price
#92150 BOLT,6X25
92150-1777
 $4.00
Available to order.
Add to View Price
#132 BOLT-FLANGED-SMALL
132E0625
 $1.10
Available to order.
Add to View Price
#132A BOLT,6X40
132E0640
Superseded by 92002-1657
 $6.14
Available to order.
Add to View Price
#132B BOLT-FLANGED-SMALL
132E0685
 $4.45
Available to order.
Add to View Price
#671 0 RING,70MM
671B2570
 $7.36
Available to order.
Add to View Price
