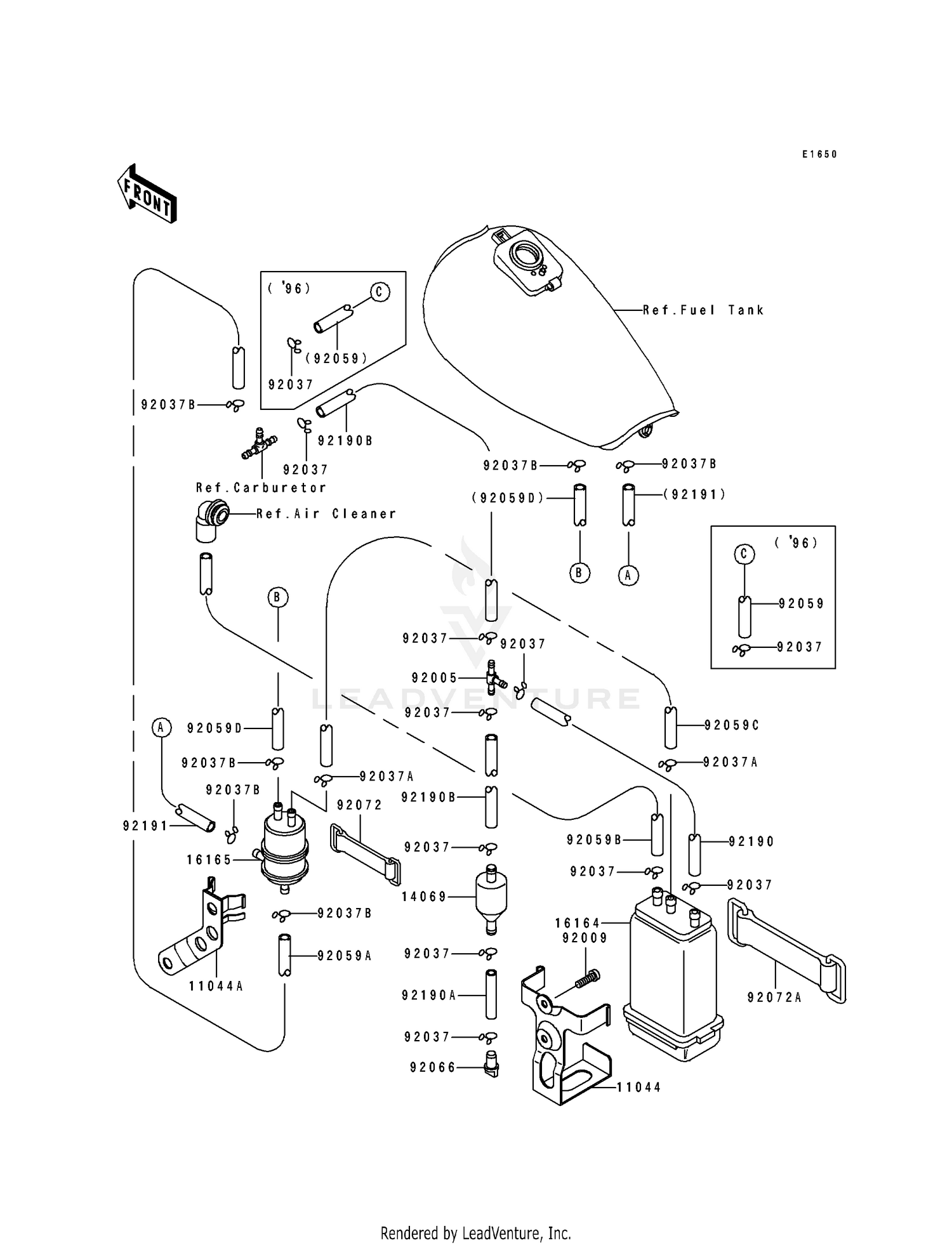

Fuel Evaporative System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11044
BRACKET,CANISTER
11044-1876
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#11044A
BRACKET,SEPARATOR
11044-1877
|
$15.56 | ||
|
Available to order. Add to View Price |
|||
|
#14069
BREATHER
14069-1051
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#16164
CANISTER
16164-1052
|
$125.78 | ||
|
Available to order. Add to View Price |
|||
|
#16165
SEPARATOR
16165-1001
|
$86.53 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,T-TYPE
92005-1119
Superseded by 92005-1135
|
$23.74 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X12
92009-1261
Superseded by 92172-0003
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HOSE
92037-1104
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP
92037-1712
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,4X9X935,WHITE
92059-1574
Superseded by 92059-1916
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,7X12X1250,GREEN
92059-1710
Superseded by 92190-1443
|
$39.55 | ||
|
Available to order. Add to View Price |
|||
|
#92059C
TUBE,5X10X1100,RED
92059-1711
Superseded by 92059-1870
|
$22.19 | ||
|
Available to order. Add to View Price |
|||
|
#92059D
TUBE,5X10X1000,BLUE
92059-1801
Superseded by 92190-1007
|
$30.92 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DRAIN
92066-1211
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=50
92072-066
Superseded by 92072-1419
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=100
92072-071
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,7X12X700,YELLOW
92190-1141
Superseded by 92059-1680
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#92190A
TUBE,7X12X700,YELLOW
92190-1200
Superseded by 92059-1680
|
$12.50 | ||
|
Unavailable |
|||
|
#92190B
TUBE,7X12X700,YELLOW
92190-1201
Superseded by 92059-1680
|
$12.50 | ||
|
Unavailable |
|||
|
#92191
TUBE
92191-1073
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
