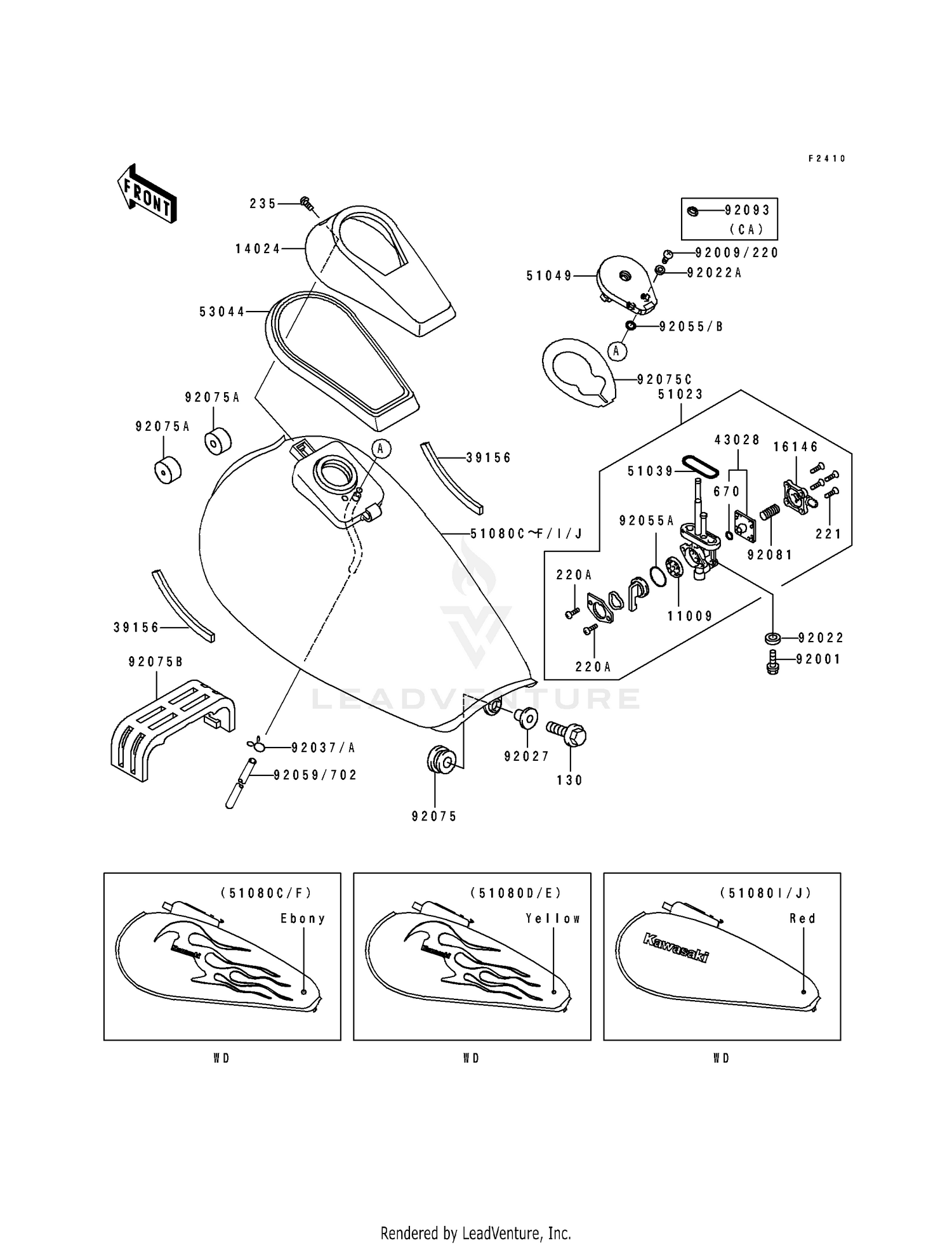

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
PACKING
11009-1188
Superseded by 43049-1103
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,FUEL TANK CAP,E
14024-1522-H8
|
$98.40 | ||
|
Available to order. Add to View Price |
|||
|
#16146
COVER-ASSY,TAP DIAPHR
16146-1010
|
$24.41 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,FUEL TANK
39156-1425
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM VALVE ASSY
43028-1021
|
$29.40 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1157
Superseded by 51023-1378
|
$106.01 | ||
|
Available to order. Add to View Price |
|||
|
#51039
O RING
51039-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1088
Superseded by 51049-1142
|
$105.76 | ||
|
Available to order. Add to View Price |
|||
|
#51080I
TANK-COMP-FUEL,F.RED
51080-5330-B1
|
$947.55 | ||
|
Available to order. Add to View Price |
|||
|
#51080J
TANK-COMP-FUEL,F.RED
51080-5331-B1
|
$992.92 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,FUEL TANK CAP CO
53044-1197
|
$39.76 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1760
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.1X10X1.0
92022-1977
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=14.1
92027-1920
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1023
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1085
Superseded by 92055-3722
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-1552
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE
92059-1731
|
$24.17 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1057
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,FUEL TANK
92075-125
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,FUEL TANK,CNT
92075-1848
|
$26.78 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER,FUEL TANK CAP
92075-1970
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,DIAPHRAGM VALV
92081-1240
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130B0625
Superseded by 130AA0625
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220D0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW PAN HEAD 3X8
220E0308
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,4X14
221B0414
Superseded by 221AA0414
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#235
SCREW-PAN-WP-CROS
235C0510
Superseded by 235AB0510
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,4MM
670B1504
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,6X9X750
702A06750
|
$21.19 | ||
|
Available to order. Add to View Price |
|||
