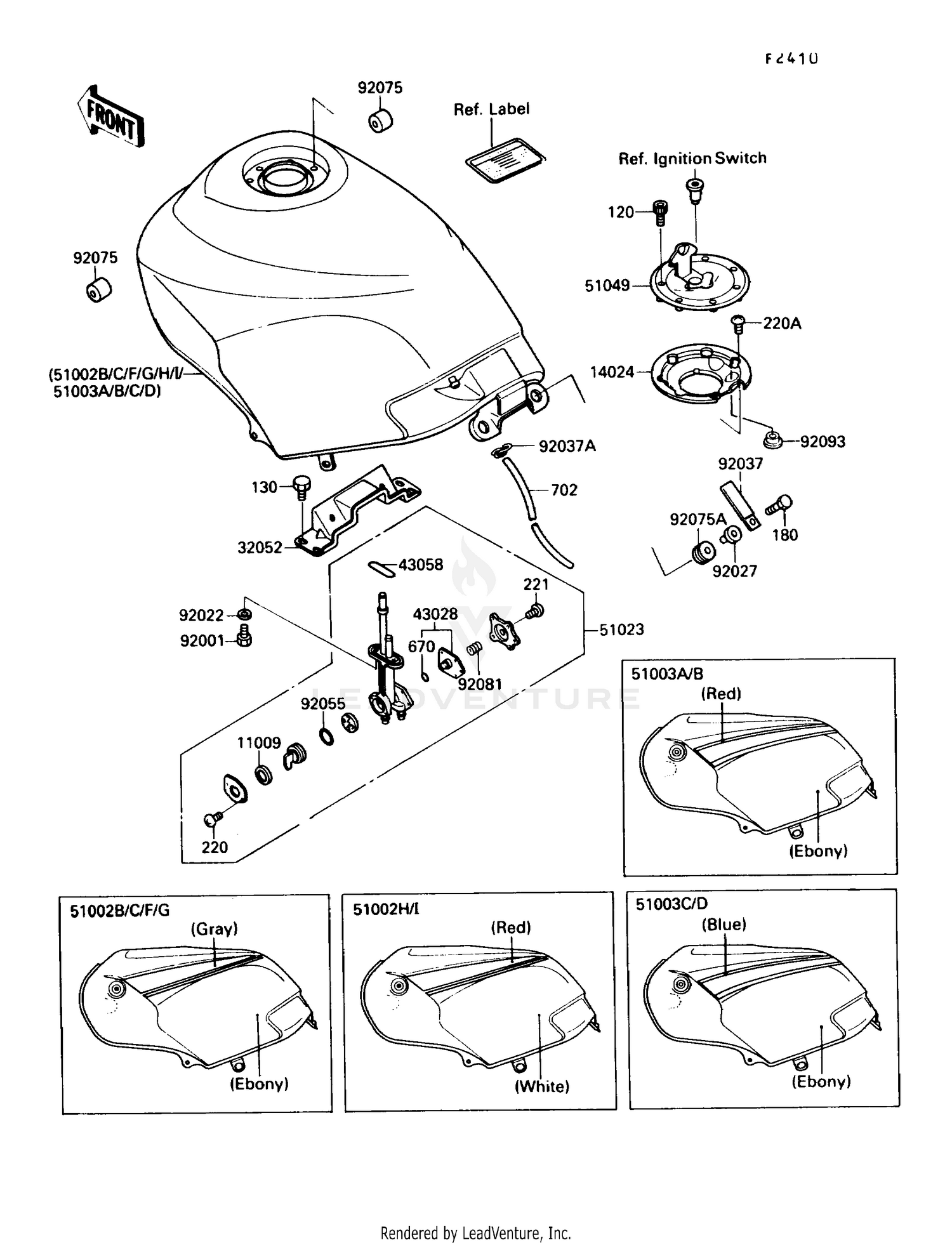

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
PACKING
11009-1188
Superseded by 43049-1103
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,TANK CAP
14025-1913
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK,RR
32052-1254
|
$28.55 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,TAP
43028-1068
|
$44.36 | ||
|
Available to order. Add to View Price |
|||
|
#43058
O RING
51039-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#51002B
TANK-COMP-FUEL,EBONY
51002-5316-H8
Superseded by 51002-5468-H8
|
$979.55 | ||
|
Available to order. Add to View Price |
|||
|
#51002C
TANK-COMP-FUEL,EBONY
51002-5372-H8
Superseded by 51002-5469-H8
|
$623.15 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1139
Superseded by 51023-1393
|
$124.39 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1079
Superseded by 51049-0022
|
$127.71 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1712
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1085
Superseded by 92055-3722
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,FUEL TANK,FR
92075-1115
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,DIAPHRAGM VALV
92081-1240
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X10
130B0610
Superseded by 130AA0610
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#180
BOLT-UPSET-WS,6X25
180D0625
Superseded by 180AA0625
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220C0308
Superseded by 220AB0308
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X8
220C0508
Superseded by 220AB0508
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,4X14
221B0414
Superseded by 221AA0414
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,4MM
670B1504
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,7X10X800
702A071000
Superseded by 702A07800
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
