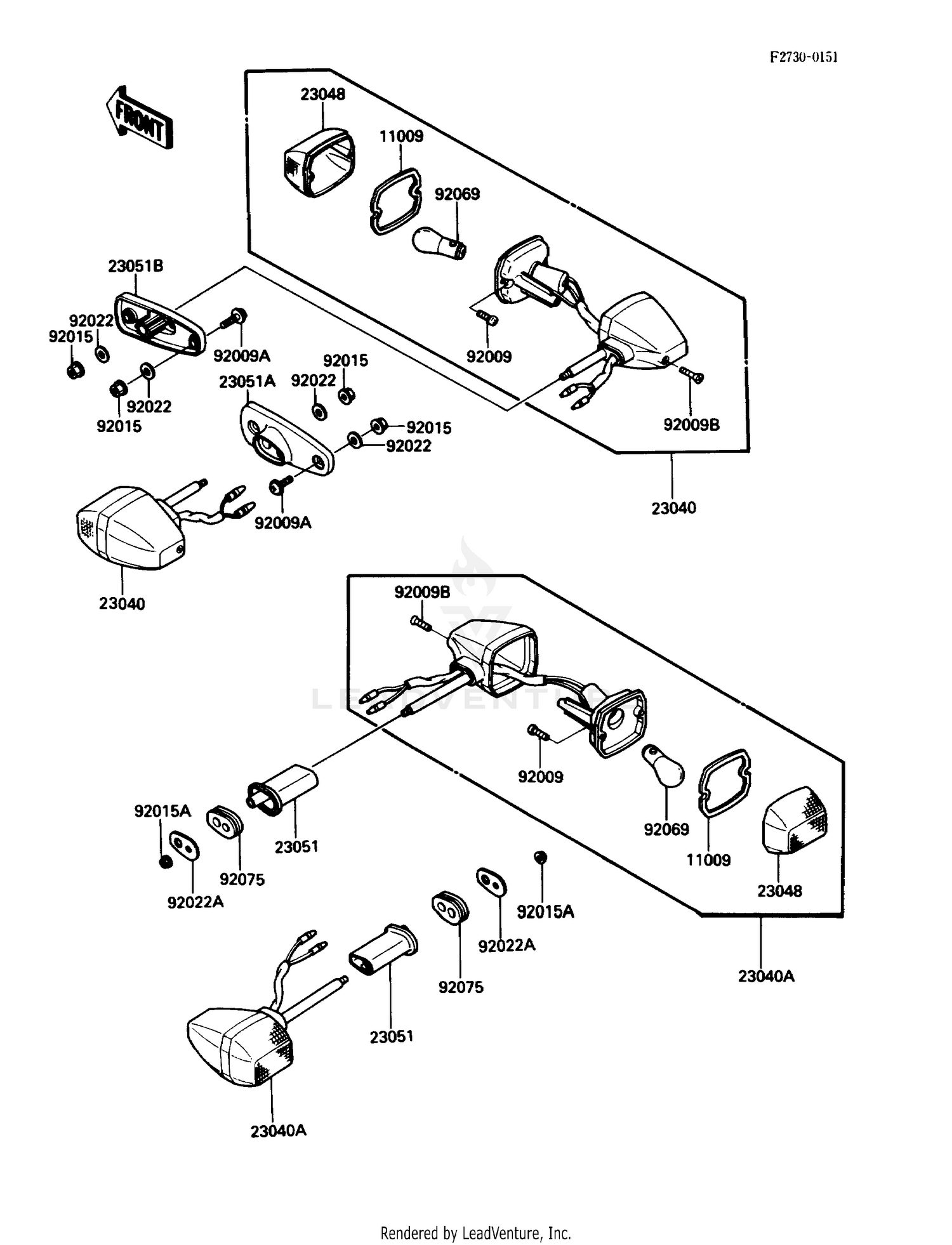

Turn Signals Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,SIGNAL LAMP
11009-1402
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#23040
LAMP-SIGNAL-FR
23040-1105
Superseded by 23040-1116
|
$66.42 | ||
|
Available to order. Add to View Price |
|||
|
#23040A
LAMP-SIGNAL,RR
23040-1195
|
$57.83 | ||
|
Available to order. Add to View Price |
|||
|
#23048
LENS-SIGNAL LAMP
23048-1054
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#23051
BRACKET-SIGNAL LAMP
23051-1164
Superseded by 23051-1248
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#23051A
BRACKET-SIGNAL LAMP,F
23051-1199
|
$39.14 | ||
|
Available to order. Add to View Price |
|||
|
#23051B
BRACKET-SIGNAL LAMP,F
23051-1200
|
$39.14 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,3X16
92009-1115
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X18
92009-1181
Superseded by 92172-0002
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,TAPPING,4X20
92009-1304
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1237
Superseded by 92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6,BLACK
92022-1346
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,SIGNAL LAMP
92022-1672
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 32CP(23W)
92069-055
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SIGNAL LAMP
92075-1698
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
